4T-368A/362A NTN

26,84 ex VAT
€ 32,47 in VAT
€ 32,47 in VAT
26,84 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

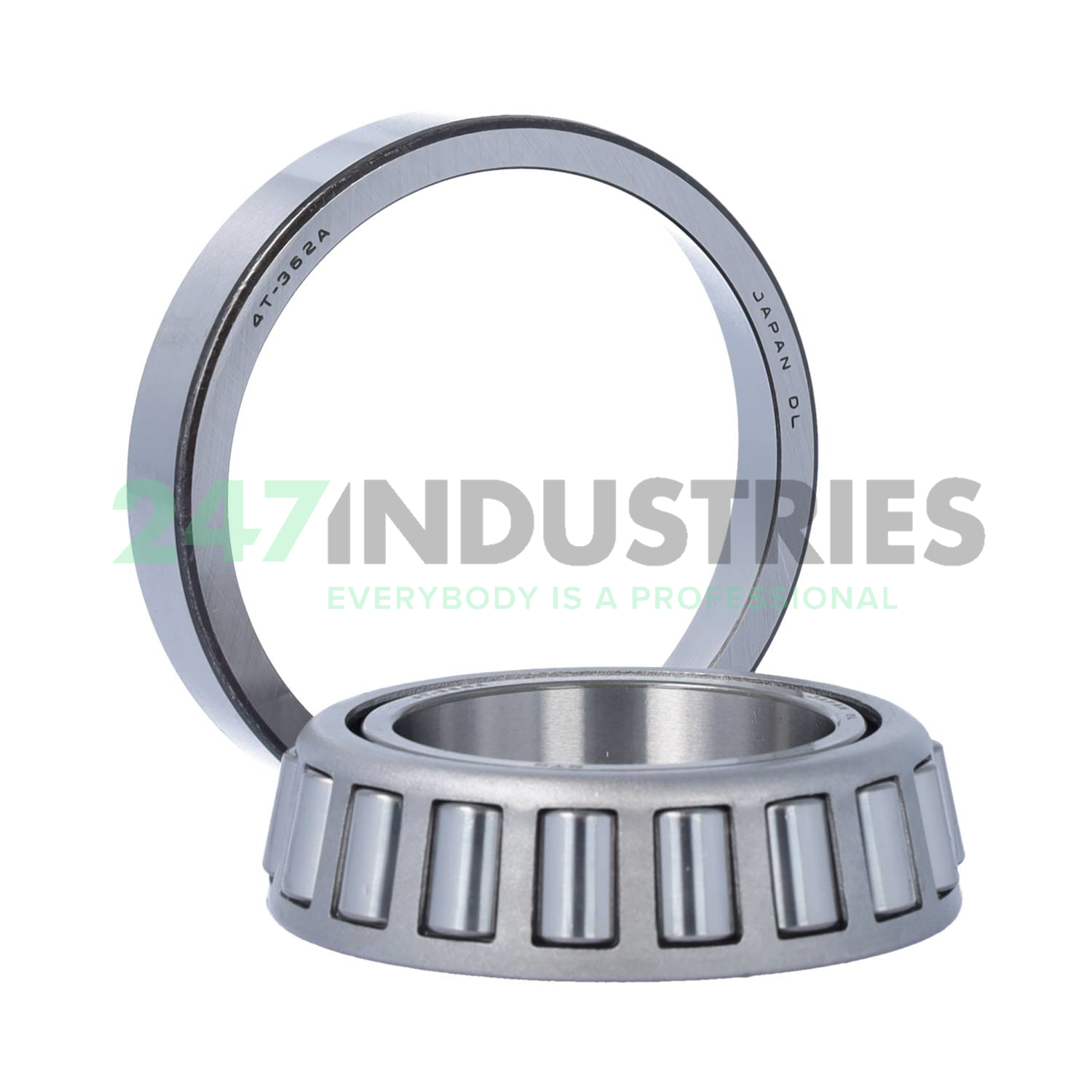

4T-368A/362A NTN

Single-row tapered roller bearing

Stock
5 pcs in stock and ready for shipment
Brand NTN
Article number 4T-368A/362A NTN
Inside diameter 50,8mm
Outside diameter 88,9mm
Width 20,64mm
Product description

The 4T-368A/362A NTN is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.

The 4T-368A/362A NTN is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.

Help with this product

Similar to: 4T-368A/362A NTN

Product
Dimensions/Properties
Stock
Price ex VAT

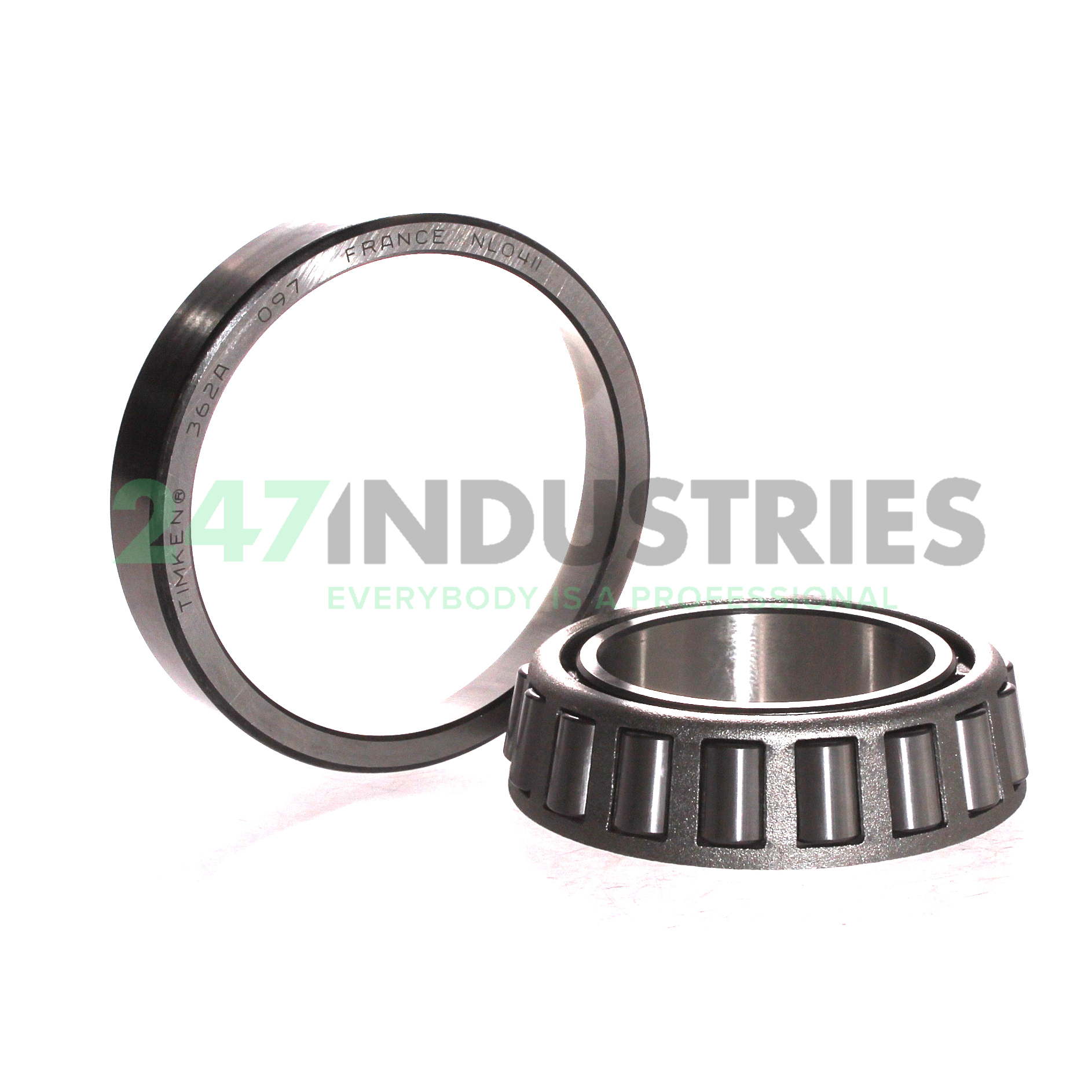

368A/362A Timken
368A/362A Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)
74,33 ex VAT
  • Inside diameter 50,8mm
  • Outside diameter 88,9mm
  • Width 20,64mm
368A/362A Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)

30 pcs
74,33 ex VAT

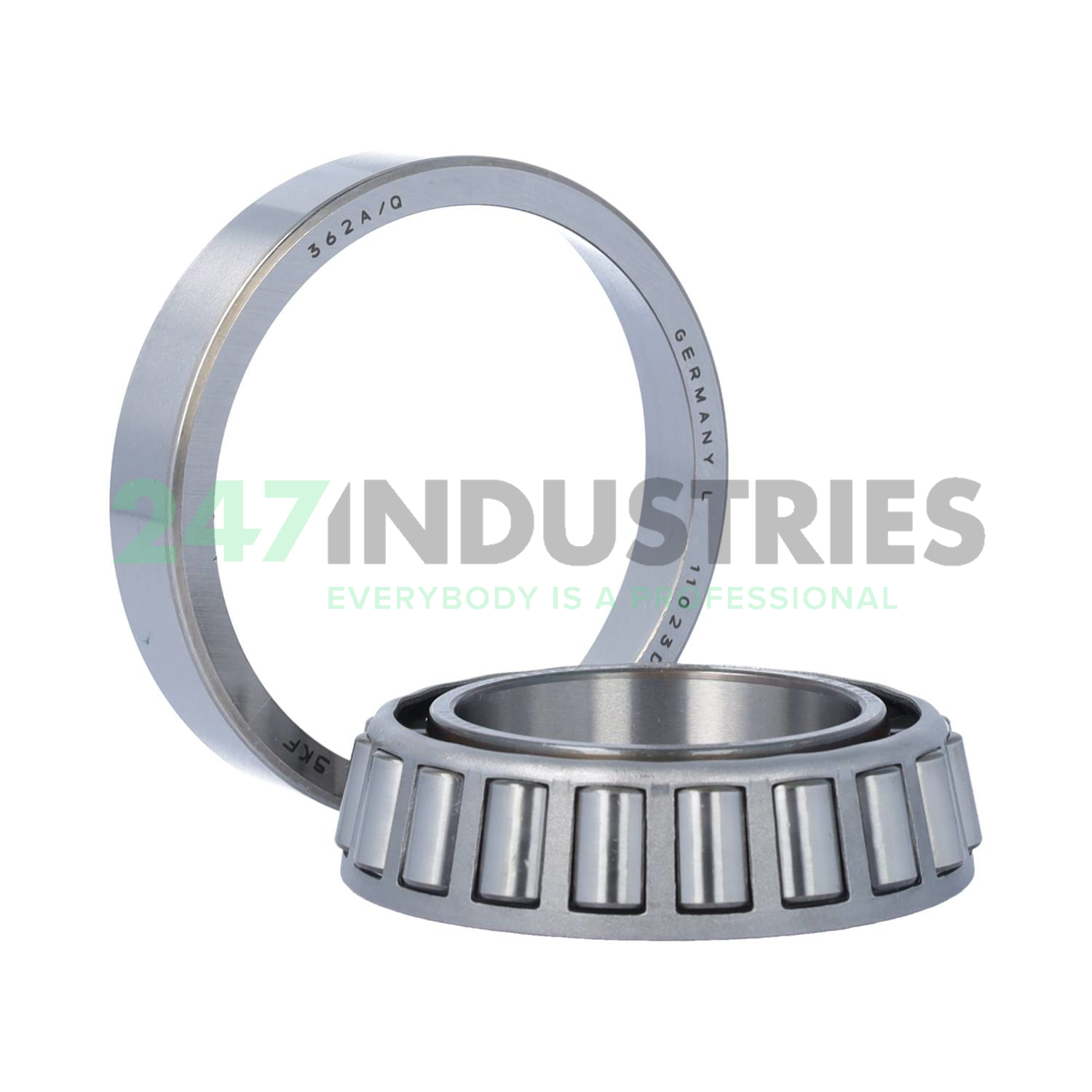

368A/362A/Q SKF
368A/362A/Q SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)
80,73 ex VAT
  • Inside diameter 50,8mm
  • Outside diameter 88,9mm
  • Width 20,64mm
368A/362A/Q SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)

1 pc
80,73 ex VAT

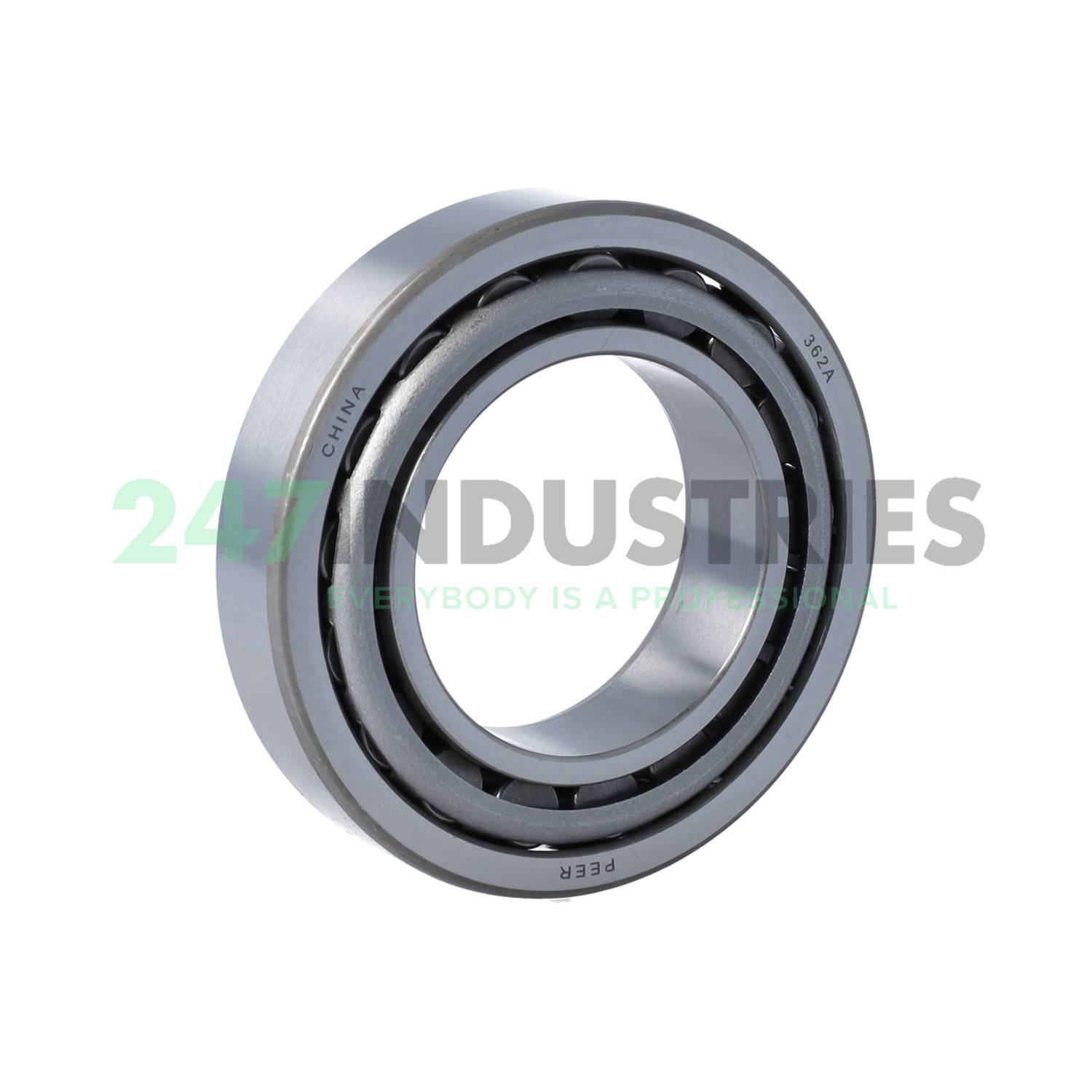

368A-362A Peer
368A-362A Peer
Guaranteed same day shipment on orders placed before 18:00h (CET)
21,23 ex VAT
  • Inside diameter 50,80mm
  • Outside diameter 88,90mm
  • Width 20,64mm
368A-362A Peer
Guaranteed same day shipment on orders placed before 18:00h (CET)

3 pcs
21,23 ex VAT

Product specifications

All dimensions

  1. Inner (d) MM 50,8
  2. Outer (D) MM 88,9
  3. Width (B) MM 20,64
  4. Inner (d) Inch 2
  5. Outer (D) Inch 3.5
  6. Width (B) Inch 0.8125

Technical details

  1. Availability 5 pcs
  2. Brand NTN
  3. Item number 4T-368A/362A NTN
  4. EAN 4547359531824
  5. Category Tapered Roller Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 0.5

Product Properties

  1. Precision Standard Precision
