4T-09074 NTN

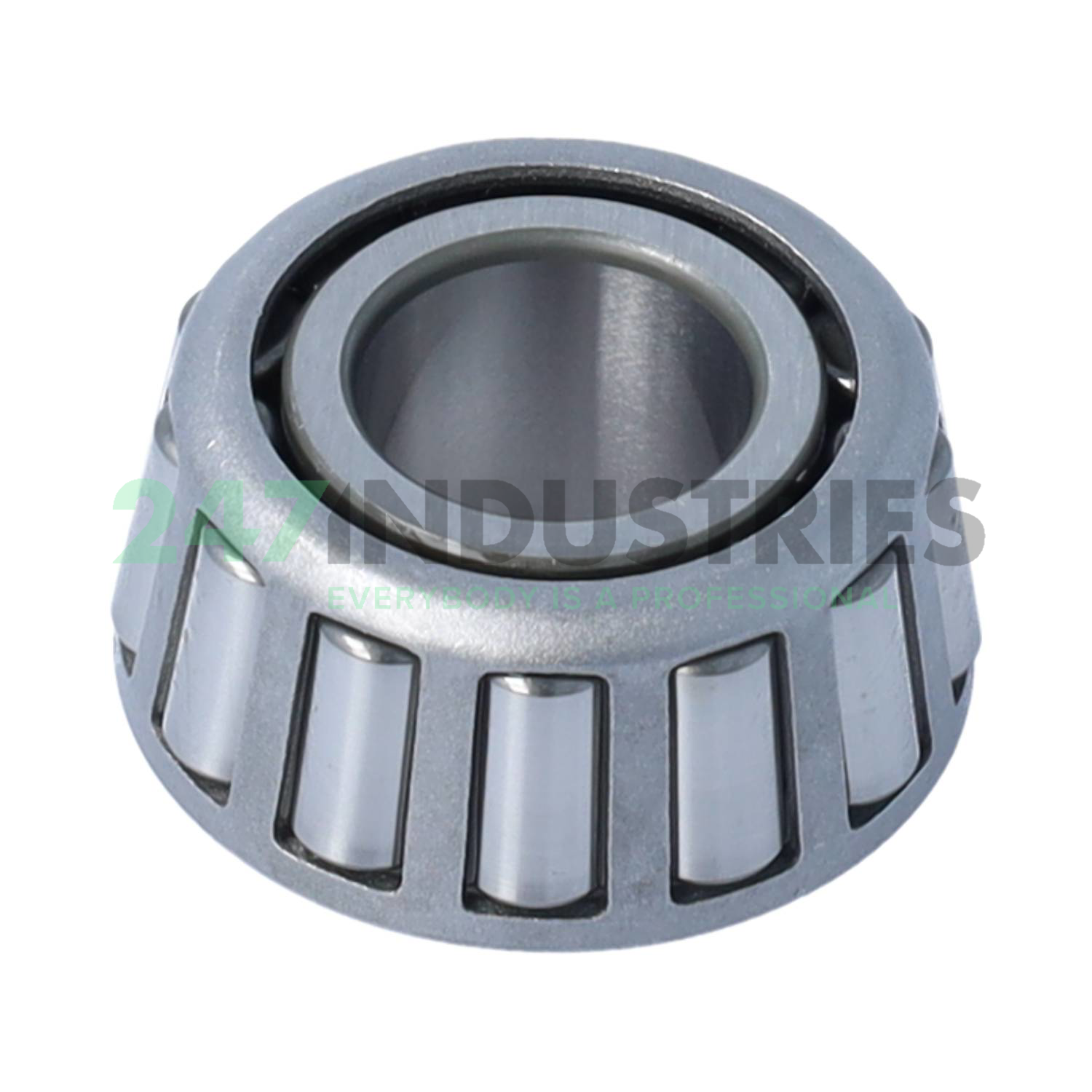

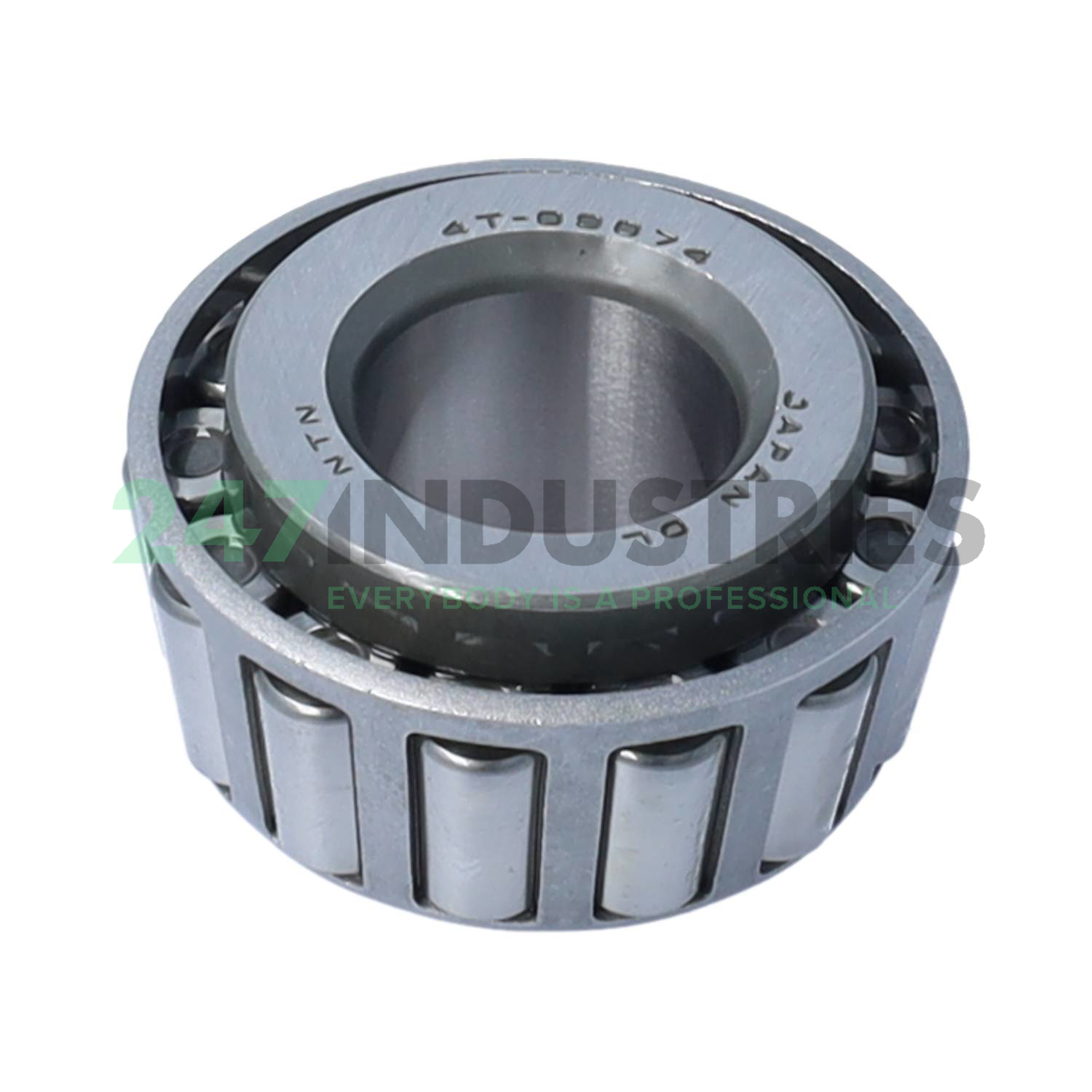

Cone for single-row tapered roller bearing

Stock
5 pcs in stock and ready for shipment
Brand NTN
Article number 4T-09074 NTN
Inside diameter 19,05mm
Width 21,53mm
Product description

The 4T-09074 NTN is a cone for a single-row tapered roller bearing. This removable cone consists of the inner ring and rollers of the bearing. Together with a separately available cup (or outer ring), these parts make up a complete tapered roller bearing. The inner and outer rings have conical raceways and the rollers are tapered. This design enables tapered roller bearings to absorb radial and axial forces (in one direction).

The geometrical qualities of tapered roller bearings prevent sliding movements between the raceways and rollers. This will keep component wear down to a minimum. However, a minimum load is required for proper bearing operation. Because cone and cup are separable, they can easily be mounted. In addition, end play (axial clearance) or preload can be adjusted by moving the components axially during assembly.

For reliable operation of your bearing, it is best to replace cone and cup at the same time. We recommend taking components from the same manufacturer. This prevents bearing problems caused by different internal bearing profiles, differences in material, and in tolerances. Always combine the 4T-09074 NTN with a matching cup from the same manufacturer.

Read more Show less
Help with this product

Similar to: 4T-09074 NTN

Product
Dimensions/Properties
Stock
Price ex VAT
K-09074 SKF
K-09074 SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)
20,89 ex VAT
  • Inside diameter 19,05mm
  • Outside diameter 0mm
  • Width 21,53mm
K-09074 SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)

3 pcs
20,89 ex VAT

Product specifications

All dimensions

  1. Inner (d) MM 19,05
  2. Width (B) MM 21,53
  3. Inner (d) Inch 0.75
  4. Width (B) Inch 0.848

Technical details

  1. Availability 5 pcs
  2. Brand NTN
  3. Item number 4T-09074 NTN
  4. EAN 4547359512069
  5. Category Cone for Tapered Roller Bearings Single Row

Weight and Dimensions

  1. Weight (kg) 0.124
