472 S/M

Cup for single-row tapered roller bearing

Stock
not in stock
Brand S/M
Article number 472 S/M
Outside diameter 120mm
Width 24,24mm
Product description

The 472 S/M is a cup for a single-row tapered roller bearing. This cup is an outer ring that can be combined with a separately available cone (the cage with rolling elements), to form a complete tapered roller bearing. The outer and inner rings have conical raceways and the roller elements are conical as well. This design enables tapered roller bearings to absorb radial and axial forces (in one direction). The greater the angle between the outer ring and the centre line of the bearing, the greater the axial load capacity.

The geometrical qualities of tapered roller bearings prevent sliding movements between the raceways and rollers. This will keep component wear down to a minimum. However, a minimum load is required for proper bearing operation. Because cone and cup are separable, they can easily be mounted. In addition, end play (axial clearance) or preload can be adjusted by moving the components axially during assembly.

For reliable operation of your bearing, it is best to replace cone and cup at the same time. We recommend taking components from the same manufacturer. This prevents bearing problems caused by different internal bearing profiles, differences in material, and in tolerances. Always combine the 472 S/M with a matching cone from the same manufacturer.

Read more Show less
Help with this product

Similar to: 472 S/M

Product
Dimensions/Properties
Stock
Price ex VAT

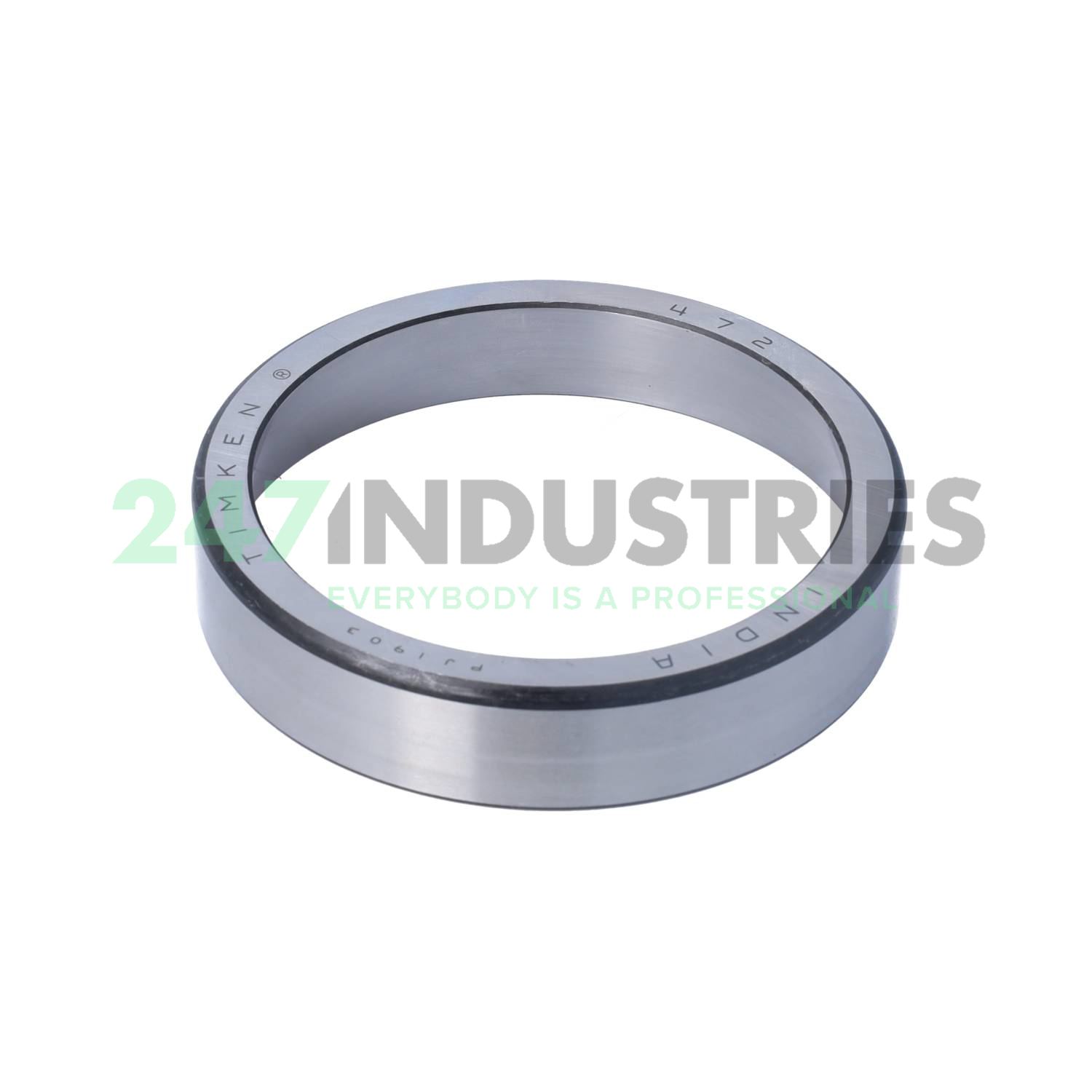

472-20024 Timken
472-20024 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)
79,05 ex VAT
  • Inside diameter 0mm
  • Outside diameter 120mm
  • Width 24,24mm
472-20024 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)

1 pc
79,05 ex VAT

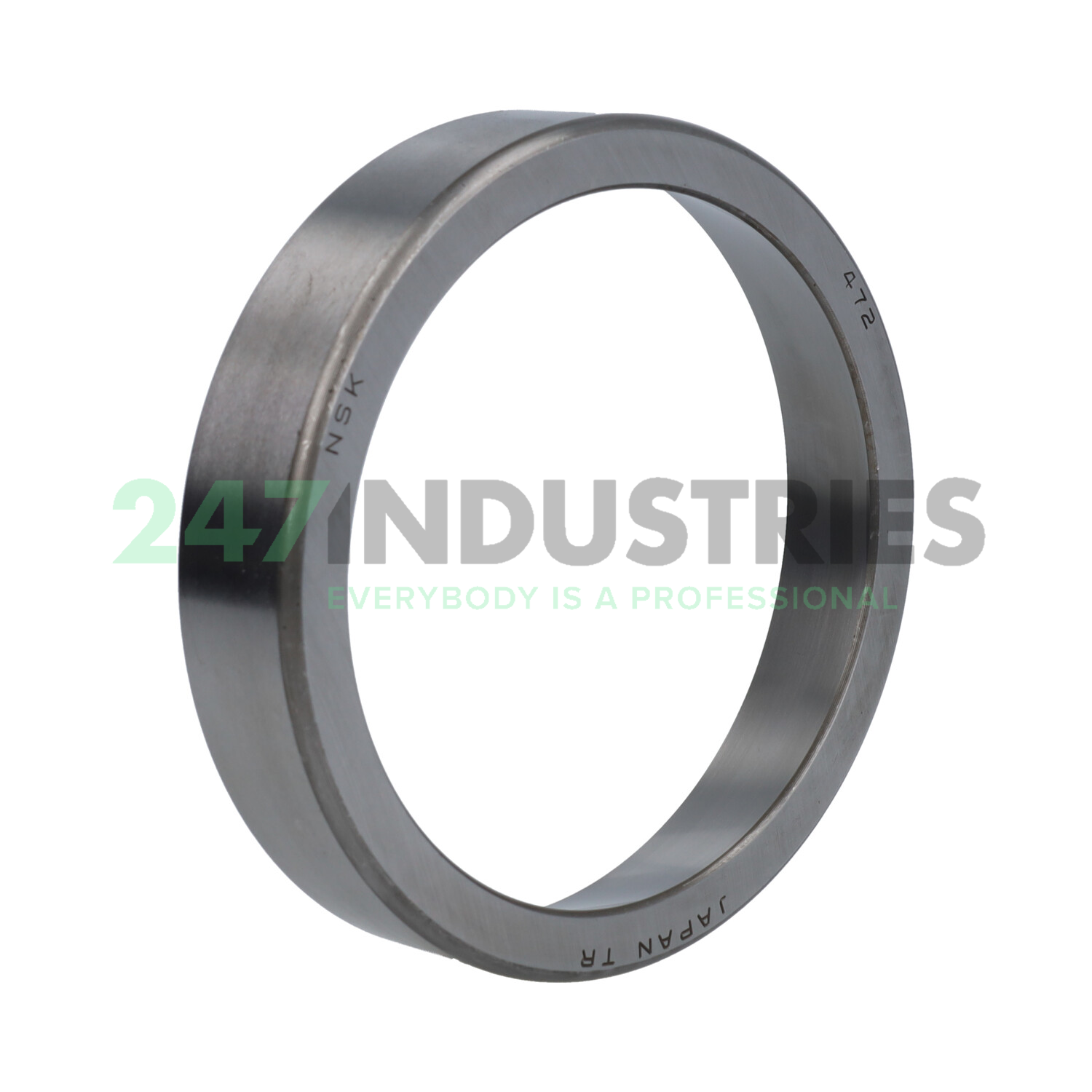

472 NSK
472 NSK
Guaranteed same day shipment on orders placed before 18:00h (CET)
31,79 ex VAT
  • Inside diameter 0mm
  • Outside diameter 120mm
  • Width 24,24mm
472 NSK
Guaranteed same day shipment on orders placed before 18:00h (CET)

1 pc
31,79 ex VAT

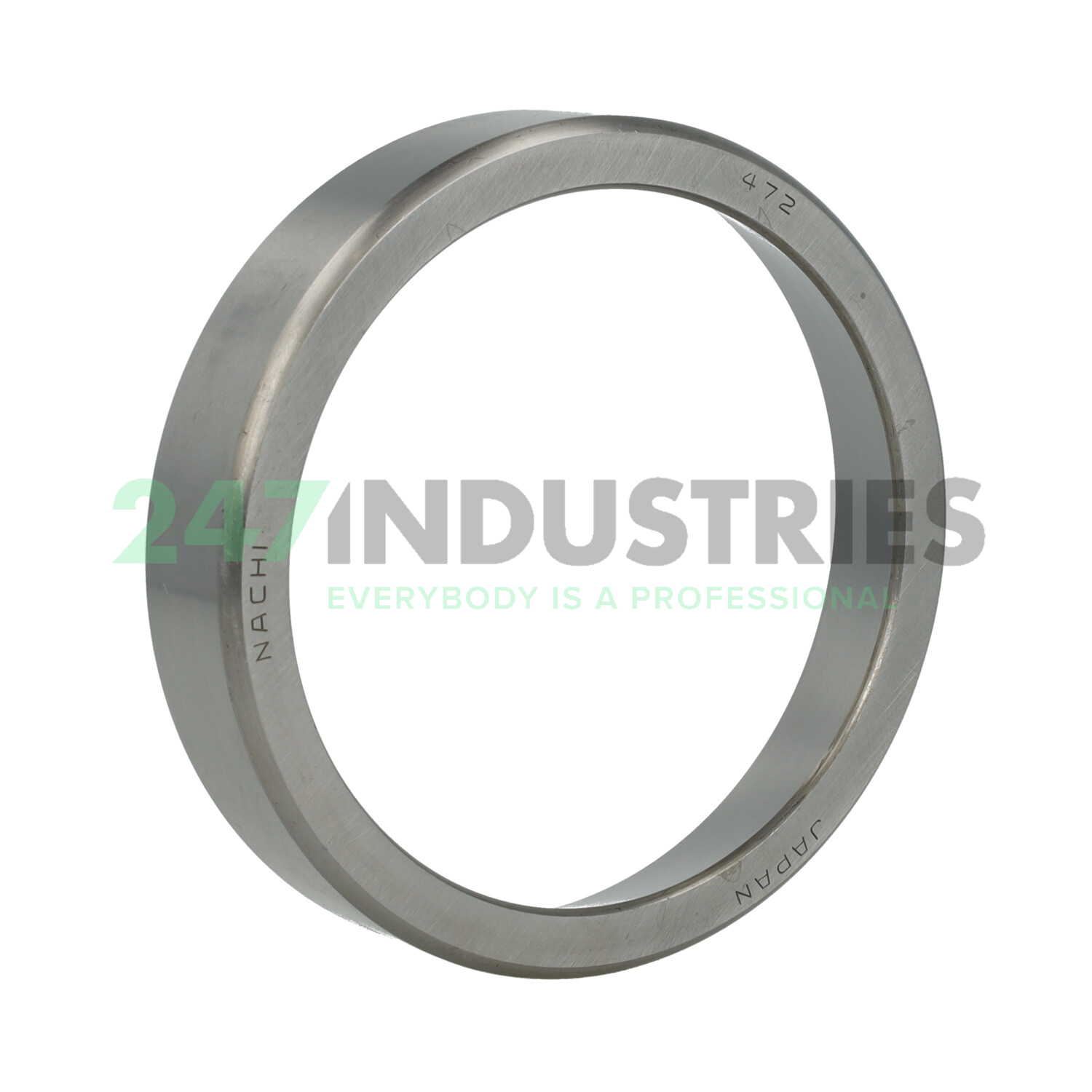

472 Nachi
472 Nachi
Guaranteed same day shipment on orders placed before 18:00h (CET)
32,48 ex VAT
472 Nachi
Guaranteed same day shipment on orders placed before 18:00h (CET)

10 pcs
32,48 ex VAT
472 BTC
472 BTC
Guaranteed same day shipment on orders placed before 18:00h (CET)
21,34 ex VAT
  • Inside diameter 0mm
  • Outside diameter 120mm
  • Width 24,24mm
472 BTC
Guaranteed same day shipment on orders placed before 18:00h (CET)

1 pc
21,34 ex VAT

Product specifications

All dimensions

  1. Outer (D) MM 120
  2. Width (B) MM 24,24
  3. Outer (D) Inch 4.7244
  4. Width (B) Inch 0.9543

Technical details

  1. Availability 0 pcs
  2. Brand S/M
  3. Item number 472 S/M
  4. Category Cup for Tapered Roller Bearings Single Row

Weight and Dimensions

  1. Weight (kg) 0.496
Show all details Show less
