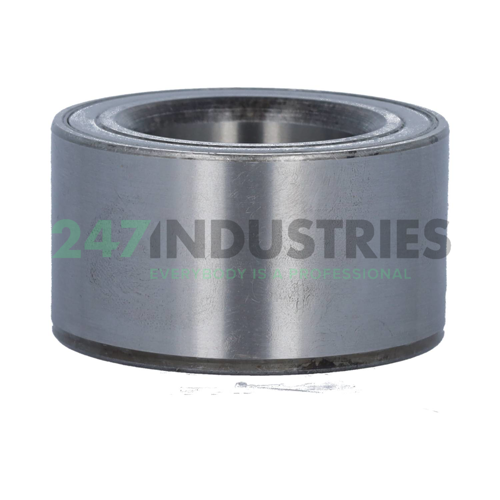

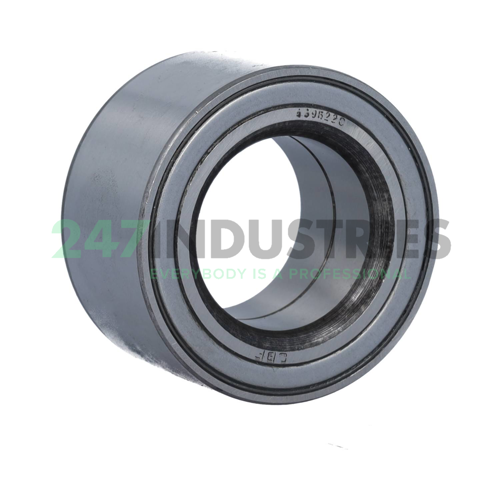

439622C CBF

All dimensions

1. Inner (d) MM 39
2. Outer (D) MM 68
3. Width (B) MM 37
4. Inner (d) Inch 1.5354
5. Outer (D) Inch 2.6772
6. Width (B) Inch 1.4567

Suffix description

1. C Unknown

Technical details

1. Availability 129 pcs
2. Brand CBF
3. Item number 439622C CBF
4. Also known as 309791
   311315BD
   513014
   528810
   540733
   540733BA
   B-38
   BA2B309692
   C302
   DAC39680037
   DE0819LL
   IR-8052
   IR-8111
   MV309692

5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.486

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
