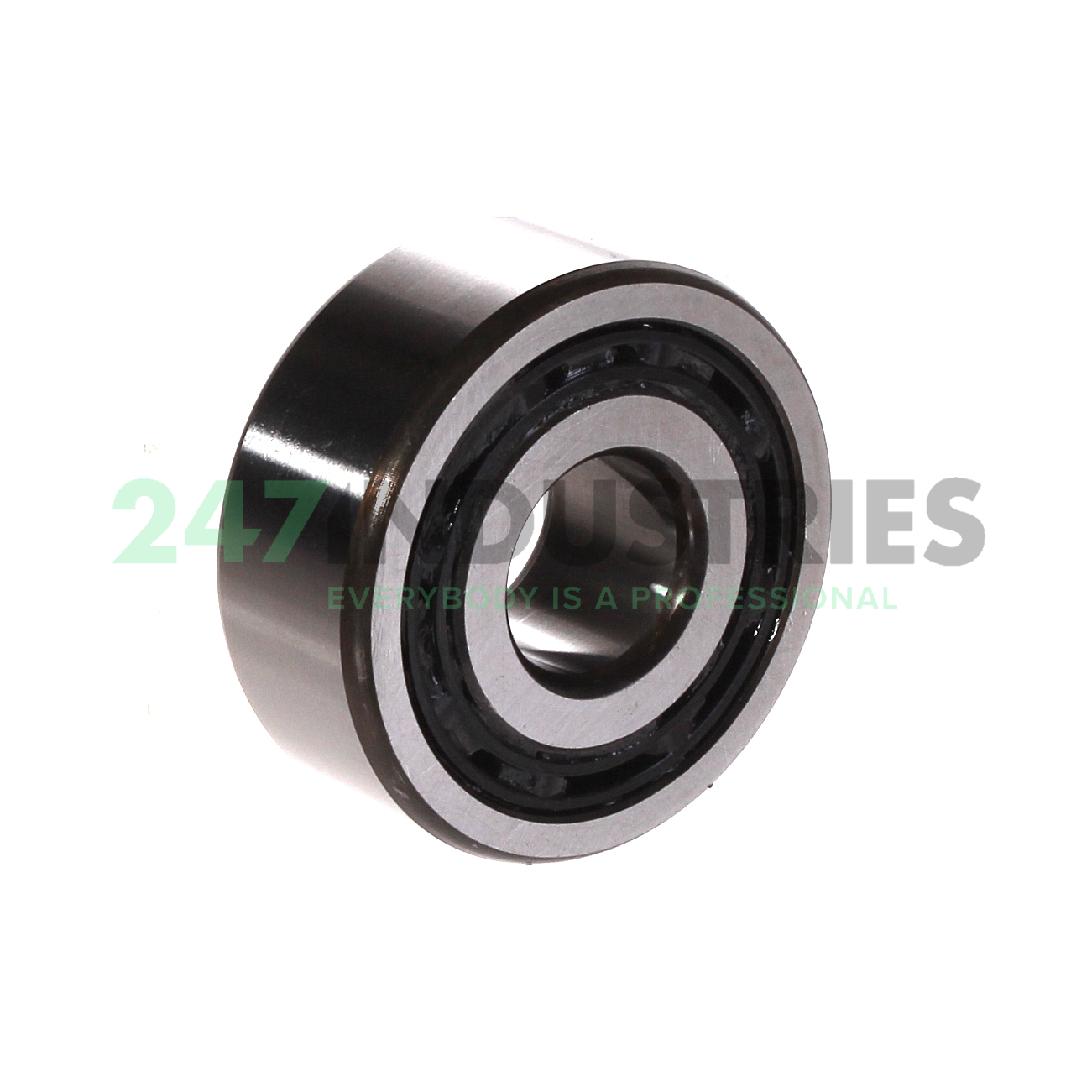

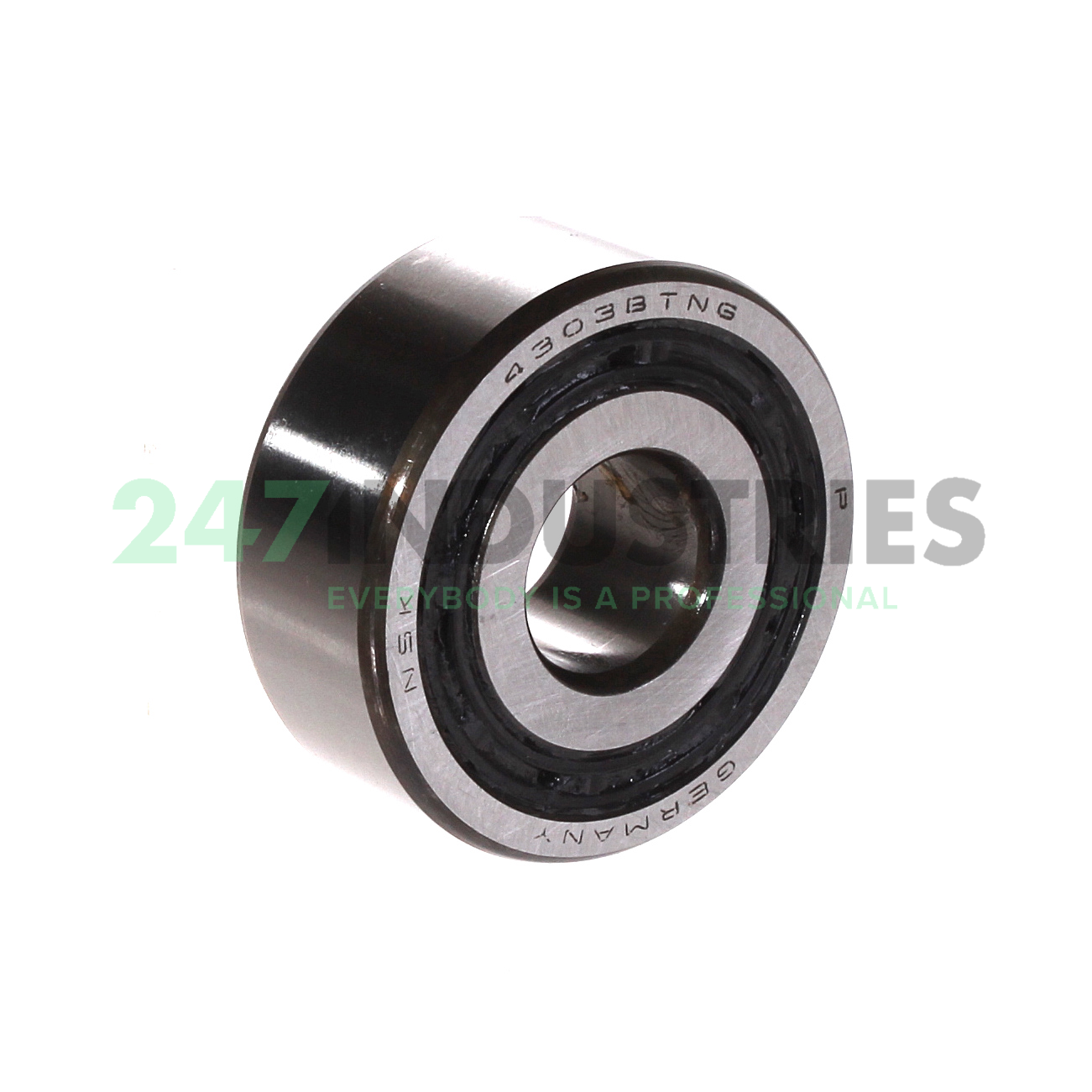

4303B TNG NSK

All dimensions

1. Inner (d) MM 17,00
2. Outer (D) MM 47,00
3. Width (B) MM 19,00
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.7480

Suffix description

1. B Internal Design Modification
2. TNG Solid Cage Of Glass-Fibre Reinforced Polyamide, Ball Riding

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 4303B TNG NSK
4. Category Deep Groove Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.17

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
