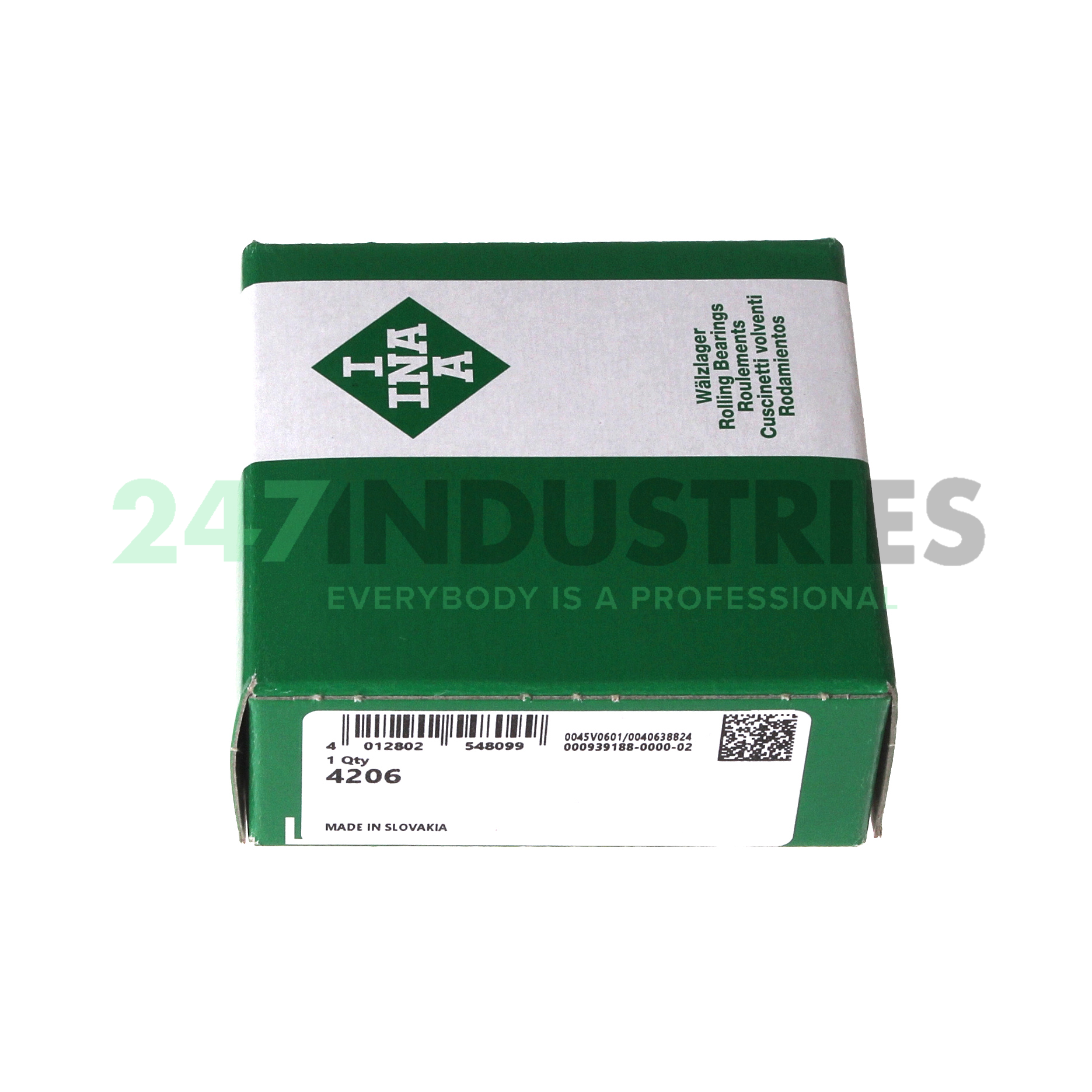

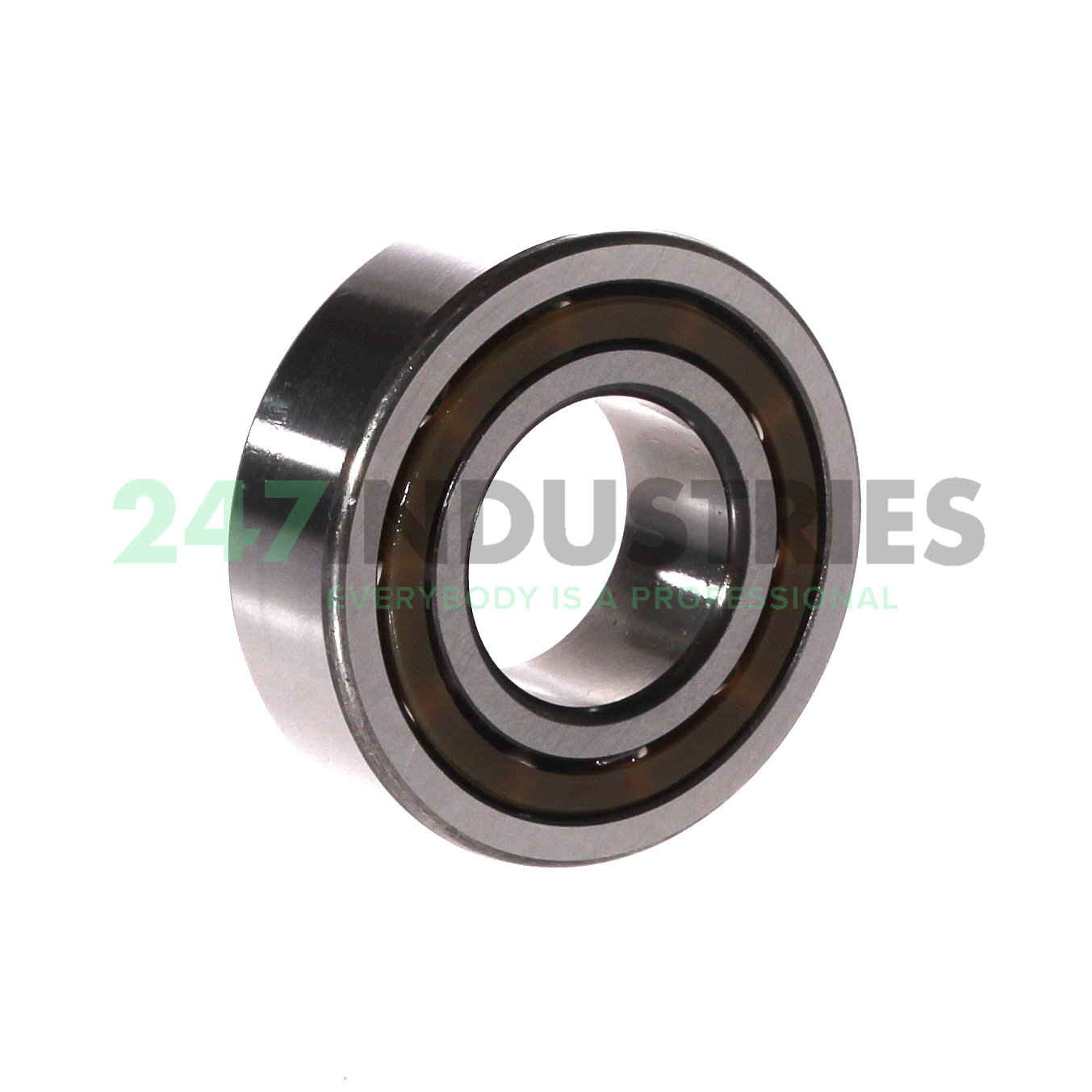

4206 INA

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 62
3. Width (B) MM 20
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.7874

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number 4206 INA
4. Also known as 0009391880000

5. EAN 4012802548099
6. Category Deep Groove Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.285

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. ECLASS number 23-05-08-01
2. ECLASS2 number 23-05-08-01

Downloads and links

1. Link to manufacturer Link to manufacturer
