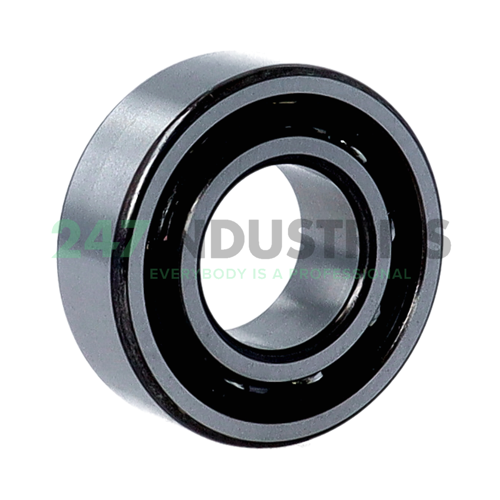

4205-BB-TVH FAG

All dimensions

1. Inner (d) MM 25,00
2. Outer (D) MM 52,00
3. Width (B) MM 18,00
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.7087
7. Width (b) mm 18,00

Suffix description

1. BB Ball Bearing, Paired, Back-To-Back (Obsolete)
2. TVH Moulded Polyamide Cage Snap-Type, Rolling Element Riding

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 4205-BB-TVH FAG
4. Also known as 0219434510000

5. EAN 4026677966087
6. Category Deep Groove Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.16

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 15700
2. Radial Dynamic Load Rating Cr (N) 22900
3. Basic static load rating, radial (C 0r) "15700.0000"
4. Limiting speed (n G) "11100.0000"
5. Reference speed (n ϑr) "11200.0000"
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearings 42..-BB-TVH, main dimensions to DIN 625-3, double row
