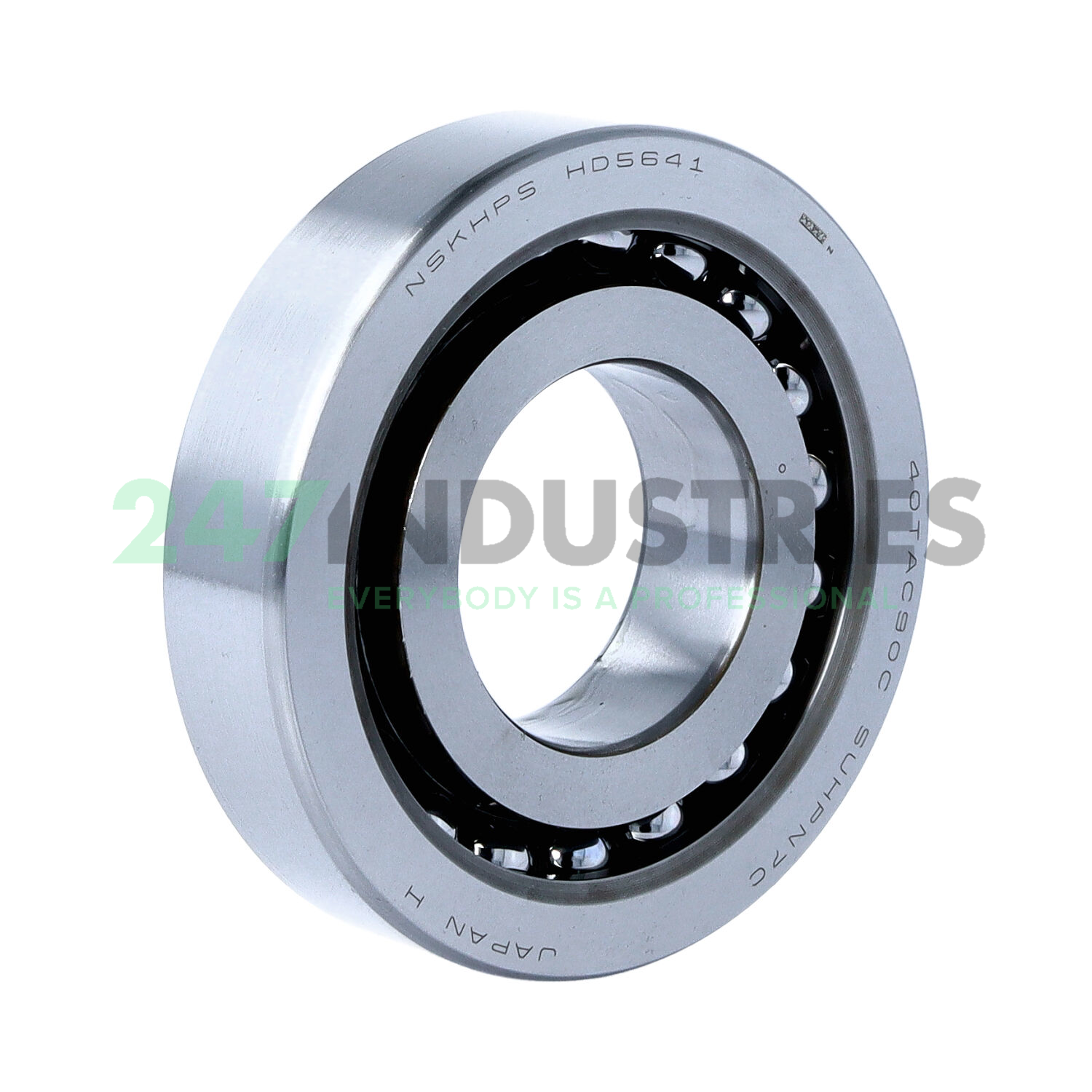

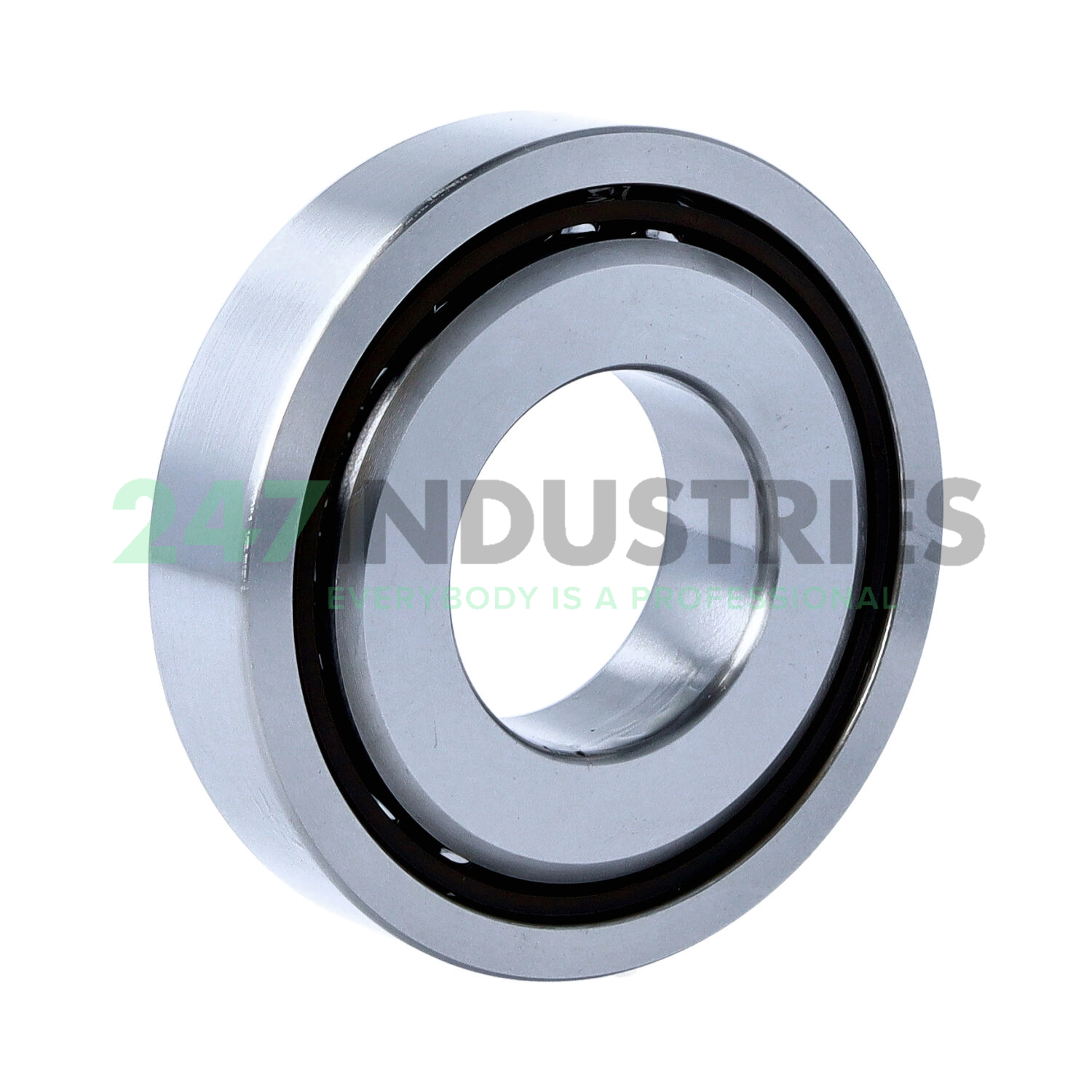

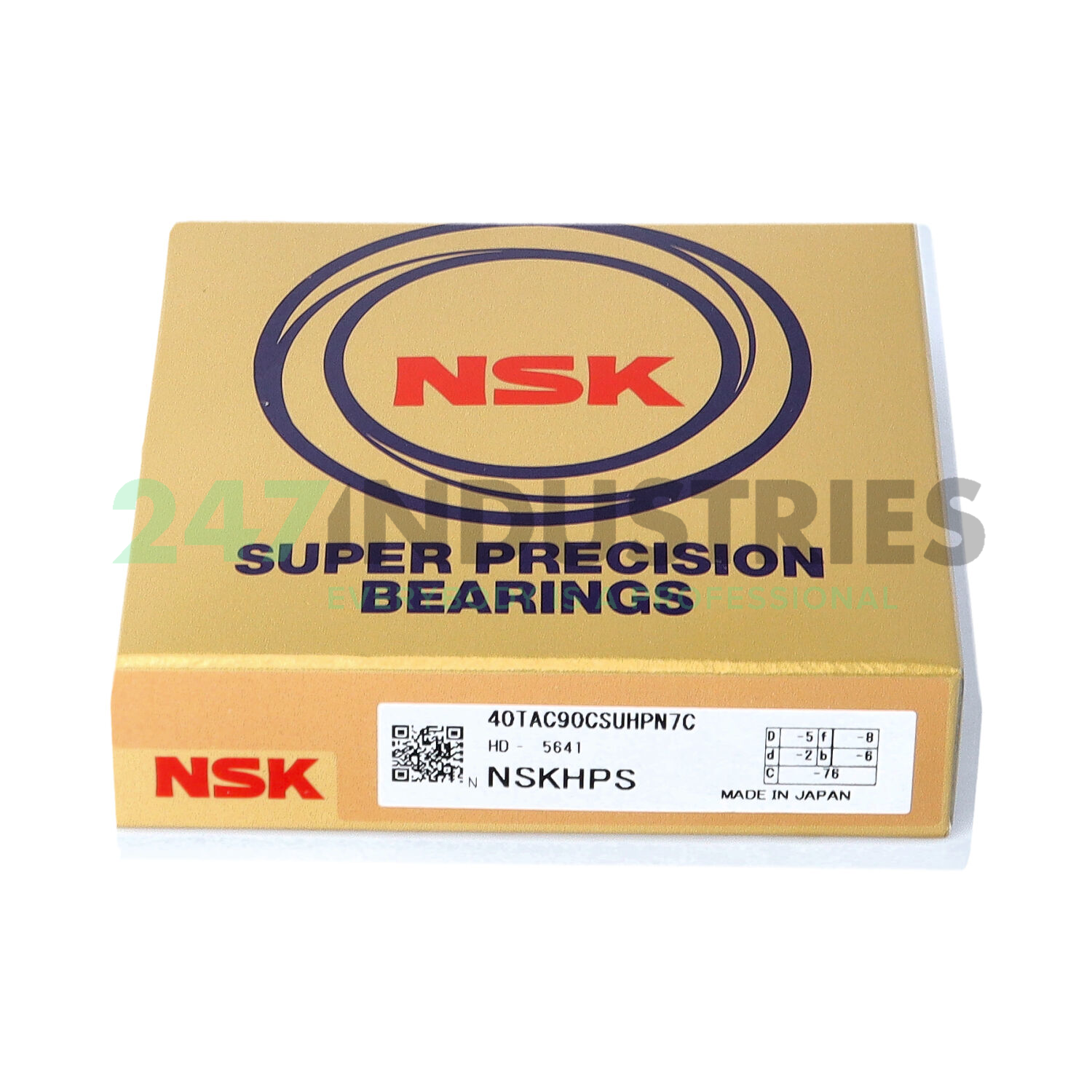

40TAC90CSUHPN7C NSK

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 90
3. Width (B) MM 20
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.7874

Suffix description

1. C 60° Contact Angle
2. SUH Single Universal Bearing, Heavy Preload
3. PN7C NSK Standard Accuracy Class 7C (Equivalent To Axial Runout Class 2)

Technical details

1. Availability 16 pcs on Thu 29 Jan
2. Brand NSK
3. Item number 40TAC90CSUHPN7C NSK
4. EAN 00029176975288
5. Category Angular Contact Thrust Ball Bearings, Single Direction

Weight and Dimensions

1. Weight (kg) 0.674

Product Properties

1. Cage Type S - Steel or Standard Cage
2. Precision Precision P2
