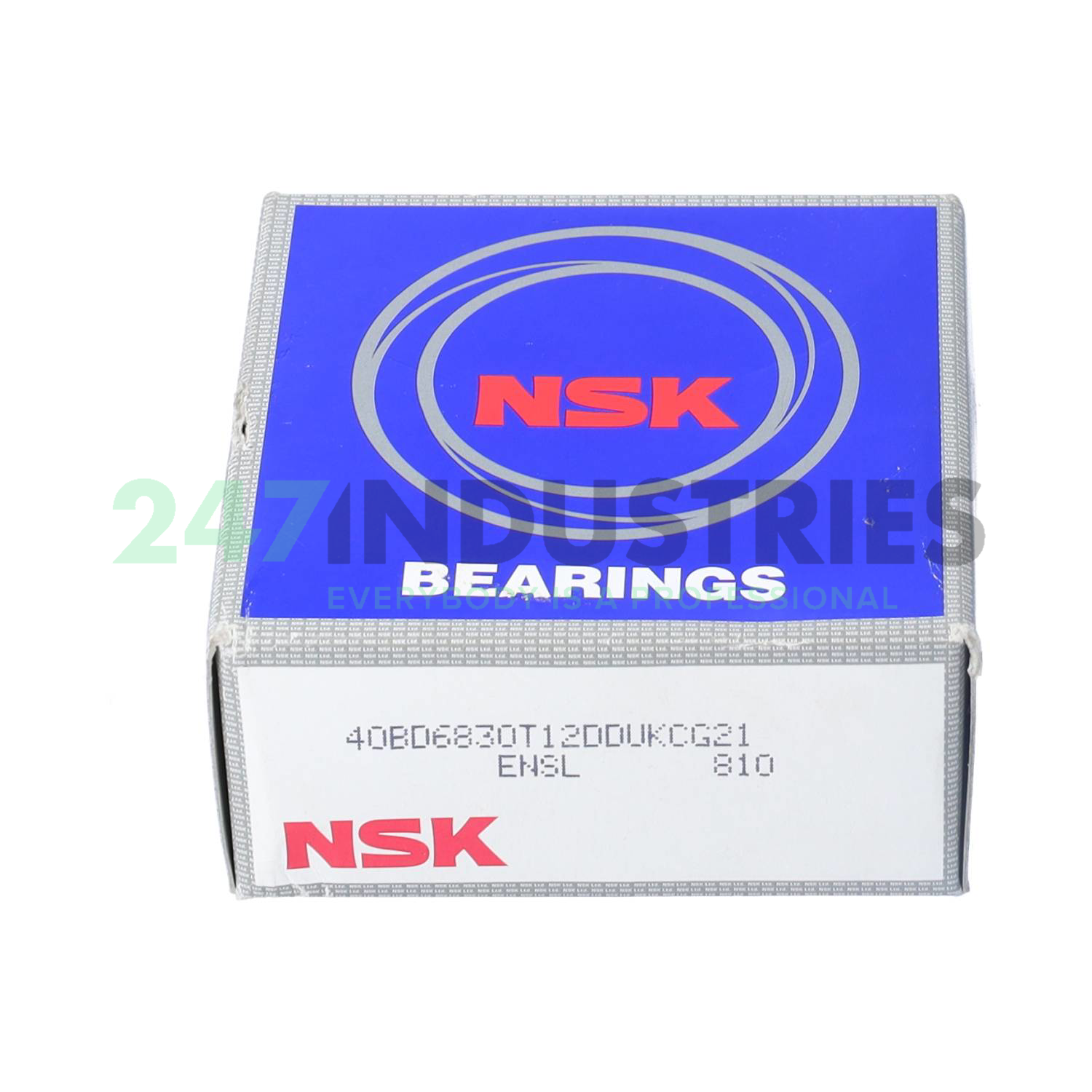

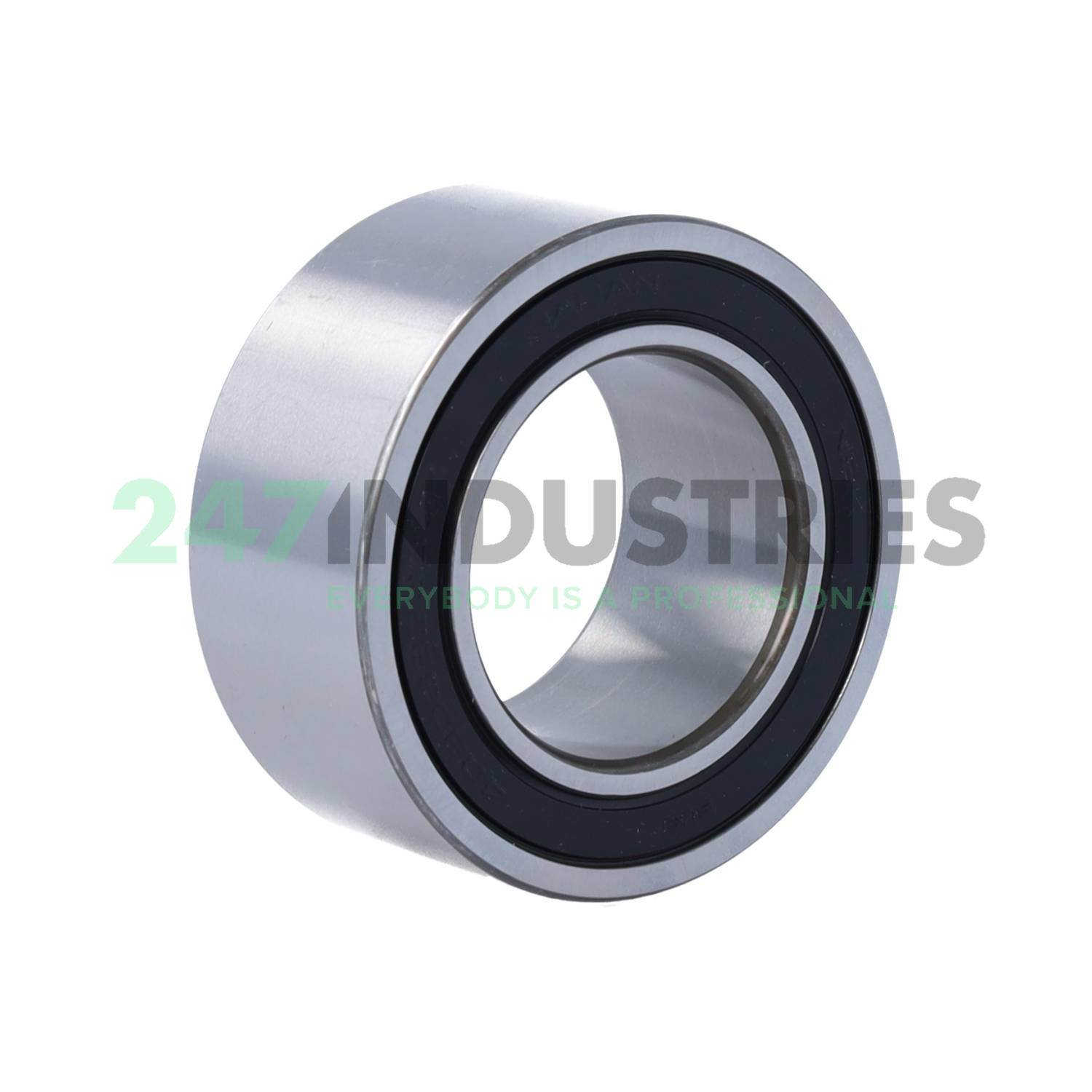

40BD6830T12DDUKCG21 NSK

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 68
3. Width (B) MM 30
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.6772
6. Width (B) Inch 1.1811

Suffix description

1. T12 Glass Fibre Reinforced Cage
2. DDU Rubber Seals At Each Side Of The Bearing
3. K Tapered Bore
4. CG21 Special Radial Clearance In Microns

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 40BD6830T12DDUKCG21 NSK
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.372

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Special Internal Clearance
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
