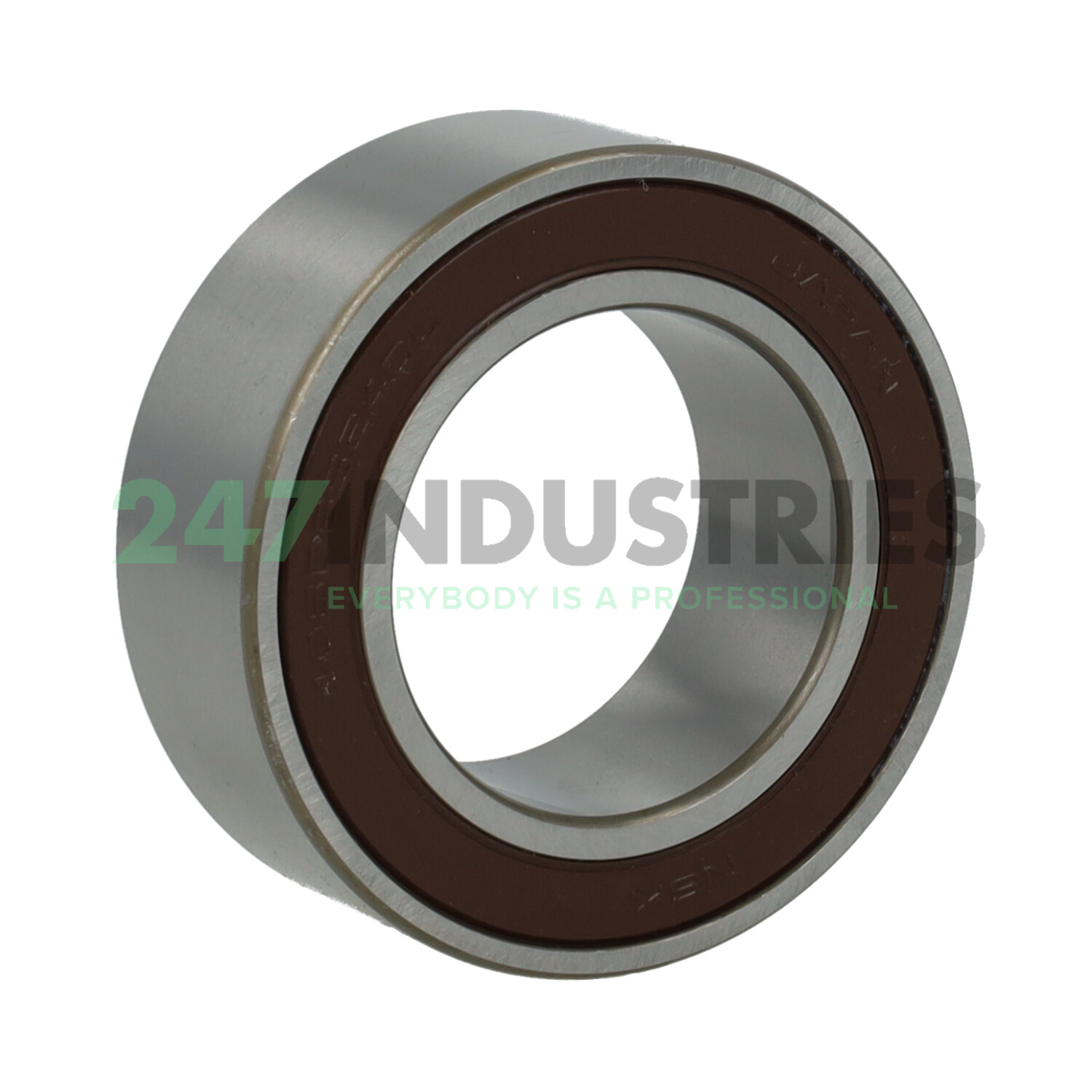

40BD6624T12DDUCG31 ENSL NSK

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 66
3. Width (B) MM 24
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.5984
6. Width (B) Inch 0.9449

Suffix description

1. T12 Glass Fibre Reinforced Cage
2. DDU Rubber Seals At Each Side Of The Bearing
3. CG31 Radial Clearance In Microns
4. ENS Lubricant, Temperature Range -40 ~ 160°C, Peak +180°C
5. L Amount Of Grease Is Approximately. 20% To 30%

Technical details

1. Availability 2 pcs
2. Brand NSK
3. Item number 40BD6624T12DDUCG31 ENSL NSK
4. Also known as 40BD6624T12DDUCG31

5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.272

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type TB - Hard Fiber Cage
4. External Modification No External Modification
5. Radial Internal Play Special Internal Clearance
6. Precision Standard Precision
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
