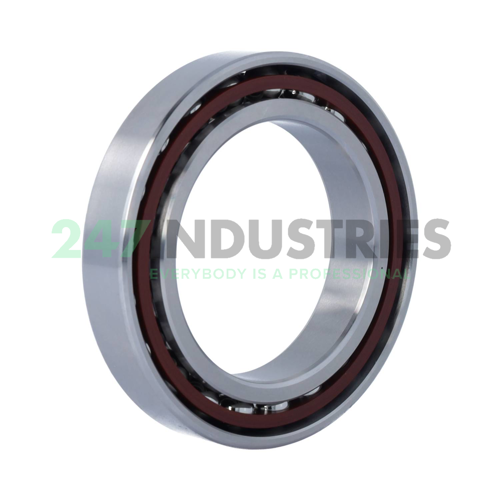

3MM9117WI CR DUH Fafnir

All dimensions

1. Inner (d) MM 85
2. Outer (D) MM 130
3. Width (B) MM 44
4. Inner (d) Inch 3.3465
5. Outer (D) Inch 5.1181
6. Width (B) Inch 1.7323

Suffix description

1. WI Low Shoulder On Outer Ring
2. CR Phenolic Retainer (Composition) Fafnir Standard
3. DU Duplex Pair Of Bearings, Universally Ground

Technical details

1. Availability 1 pc
2. Brand Fafnir
3. Item number 3MM9117WI CR DUH Fafnir
4. Also known as 7017ACD/P4ADGC
   B7017-E-T-P4S-DUH

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.78

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload DH - 2 Univ Bearings High Preload
7. Lubrication Standard Lubrication
