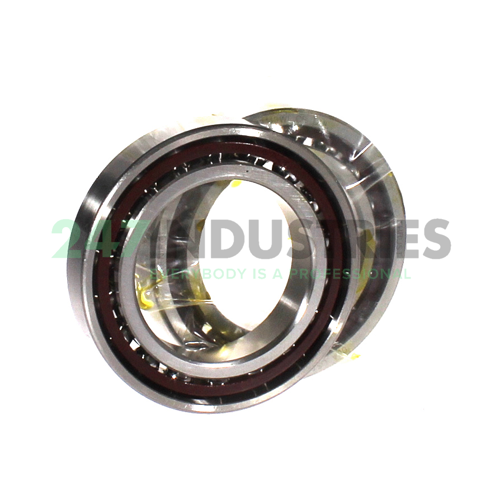

3MM9110WICRDUL Fafnir

All dimensions

1. Inner (d) MM 50,00
2. Outer (D) MM 80,00
3. Width (B) MM 32,00
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.1496
6. Width (B) Inch 1.2598

Suffix description

1. 2MM 15° Low Contact Angle, Superprecision Abec-7 (Iso P4),
2. 3MM 25° High Contact Angle Superprecision Abec-7 (Iso P4),
3. 2MMV 15° Low Contact Angle, High Grade (HG) Between Abec-7 (ISO P4) And Abec-9 (ISO P2),
4. 3MMV 25° High Contact Angle, High Grade (HG) Between Abec-7 (ISO P4) And Abec-9 (ISO P2)
5. WI Low Shoulder On Outer Ring
6. CR (TB-Segment) Phenolic (Composition) Fafnir Standard
7. DUL Duplex Pair Of Bearings, Universally Ground, Light Preload

Technical details

1. Availability 20 pcs
2. Brand Fafnir
3. Item number 3MM9110WICRDUL Fafnir
4. Also known as 7010ACD/P4ADGA

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.5

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload DL - 2 Univ Bearings Light Preload
7. Lubrication Standard Lubrication
