3982/3920 ZKL

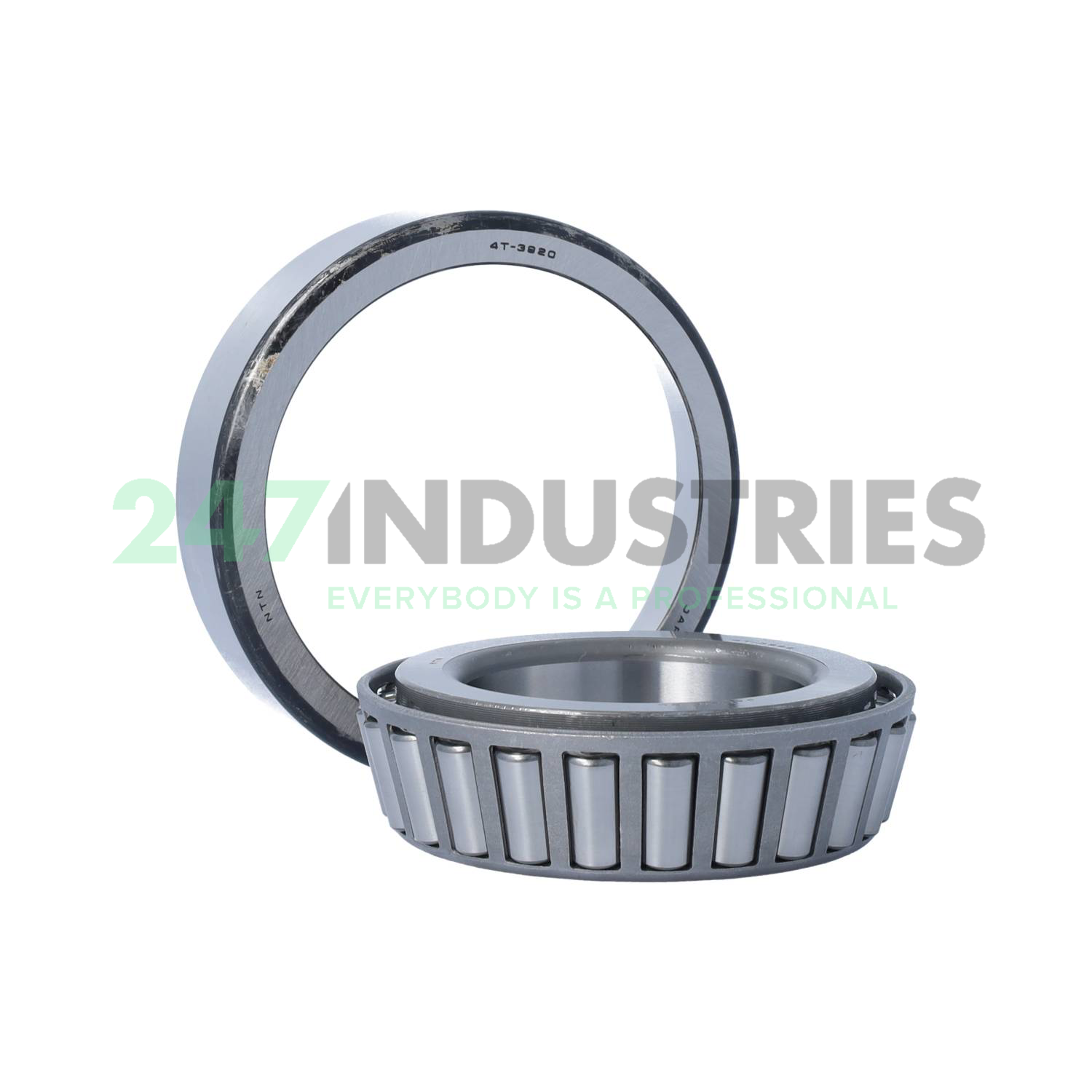

Single-row tapered roller bearing

Stock
not in stock
Brand ZKL
Article number 3982/3920 ZKL
Inside diameter 63,5mm
Outside diameter 112,71mm
Width 30,16mm
Product description

The 3982/3920 ZKL is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.

The 3982/3920 ZKL is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.

Help with this product

Similar to: 3982/3920 ZKL

Product
Dimensions/Properties
Stock
Price ex VAT
3982/3920 Timken
3982/3920 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)
86,84 ex VAT
  • Inside diameter 63,5mm
  • Outside diameter 112,71mm
  • Width 30,16mm
3982/3920 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)

9 pcs
86,84 ex VAT
3982-99401 Timken
3982-99401 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)
86,84 ex VAT
  • Inside diameter 63,5mm
  • Outside diameter 112,71mm
  • Width 30,16mm
3982-99401 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)

4 pcs
86,84 ex VAT
4T-3982/3920 NTN
4T-3982/3920 NTN
Guaranteed same day shipment on orders placed before 18:00h (CET)
39,48 ex VAT
  • Inside diameter 63,5mm
  • Outside diameter 112,71mm
  • Width 30,16mm
4T-3982/3920 NTN
Guaranteed same day shipment on orders placed before 18:00h (CET)

1 pc
39,48 ex VAT
3982/3920 KFB Clarfeld
3982/3920 KFB Clarfeld
Guaranteed same day shipment on orders placed before 18:00h (CET)
12,27 ex VAT
  • Inside diameter 63,50mm
  • Outside diameter 112,71mm
  • Width 30,16mm
3982/3920 KFB Clarfeld
Guaranteed same day shipment on orders placed before 18:00h (CET)

2 pcs
12,27 ex VAT

Product specifications

All dimensions

  1. Inner (d) MM 63,5
  2. Outer (D) MM 112,71
  3. Width (B) MM 30,16
  4. Inner (d) Inch 2.5
  5. Outer (D) Inch 4.4375
  6. Width (B) Inch 1.1875

Technical details

  1. Availability 0 pcs
  2. Brand ZKL
  3. Item number 3982/3920 ZKL
  4. Also known as 3982/20
    SET103
  5. Category Tapered Roller Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 1.22

Product Properties

  1. Precision Standard Precision
Show all details Show less
