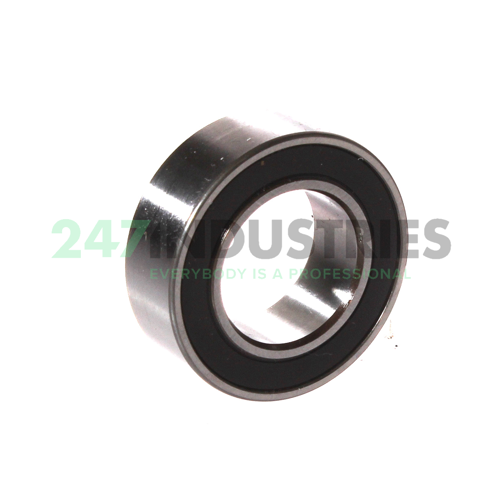

3903-2RS-C3 INA

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 30
3. Width (B) MM 10
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.1811
6. Width (B) Inch 0.3937
7. Width (b) mm 10

Suffix description

1. 2RS Lip Seal At Both Sides Of The Bearing, Axial Fitting
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 5 pcs
2. Brand INA
3. Item number 3903-2RS-C3 INA
4. Also known as 0038276580030

5. EAN 4054366154910
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.026

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 4100
2. Radial Dynamic Load Rating Cr (N) 5200
3. Limiting speed (n G) 13300
4. ECLASS number 23-05-08-03
5. ECLASS2 number 23-05-08-03
6. Medias description Angular contact ball bearing 39..-B-2RSR-TVH, double row, 1 inner ring
