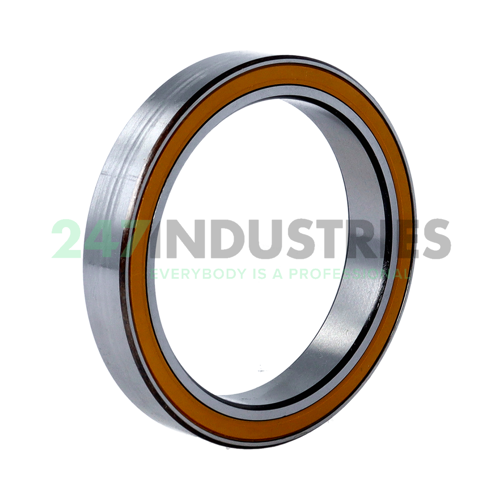

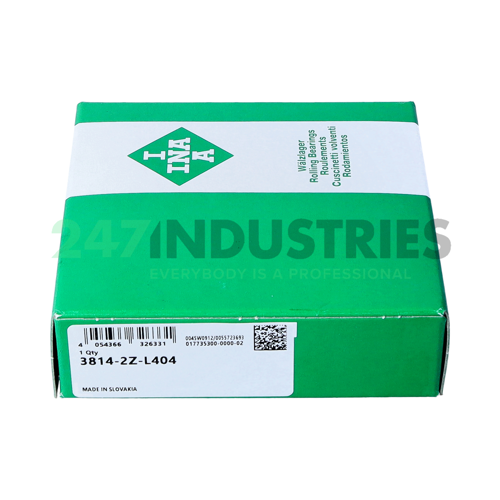

3814-2Z-L404 INA

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 90
3. Width (B) MM 15
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.5906
7. Width (b) mm 15

Suffix description

1. 2Z Two Metallic Shields
2. L404 Lubrication

Technical details

1. Availability 3 pcs on Mon 26 Jan
2. Brand INA
3. Item number 3814-2Z-L404 INA
4. Also known as 0177353000000

5. EAN 4054366326331
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.205

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 23200
2. Limiting speed (n G) 5700
3. Reference speed (n ϑr) 4050
