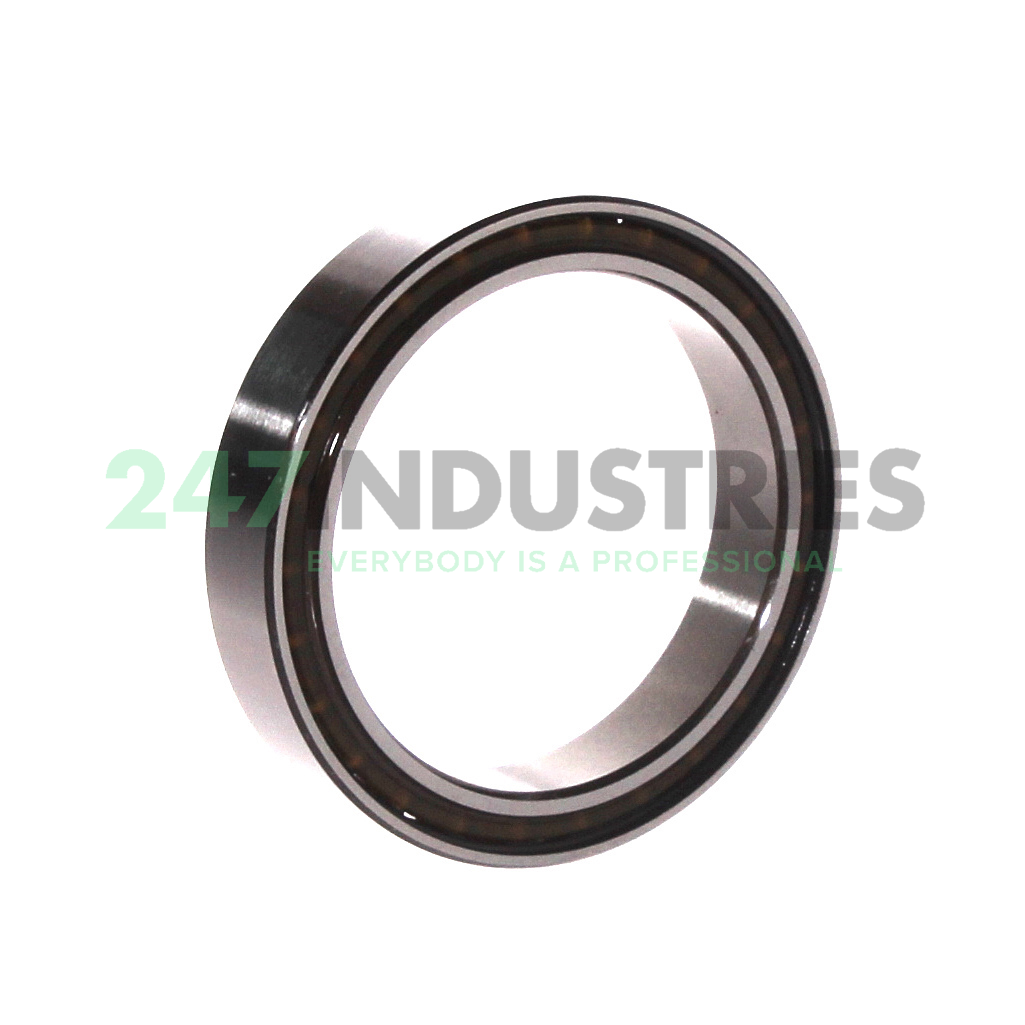

3808 INA

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 52
3. Width (B) MM 10
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.3937
7. Width (b) mm 10

Technical details

1. Availability 5 pcs
2. Brand INA
3. Item number 3808 INA
4. Also known as 0009600550000

5. EAN 4054364135294
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.04

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 7600
2. Radial Dynamic Load Rating Cr (N) 6900
3. Limiting speed (n G) 13700
4. Reference speed (n ϑr) 6300
5. ECLASS number 23-05-08-03
6. ECLASS2 number 23-05-08-03
7. Medias description Angular contact ball bearings 38..-B, double row, contact angle a = 25°
