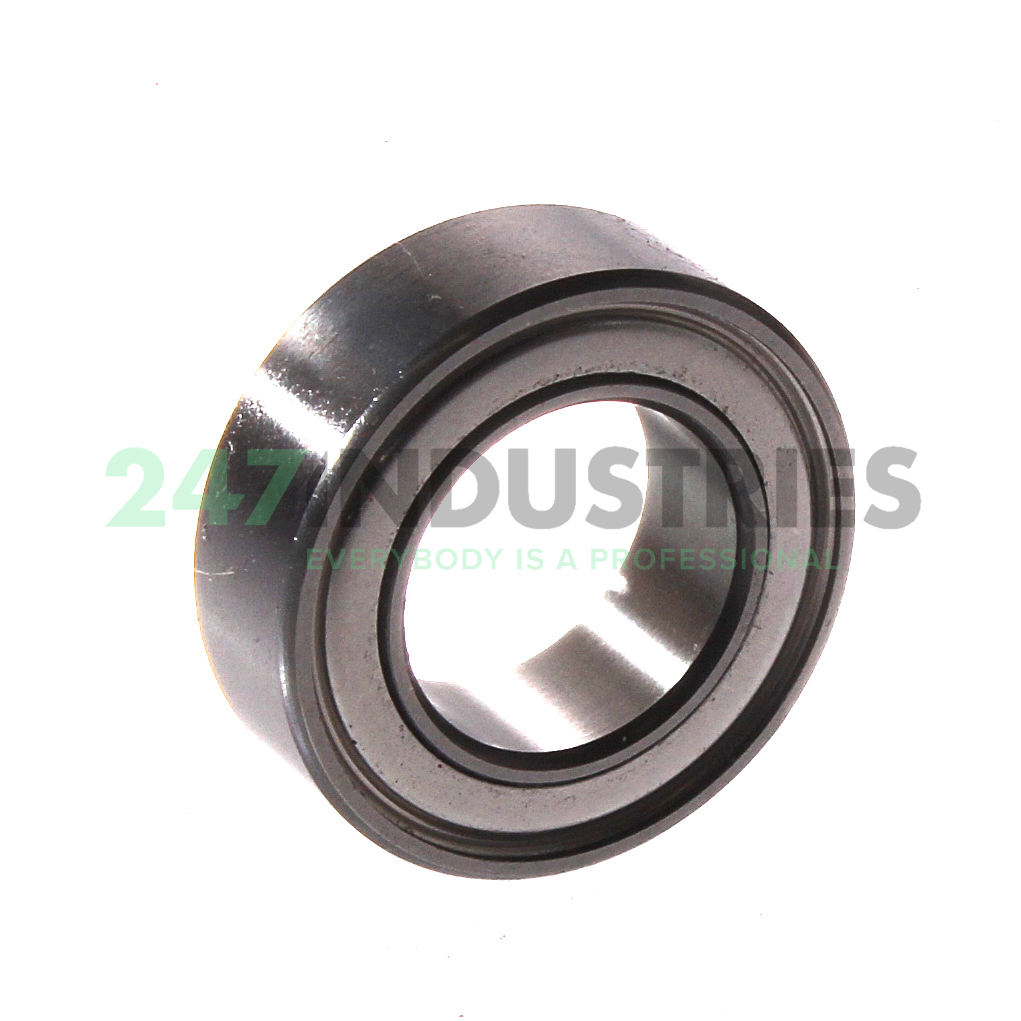

3801-B-2Z-TVH-HLC INA

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 21
3. Width (B) MM 7
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 0.8268
6. Width (B) Inch 0.2756

Suffix description

1. B Internal Design Modification
2. 2Z Shields At Both Sides Of The Bearing
3. TVH Moulded Polyamide Cage Snap-Type, Rolling Element Riding
4. HLC Factory Location Code, No Additional Meaning, Can Be Used As Standard

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number 3801-B-2Z-TVH-HLC INA
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.008

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
