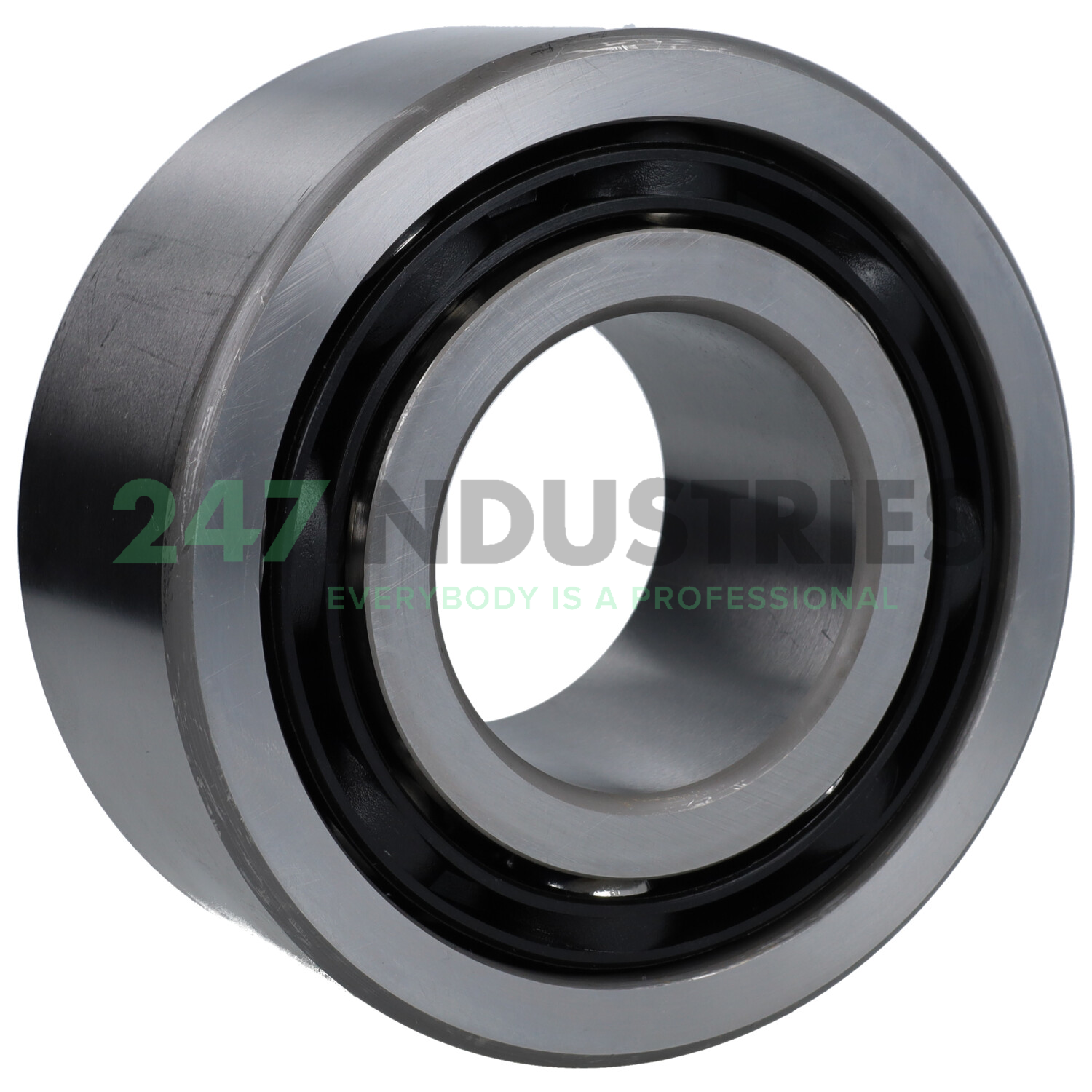

3313B.TV.C3 NKE

All dimensions

1. Inner (d) MM 65
2. Outer (D) MM 140
3. Width (B) MM 58,7
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 5.5118
6. Width (B) Inch 2.311

Suffix description

1. B Design Without Filling Slots Have Contact Angles Of 32°
2. TV Polyamide Cage
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 1 pc
2. Brand NKE
3. Item number 3313B.TV.C3 NKE
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 3.435

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
