3313A-2ZTN9/C3VT113 SKF

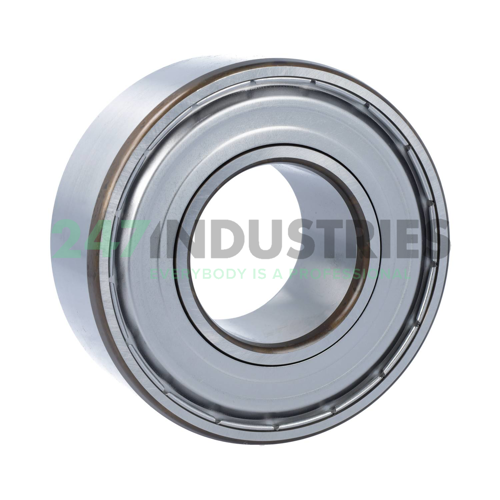

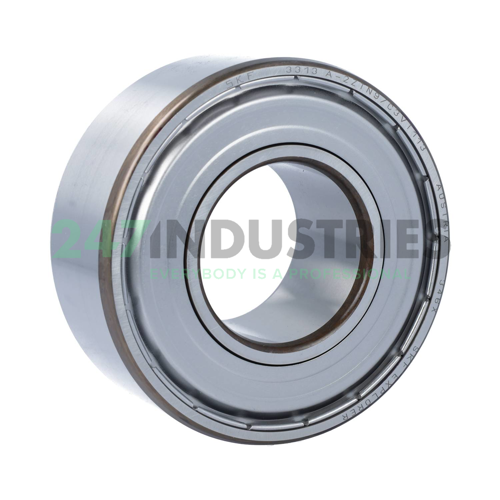

Double row angular contact ball bearing

Stock
2 pcs in stock and ready for shipment
Brand SKF
Article number 3313A-2ZTN9/C3VT113 SKF
Inside diameter 65mm
Outside diameter 140mm
Width 58,7mm
Product description

The 3313A-2ZTN9/C3VT113 SKF is a double-row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single-row angular contact ball bearings in O-arrangement but is slightly narrower. Double-row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Help with this product

Similar to: 3313A-2ZTN9/C3VT113 SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 65
  2. Outer (D) MM 140
  3. Width (B) MM 58,7

Suffix description

  1. A Double Row Angular Contact Ball Bearing Without Filling Slots
  2. 2Z Shield Of Pressed Sheet Steel On Both Sides Of The Bearing
  3. TN9 Injection Moulded Snap-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered
  4. C3 Internal Clearance Larger Than Normal
  5. VT113 High/Low Temperature Grease, Lithium Complex

Technical details

  1. Availability 2 pcs
  2. Brand SKF
  3. Item number 3313A-2ZTN9/C3VT113 SKF
  4. Also known as 3313A-2ZTN9/C3
    3313B-2ZTNC3
  5. EAN 7316572565865
  6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 3.92

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal ZZ/2Z - Steel Seal on Two Sides
  3. Cage Type P - Plastic Molded Cage
  4. External Modification No External Modification
  5. Radial Internal Play C3 Internal Play (Higher than Cn)
  6. Precision Standard Precision
  7. Lubrication Higher and Lower Temperature Grease
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Split Inner ring / Outer ring Standard
