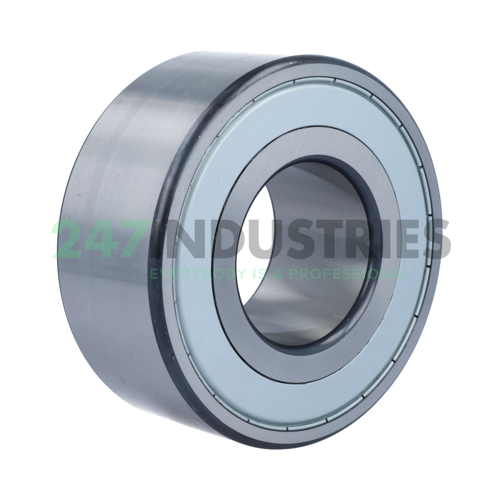

3313-BD-XL-2Z-TVH-C3 FAG

All dimensions

1. Inner (d) MM 65
2. Outer (D) MM 140
3. Width (B) MM 58,7
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 5.5118
6. Width (B) Inch 2.311

Suffix description

1. BD Modified Internal Construction, Contact Angle α=30°, Without Filling Slot
2. XL X-Life
3. 2Z Shields At Both Sides Of The Bearing
4. TVH Moulded Polyamide Cage Snap-Type, Rolling Element Riding
5. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 2 pcs on Tue 30 Dec
2. Brand FAG
3. Item number 3313-BD-XL-2Z-TVH-C3 FAG
4. Also known as 0822378590030

5. EAN 4064328017146
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 3.92

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
