3312-B-TVH FAG

Angular Contact Ball Bearing Double Row

Stock
6 pcs in stock and ready for shipment
Brand FAG
Article number 3312-B-TVH FAG
Inside diameter 60mm
Outside diameter 130mm
Width 54mm
Product description

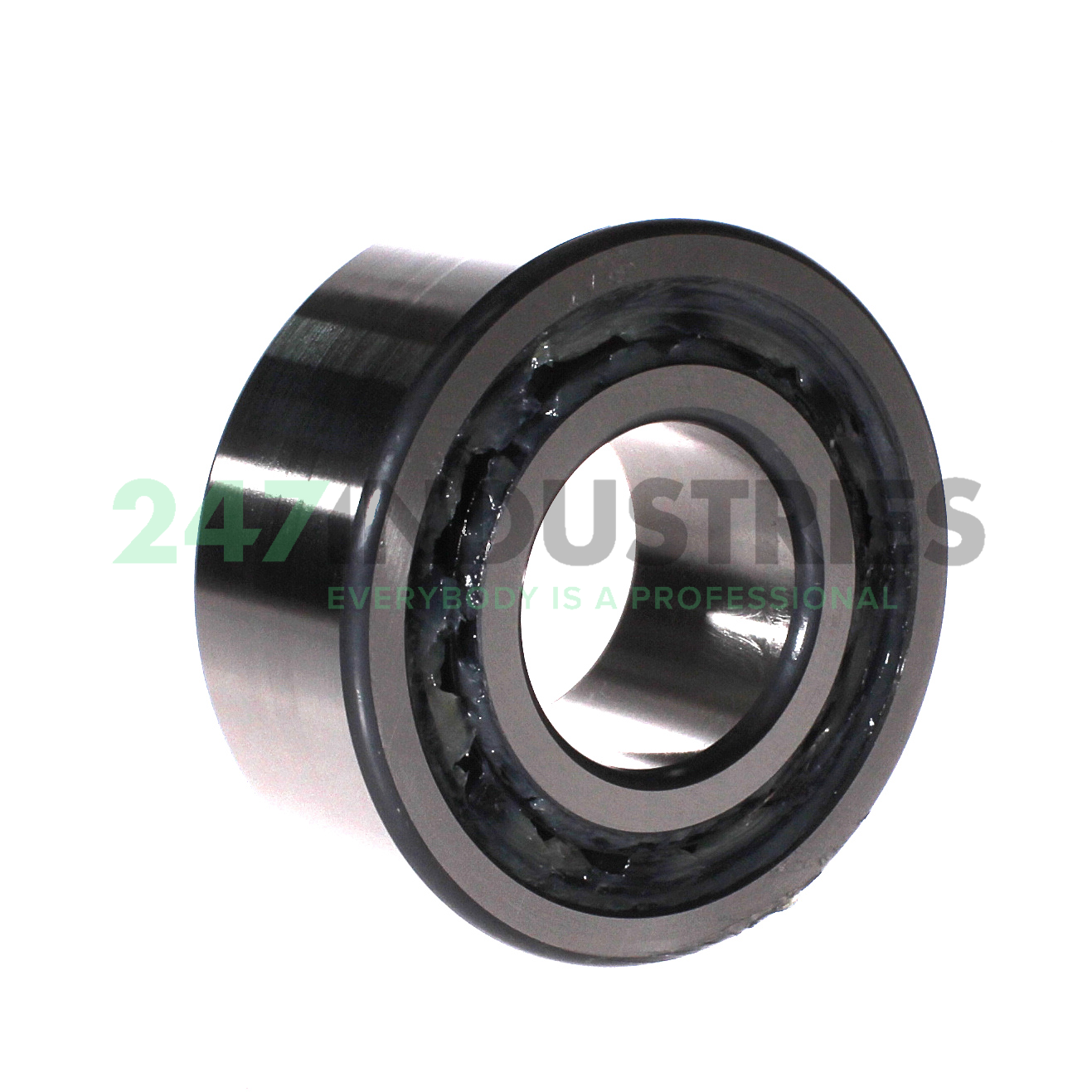

The 3312-B-TVH FAG is a double row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single row angular contact ball bearings in O-arrangement but is slightly narrower. Also, the contact angle and the design of the bearing rings are different. double row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Read more Show less
Help with this product

Downloads and links

Similar to: 3312-B-TVH FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 60
  2. Outer (D) MM 130
  3. Width (B) MM 54
  4. Inner (d) Inch 2.3622
  5. Outer (D) Inch 5.1181
  6. Width (B) Inch 2.126
  7. Width (b) mm 54

Suffix description

  1. B Internal Design Modification
  2. TVH Moulded Polyamide Cage Snap Type, Rolling Element Riding

Technical details

  1. Availability 6 pcs
  2. Brand FAG
  3. Item number 3312-B-TVH FAG
  4. Also known as 0167138260000
    3312-B-XL-TVH
  5. EAN 4012801196765
  6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 3.1

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal No Seal
  3. Cage Type P - Plastic Molded Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 103000
  2. Radial Dynamic Load Rating Cr (N) 126000
  3. Limiting speed (n G) 3950
  4. Reference speed (n ϑr) 5000
  5. ECLASS number 23-05-08-03
  6. ECLASS2 number 23-05-08-03
  7. Medias description Angular contact ball bearing 33..-B-TVH, double row, 1 inner ring
