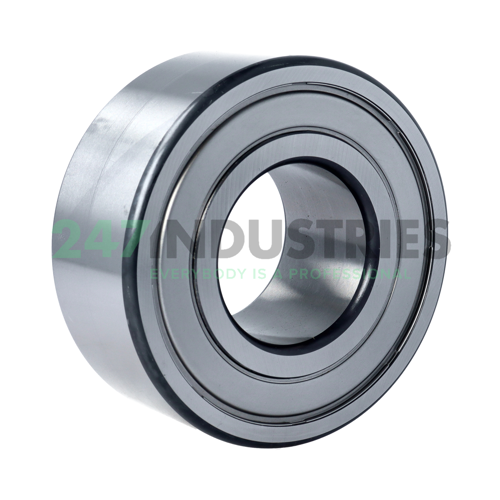

3312-B-2Z-TVH FAG

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 130
3. Width (B) MM 54
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 5.1181
6. Width (B) Inch 2.126
7. Width (b) mm 54

Suffix description

1. B Internal Design Modification
2. 2Z Shields At Both Sides Of The Bearing
3. TVH Moulded Polyamide Cage Snap-Type, Rolling Element Riding

Technical details

1. Availability 4 pcs
2. Brand FAG
3. Item number 3312-B-2Z-TVH FAG
4. Also known as 0861325040000
   3312-2Z

5. EAN 4064327246240
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 3.1

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 103000
2. Limiting speed (n G) 3950
3. Reference speed (n ϑr) 5000
