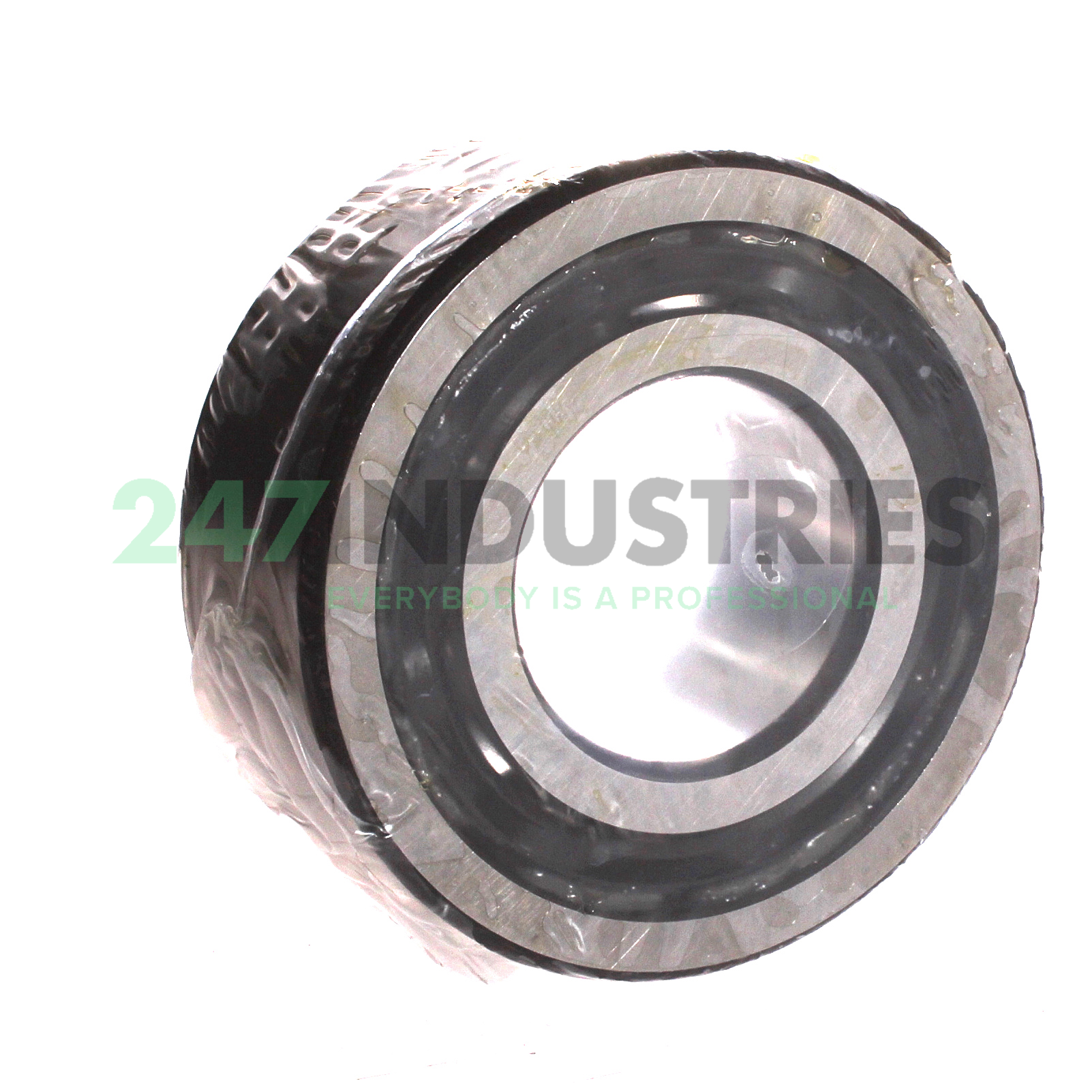

3311BTNGC3 NSK

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 120
3. Width (B) MM 49,2
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 4.7244
6. Width (B) Inch 1.937

Suffix description

1. B 25º Contact Angle
2. TNG Cage Made Of Glass-Fibre Reinforced Polyamide 66
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 4 pcs
2. Brand NSK
3. Item number 3311BTNGC3 NSK
4. EAN 00029176422881
5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 2.255

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
