3311ATN9/C3 SKF

Double row angular contact ball bearing

Stock
12 pcs in stock and ready for shipment
Brand SKF
Article number 3311ATN9/C3 SKF
Inside diameter 55mm
Outside diameter 120mm
Width 49,2mm
Product description

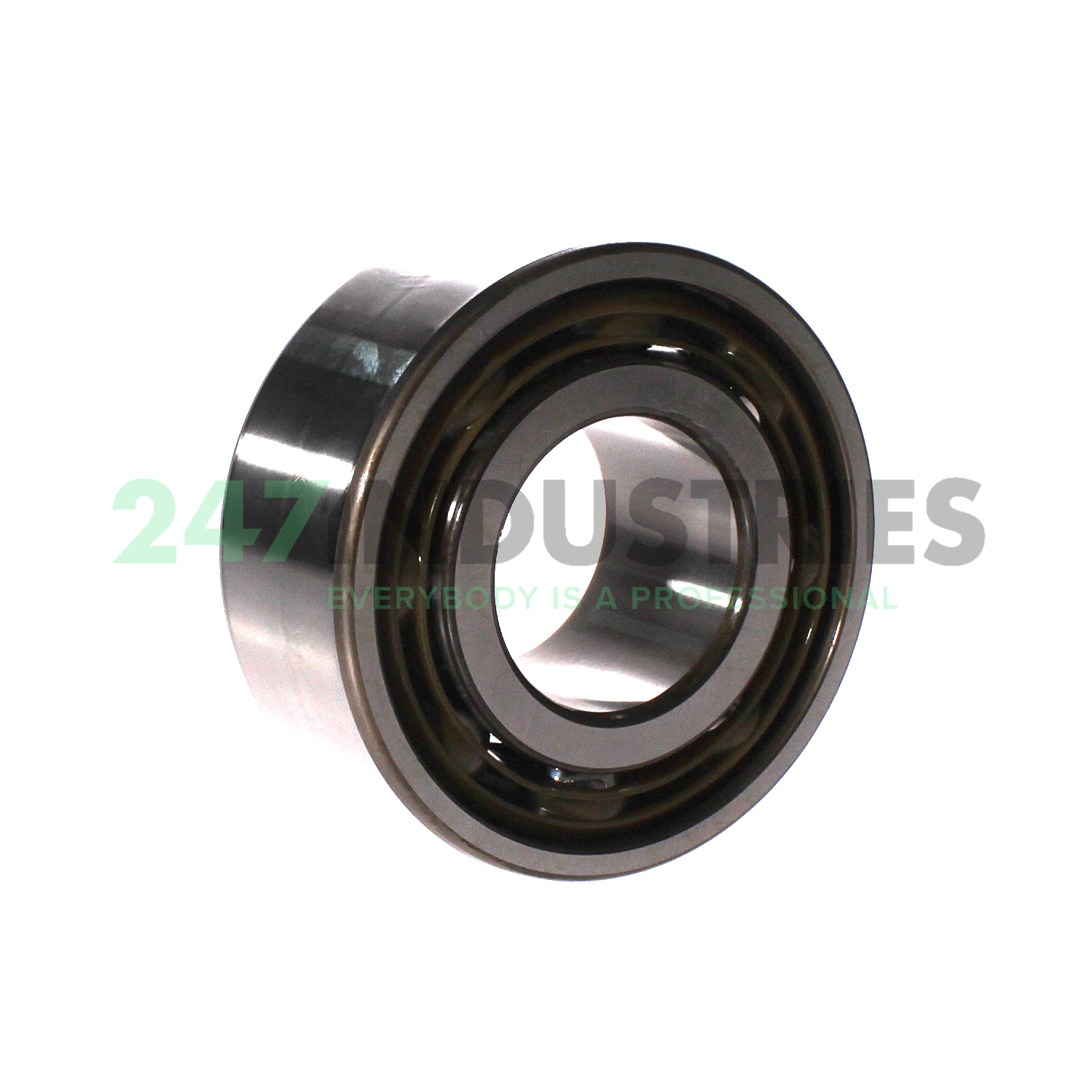

The 3311ATN9/C3 SKF is a double-row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single-row angular contact ball bearings in O-arrangement but is slightly narrower. Double-row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Read more Show less
Help with this product

Similar to: 3311ATN9/C3 SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 55
  2. Outer (D) MM 120
  3. Width (B) MM 49,2
  4. Inner (d) Inch 2.1654
  5. Outer (D) Inch 4.7244
  6. Width (B) Inch 1.937

Suffix description

  1. A Double Row Angular Contact Ball Bearing Without Filling Slots
  2. TN9 Injection Moulded Snap-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered
  3. C3 Internal Clearance Larger Than Normal

Technical details

  1. Availability 12 pcs
  2. Brand SKF
  3. Item number 3311ATN9/C3 SKF
  4. Also known as 3311-BD-TVH-C3
    3311-BD-XL-TVH-C3
    3311BTNGC3
  5. EAN 7316572153406
  6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 2.255

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal No Seal
  3. Cage Type P - Plastic Molded Cage
  4. External Modification No External Modification
  5. Radial Internal Play C3 Internal Play (Higher than Cn)
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Split Inner ring / Outer ring Standard
