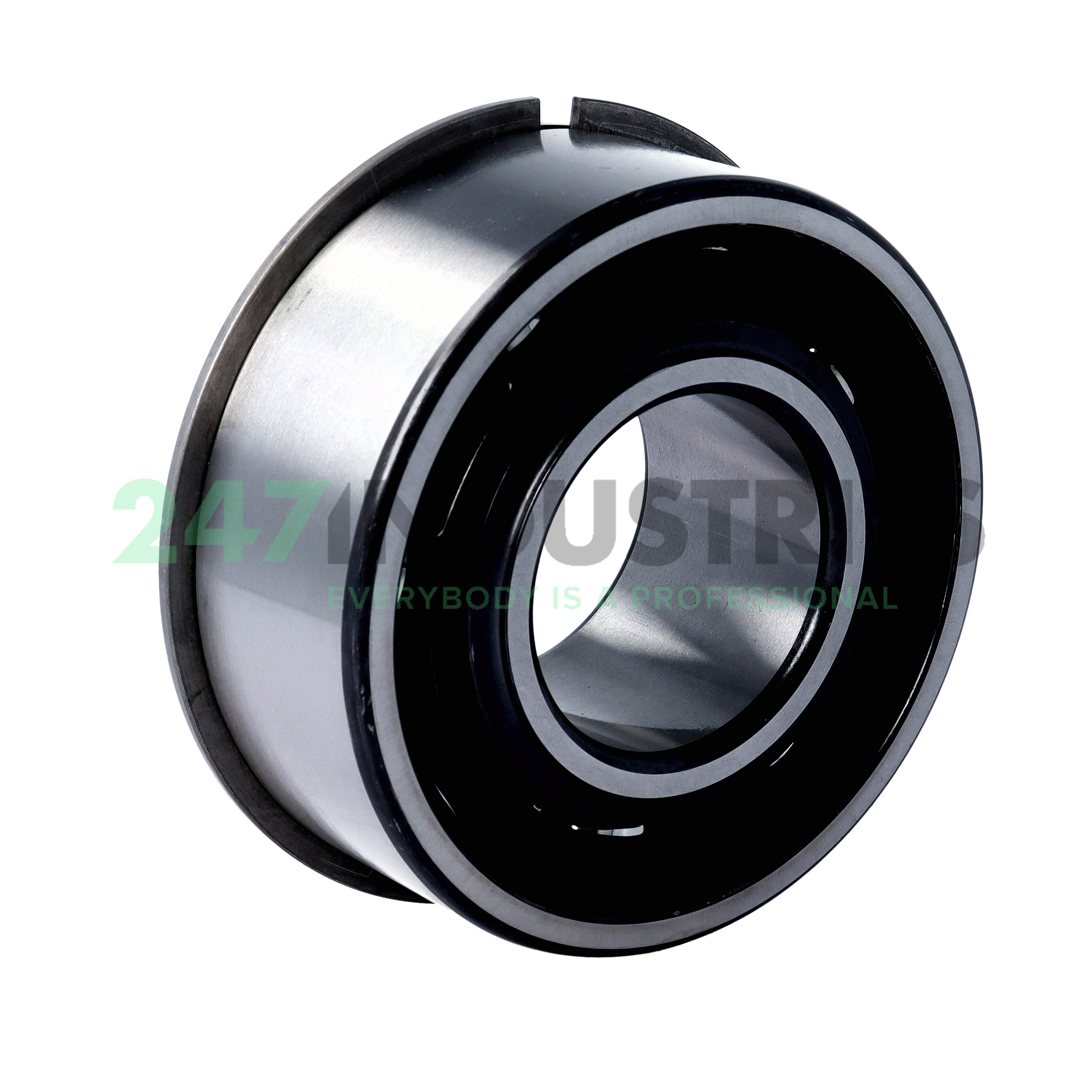

3311ANR/C3 SKF

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 120
3. Width (B) MM 49,2
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 4.7244
6. Width (B) Inch 1.937

Suffix description

1. A Double Row Angular Contact Ball Bearing Without Filling Slots
2. NR Snap Ring Groove In Bearing Outer Ring And Appropriate Snap Ring
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 3 pcs
2. Brand SKF
3. Item number 3311ANR/C3 SKF
4. EAN 7316571382029
5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 2.55

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification NR - Groove and Snap Ring
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
