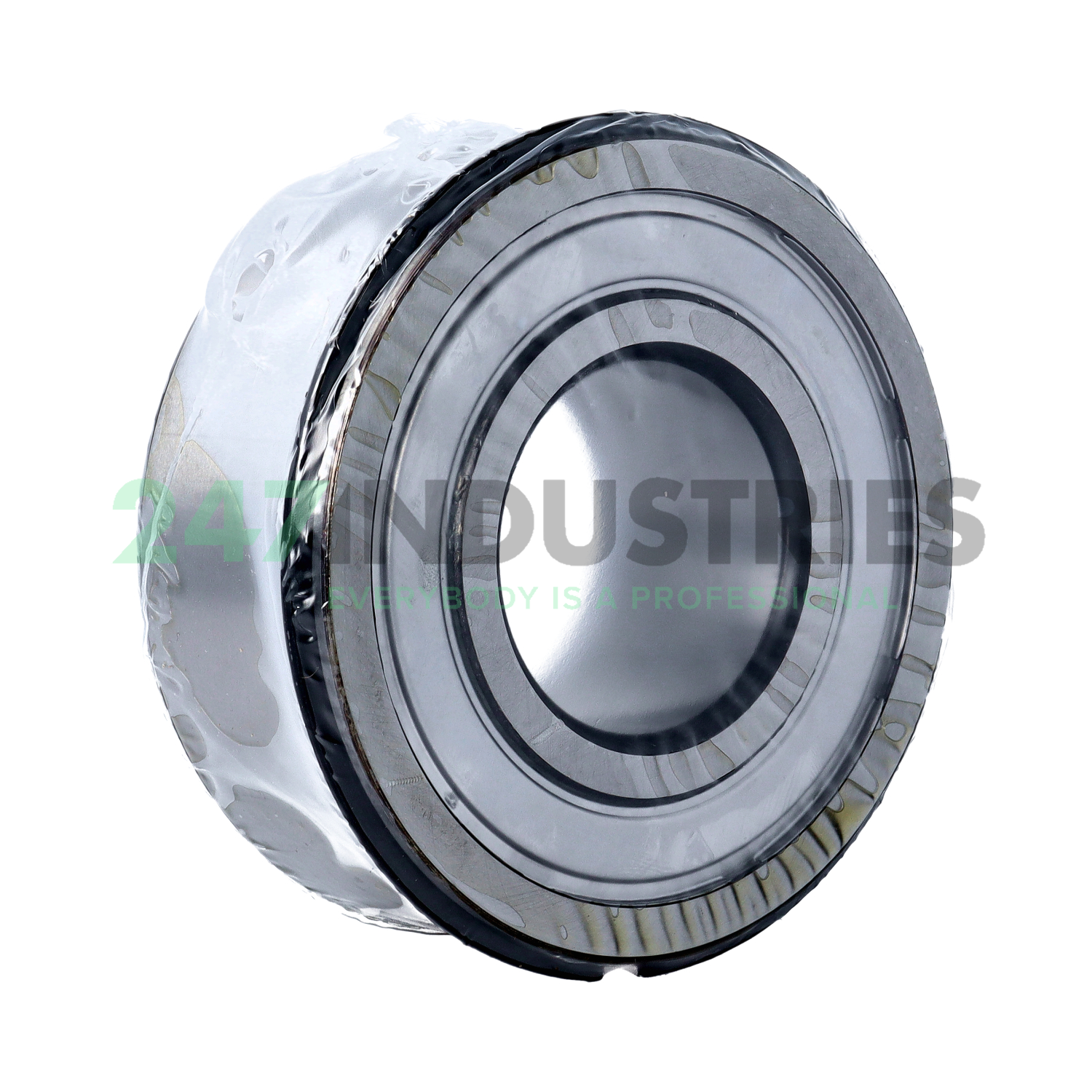

3310B-2ZRNRTNG NSK

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 110
3. Width (B) MM 44,4
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 4.3307
6. Width (B) Inch 1.748

Suffix description

1. B 25º Contact Angle
2. 2ZR Metal Shields At Each Side Of The Bearing
3. NR Snap Ring Groove In Bearing Outer Ring And Appropriate Snap Ring
4. TNG Solid Cage Of Glass-Fibre Reinforced Polyamide, Ball Riding

Technical details

1. Availability 1 pc
2. Brand NSK
3. Item number 3310B-2ZRNRTNG NSK
4. EAN 00029176687327
5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 1.9

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification NR - Groove and Snap Ring
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
