3310A-2ZTN9/C3VT113 SKF

€ 153,30 ex VAT
€ 185,50 in VAT
€ 185,50 in VAT
€ 153,30 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

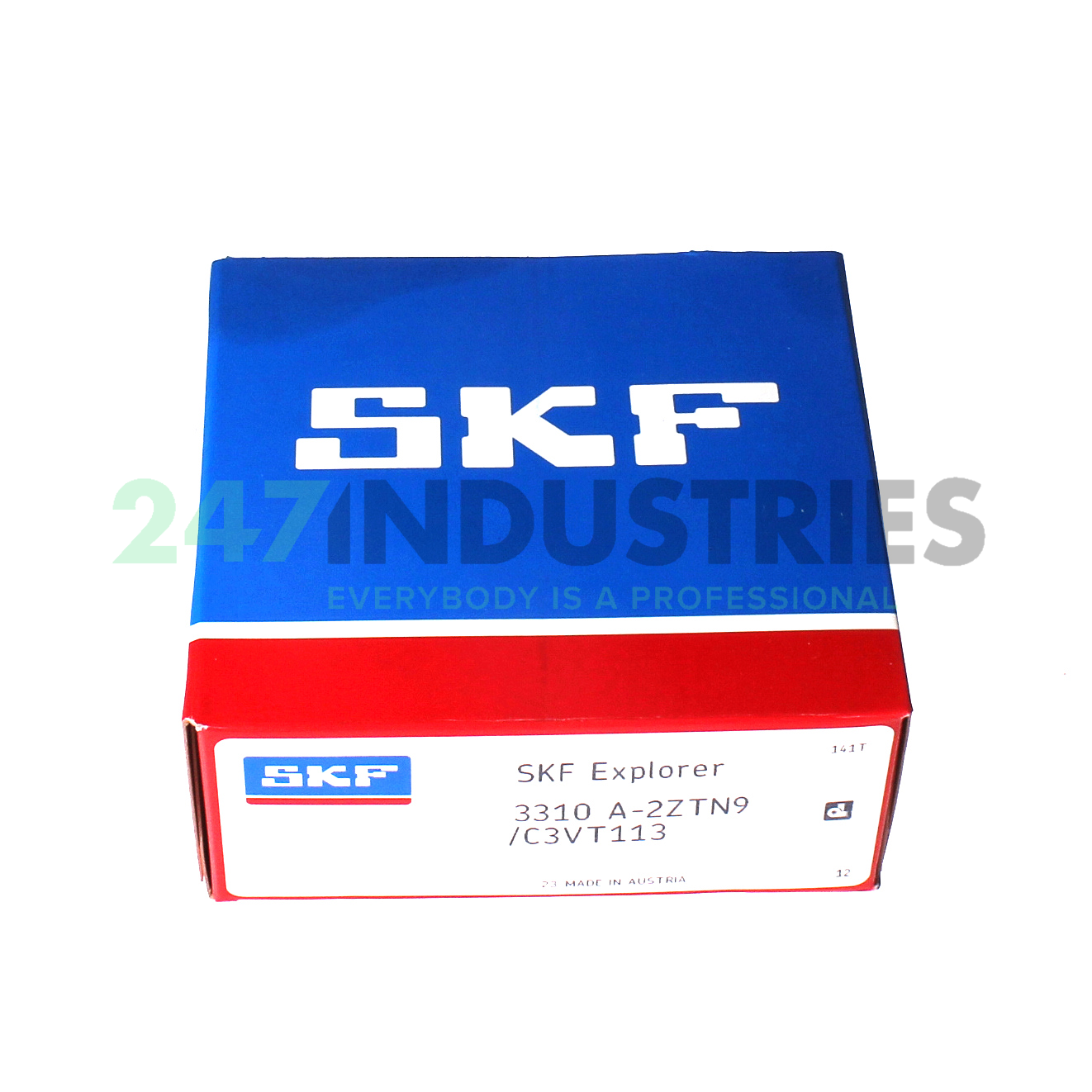

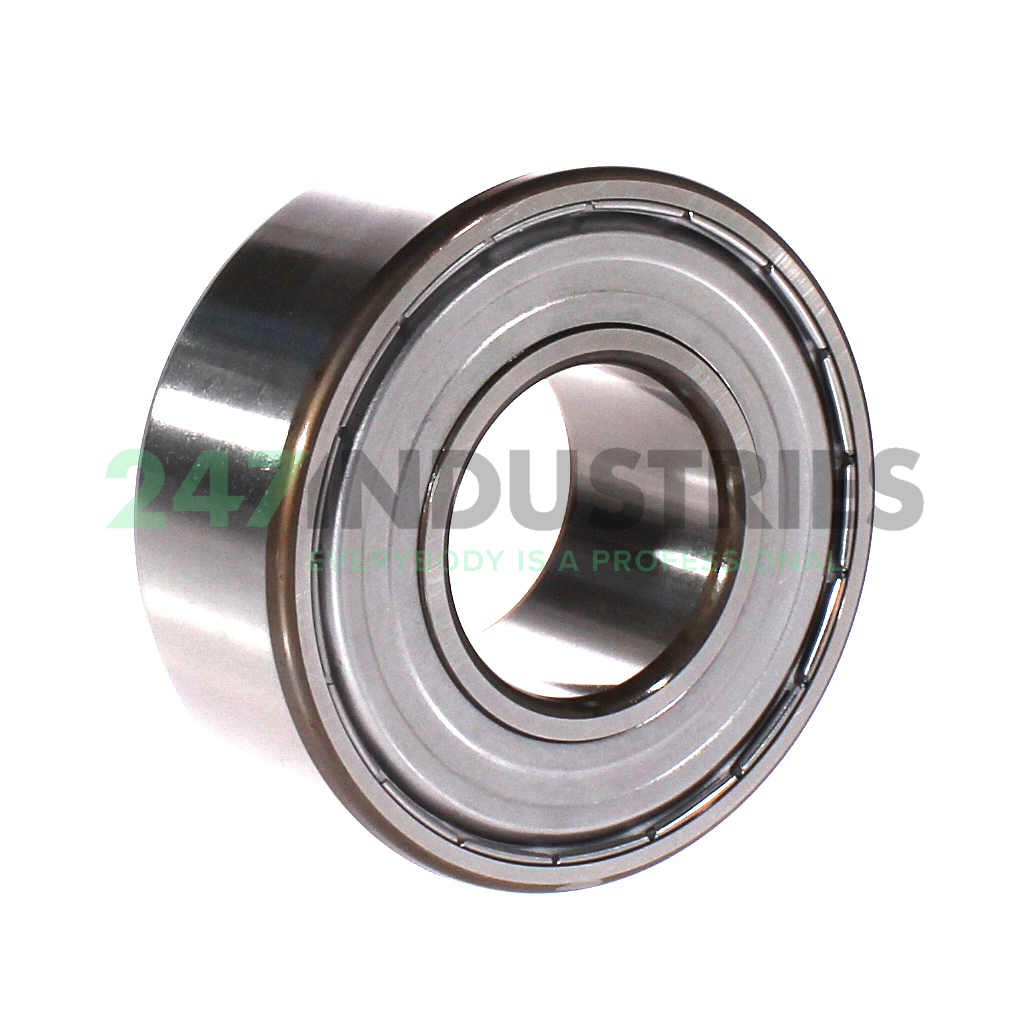

3310A-2ZTN9/C3VT113 SKF

Double row angular contact ball bearing

Stock
2 pcs in stock and ready for shipment
Brand SKF
Article number 3310A-2ZTN9/C3VT113 SKF
Inside diameter 50mm
Outside diameter 110mm
Width 44,4mm
Product description

The 3310A-2ZTN9/C3VT113 SKF is a double-row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single-row angular contact ball bearings in O-arrangement but is slightly narrower. Double-row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Read more Show less
Help with this product

Similar to: 3310A-2ZTN9/C3VT113 SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 50
  2. Outer (D) MM 110
  3. Width (B) MM 44,4
  4. Inner (d) Inch 1.9685
  5. Outer (D) Inch 4.3307
  6. Width (B) Inch 1.748

Suffix description

  1. A Double Row Angular Contact Ball Bearing Without Filling Slots
  2. 2Z Shield Of Pressed Sheet Steel On Both Sides Of The Bearing
  3. TN9 Injection Moulded Snap-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered
  4. C3 Internal Clearance Larger Than Normal
  5. VT113 High/Low Temperature Grease, Lithium Complex

Technical details

  1. Availability 2 pcs
  2. Brand SKF
  3. Item number 3310A-2ZTN9/C3VT113 SKF
  4. Also known as 3310A-2ZTN9/C3
  5. EAN 7316572864647
  6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 1.711

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal ZZ/2Z - Steel Seal on Two Sides
  3. Cage Type P - Plastic Molded Cage
  4. External Modification No External Modification
  5. Radial Internal Play C3 Internal Play (Higher than Cn)
  6. Precision Standard Precision
  7. Lubrication Higher and Lower Temperature Grease
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Split Inner ring / Outer ring Standard
Show all details Show less
