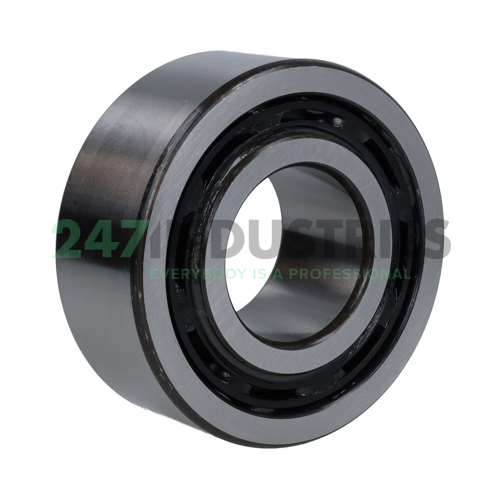

3309B TNG NSK

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 100
3. Width (B) MM 39,7
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.937
6. Width (B) Inch 1.563

Suffix description

1. B 25º Contact Angle
2. TNG Cage Made Of Glass-Fibre Reinforced Polyamide 66

Technical details

1. Availability 1 pc
2. Brand NSK
3. Item number 3309B TNG NSK
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 1.32

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
