3309ATN9/C3 SKF

Name: 3309ATN9/C3 SKF
Brand: SKF

€ 85,87 ex VAT

€ 103,90 in VAT

€ 85,87 ex VAT

	Guaranteed same day shipment on orders placed before 18.00h (CET)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

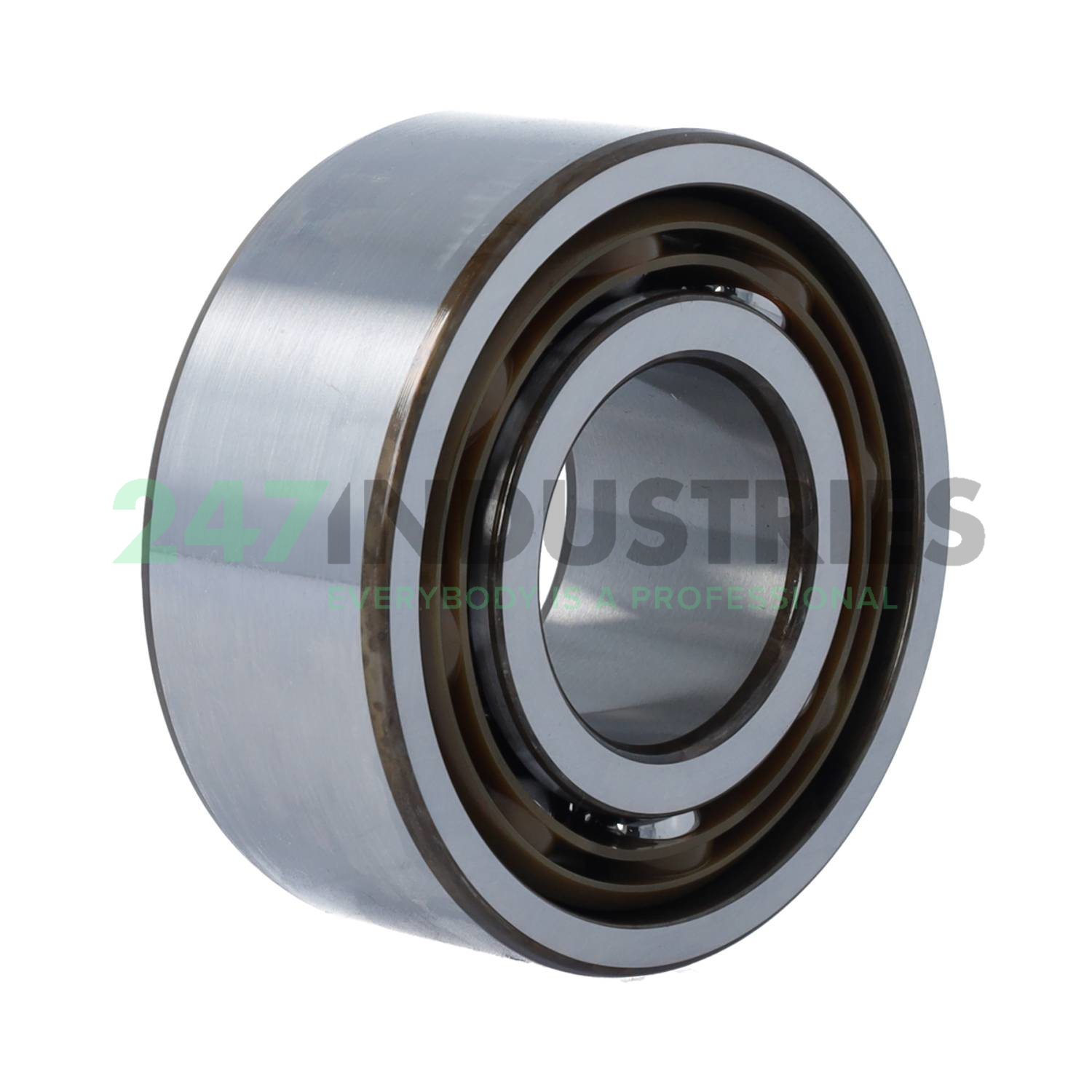

3309ATN9/C3 SKF

Double row angular contact ball bearing

Stock	1 pc in stock and ready for shipment
Brand	SKF
Article number	3309ATN9/C3 SKF
Inside diameter	45mm
Outside diameter	100mm
Width	39,7mm

Product description

The 3309ATN9/C3 SKF is a double-row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single-row angular contact ball bearings in O-arrangement but is slightly narrower. Double-row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Start a chat
Call us at: +31 (0)85 00 22 247
Email us at: help@247industries.com Response within 24h

Similar to: 3309ATN9/C3 SKF

Loading similair products

Product specifications

Inside diameter 45mm
Outside diameter 100mm
Width 39,7mm

All dimensions

Inner (d) MM 45
Outer (D) MM 100
Width (B) MM 39,7
Inner (d) Inch 1.7717
Outer (D) Inch 3.937
Width (B) Inch 1.563

Suffix description

A Double Row Angular Contact Ball Bearing Without Filling Slots
TN9 Injection Moulded Snap-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered
C3 Internal Clearance Larger Than Normal
