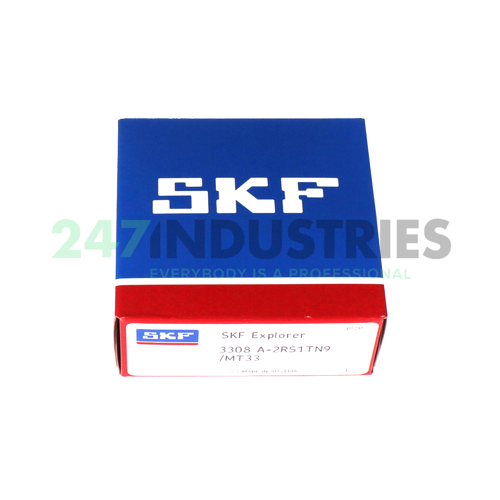

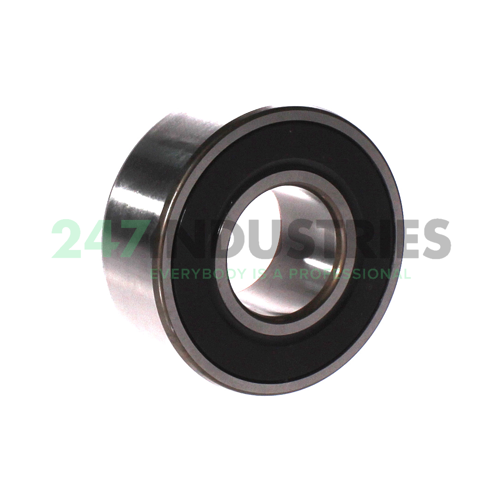

3308A-2RS1TN9/MT33 SKF

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 90
3. Width (B) MM 36,5
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.5433
6. Width (B) Inch 1.437

Suffix description

1. A Double Row Angular Contact Ball Bearing Without Filling Slots
2. 2RS1 Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing
3. TN9 Injection Moulded Snap-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered
4. MT33 Lithium Grease, Medium Temp. 74 cSt @ 40°C, -30°C/+120°C, A Two-Figure Number Following MT Identifies The Actual Grease. An Additional Letter Or Letter/Figure Combination As Mentioned Under "HT" Identifies Filling Degrees Other Than Standard. Examples: MT33 Or MT37F9

Technical details

1. Availability 43 pcs
2. Brand SKF
3. Item number 3308A-2RS1TN9/MT33 SKF
4. Also known as 3308A-2RS1TN9
   3308-B-2RSR-TVH
   3308-B-2RS-TV

5. EAN 7316570958751
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.955

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication M - Grease with Lithium Thickener
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
