3307A SKF

Double row angular contact ball bearing

Stock
15 pcs in stock and ready for shipment
Brand SKF
Article number 3307A SKF
Inside diameter 35mm
Outside diameter 80mm
Width 34,9mm
Product description

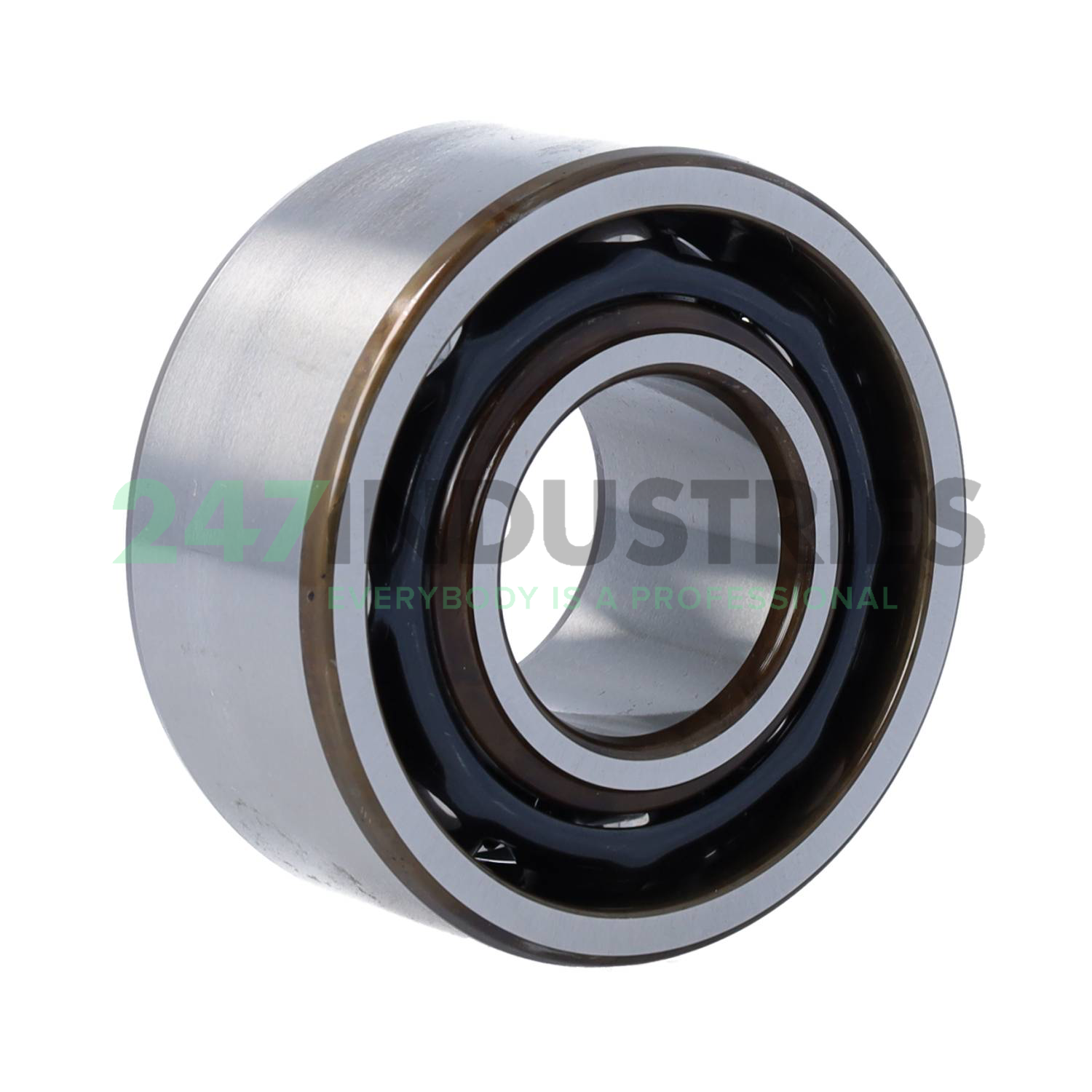

The 3307A SKF is a double-row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single-row angular contact ball bearings in O-arrangement but is slightly narrower. Double-row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Read more Show less
Help with this product

Similar to: 3307A SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 35
  2. Outer (D) MM 80
  3. Width (B) MM 34,9
  4. Inner (d) Inch 1.378
  5. Outer (D) Inch 3.1496
  6. Width (B) Inch 1.374

Suffix description

  1. A Double Row Angular Contact Ball Bearing Without Filling Slots

Technical details

  1. Availability 15 pcs
  2. Brand SKF
  3. Item number 3307A SKF
  4. EAN 7316571185514
  5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 0.733

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal No Seal
  3. Cage Type S - Steel or Standard Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Split Inner ring / Outer ring Standard
