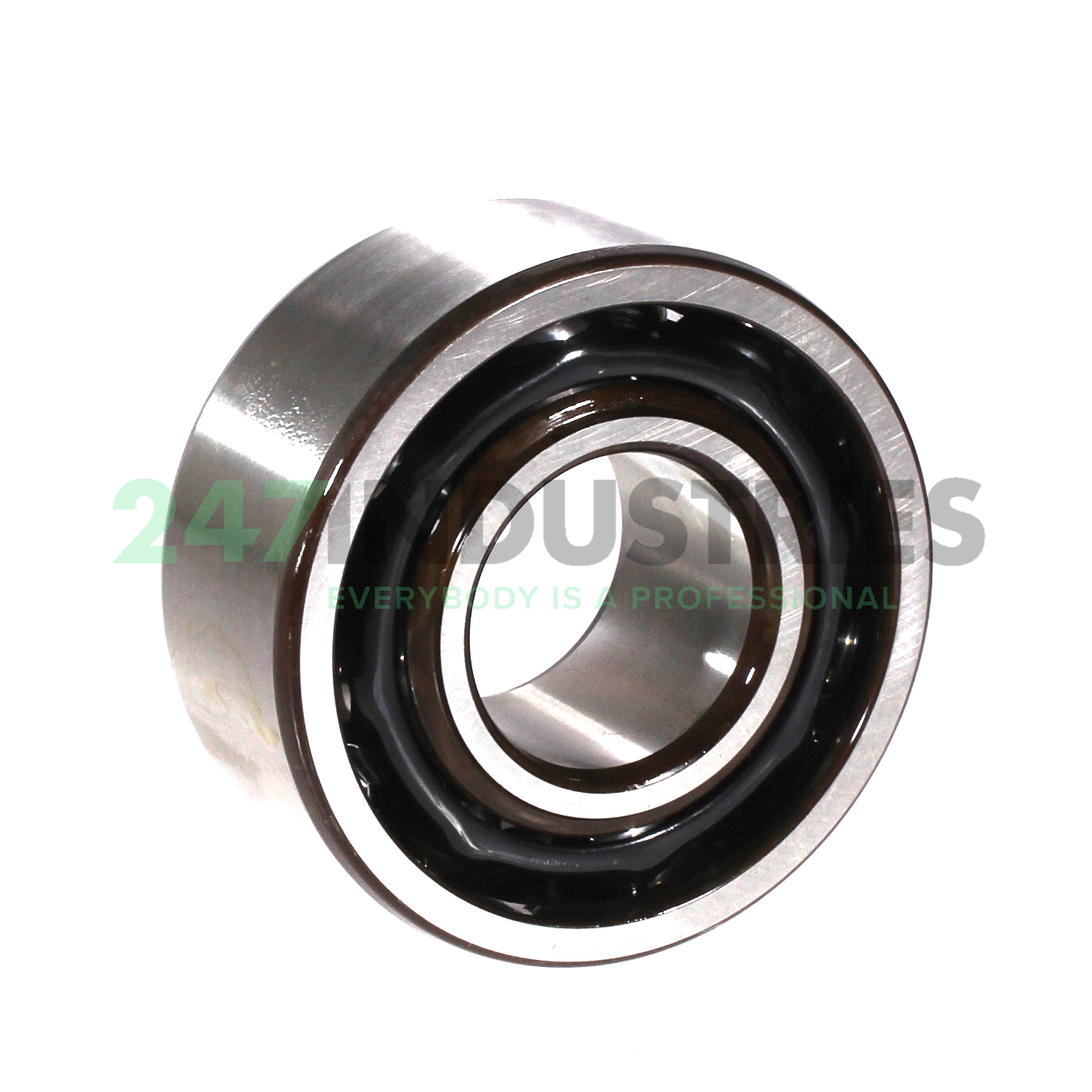

3307A/C3 SKF

Double row angular contact ball bearing

Stock
16 pcs in stock and ready for shipment
Brand SKF
Article number 3307A/C3 SKF
Inside diameter 35mm
Outside diameter 80mm
Width 34,9mm
Product description

The 3307A/C3 SKF is a double-row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single-row angular contact ball bearings in O-arrangement but is slightly narrower. Double-row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Read more Show less
Help with this product

Similar to: 3307A/C3 SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 35
  2. Outer (D) MM 80
  3. Width (B) MM 34,9
  4. Inner (d) Inch 1.378
  5. Outer (D) Inch 3.1496
  6. Width (B) Inch 1.374

Suffix description

  1. A Double Row Angular Contact Ball Bearing Without Filling Slots
  2. C3 Internal Clearance Larger Than Normal

Technical details

  1. Availability 16 pcs
  2. Brand SKF
  3. Item number 3307A/C3 SKF
  4. EAN 7316571185521
  5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 0.733

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal No Seal
  3. Cage Type S - Steel or Standard Cage
  4. External Modification No External Modification
  5. Radial Internal Play C3 Internal Play (Higher than Cn)
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Split Inner ring / Outer ring Standard
Show all details Show less
