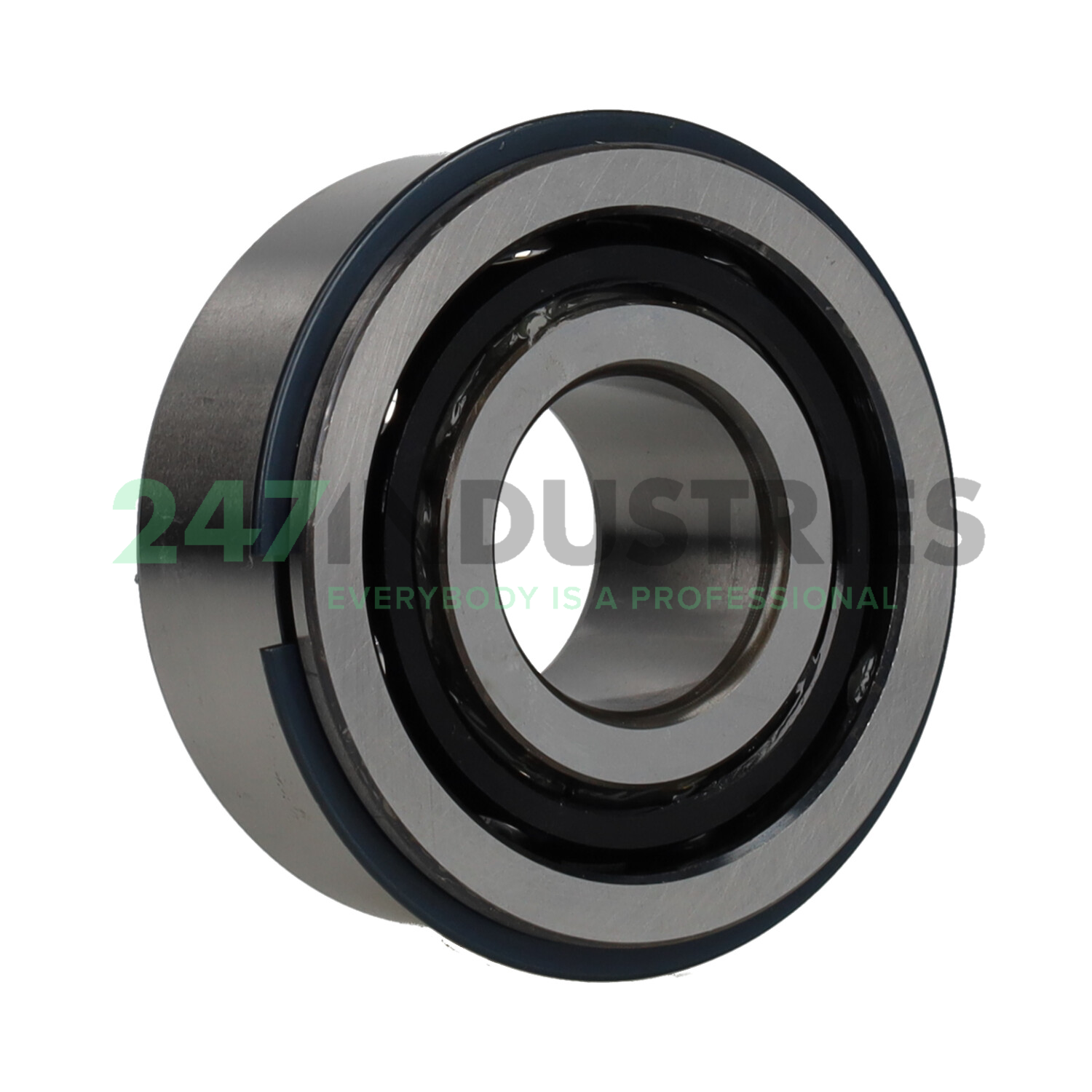

3306BNRTNG NSK

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 72
3. Width (B) MM 30,2
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.8346
6. Width (B) Inch 1.189

Suffix description

1. B 25º Contact Angle
2. NR Snap Ring Groove In Bearing Outer Ring And Appropriate Snap Ring
3. TNG Cage Made Of Glass-Fibre Reinforced Polyamide 66

Technical details

1. Availability 4 pcs
2. Brand NSK
3. Item number 3306BNRTNG NSK
4. EAN 00029176644726
5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.54

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification NR - Groove and Snap Ring
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
