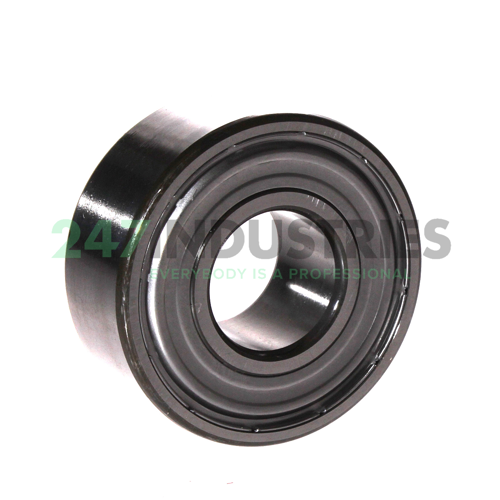

3306A-2Z SKF

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 72
3. Width (B) MM 30,2
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.8346
6. Width (B) Inch 1.189

Suffix description

1. A Double Row Angular Contact Ball Bearing Without Filling Slots
2. 2Z Shield Of Pressed Sheet Steel On Both Sides Of The Bearing

Technical details

1. Availability 7 pcs
2. Brand SKF
3. Item number 3306A-2Z SKF
4. EAN 7316573932291
5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.574

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
