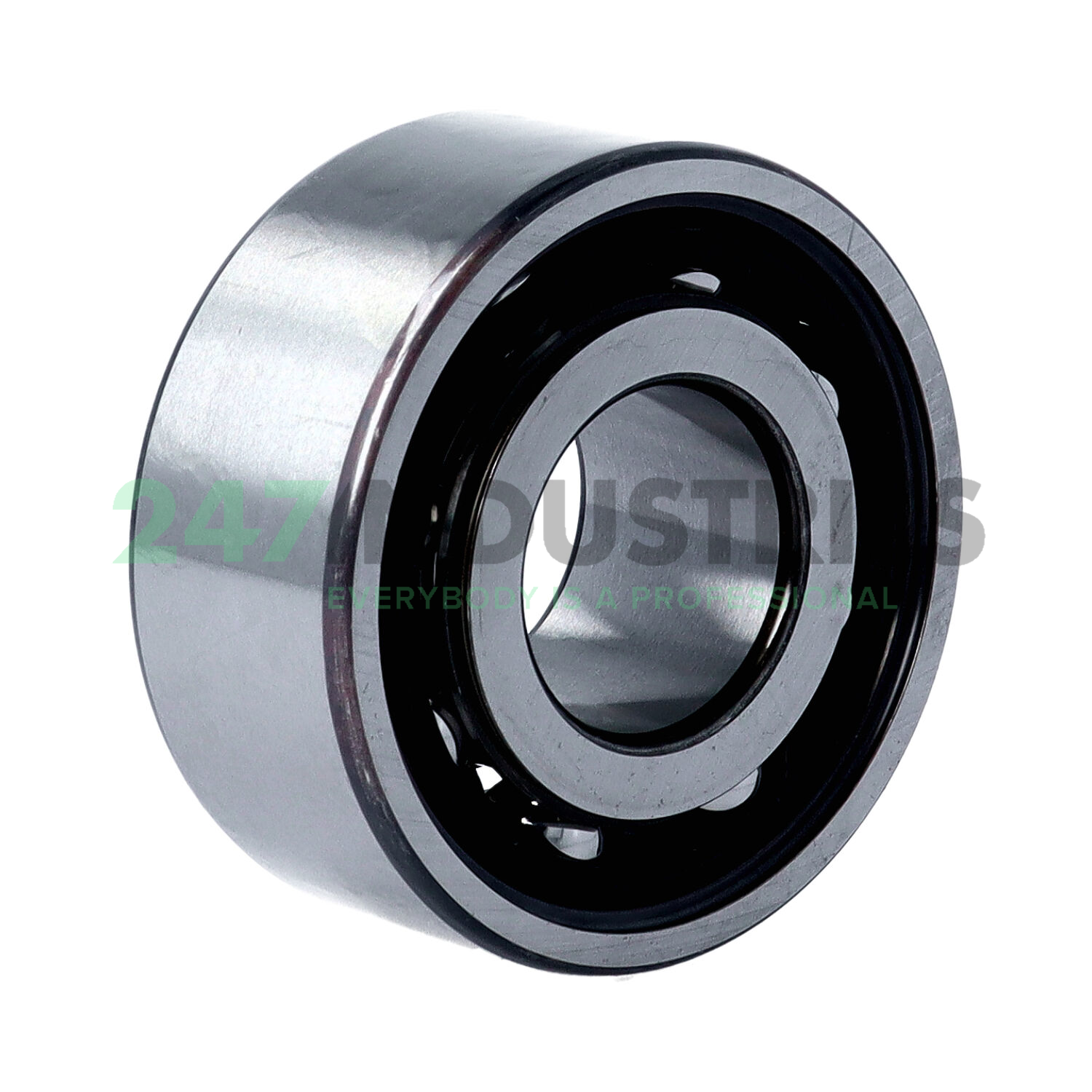

3306-BD-XL-TVH-C2 FAG

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 72
3. Width (B) MM 30,2
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.8346
6. Width (B) Inch 1.189
7. Width (b) mm 30,2

Suffix description

1. BD Modified Internal Construction, Contact Angle α=30°, Without Filling Slot
2. XL X-Life
3. TVH Moulded Polyamide Cage Snap Type, Rolling Element Riding
4. C2 Bearing Internal Clearance Smaller Than Normal

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 3306-BD-XL-TVH-C2 FAG
4. Also known as 0599478610020

5. EAN 4012802644265
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.54

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C2 Internal Play (Less than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 29500
2. Limiting speed (n G) 10400
3. Reference speed (n ϑr) 8500
