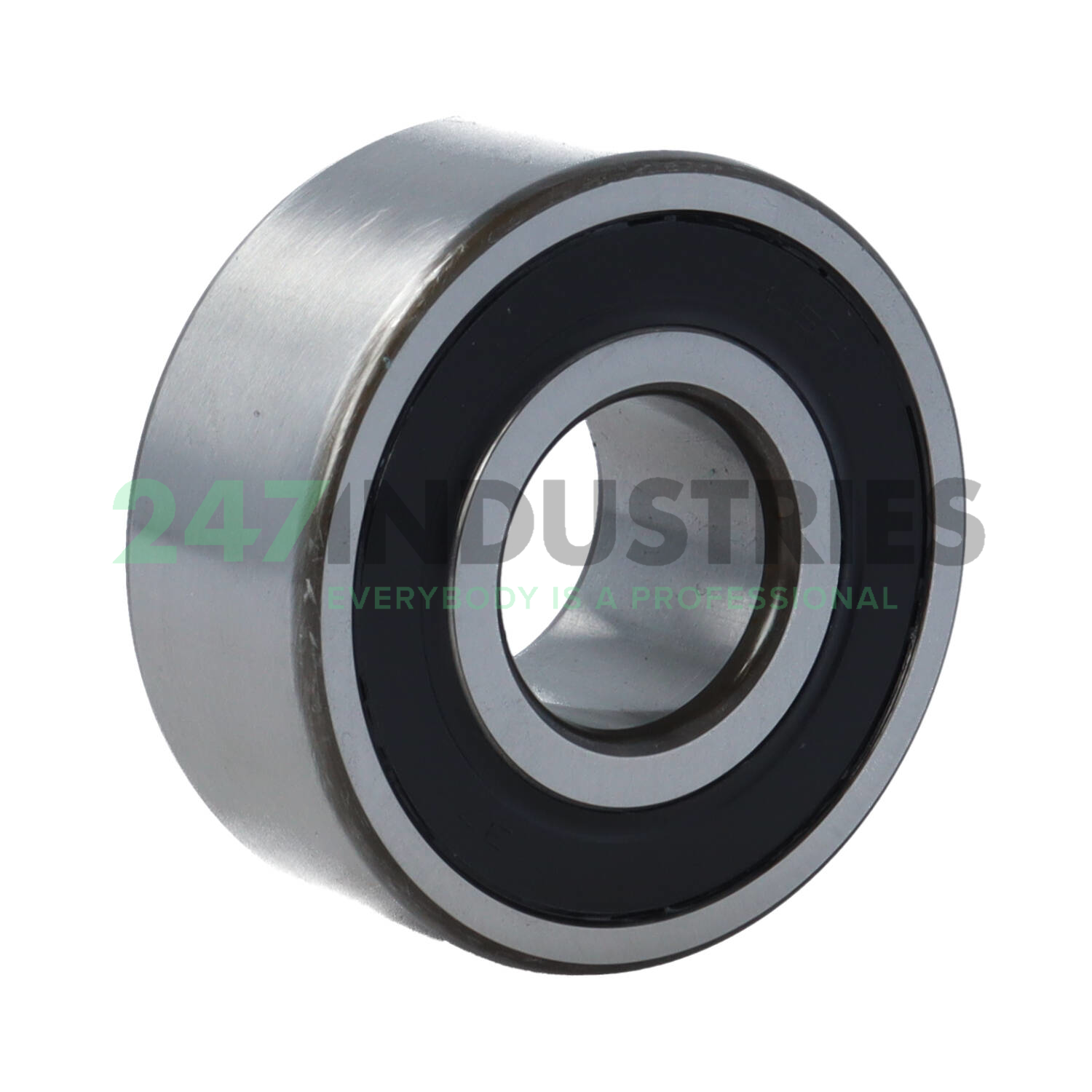

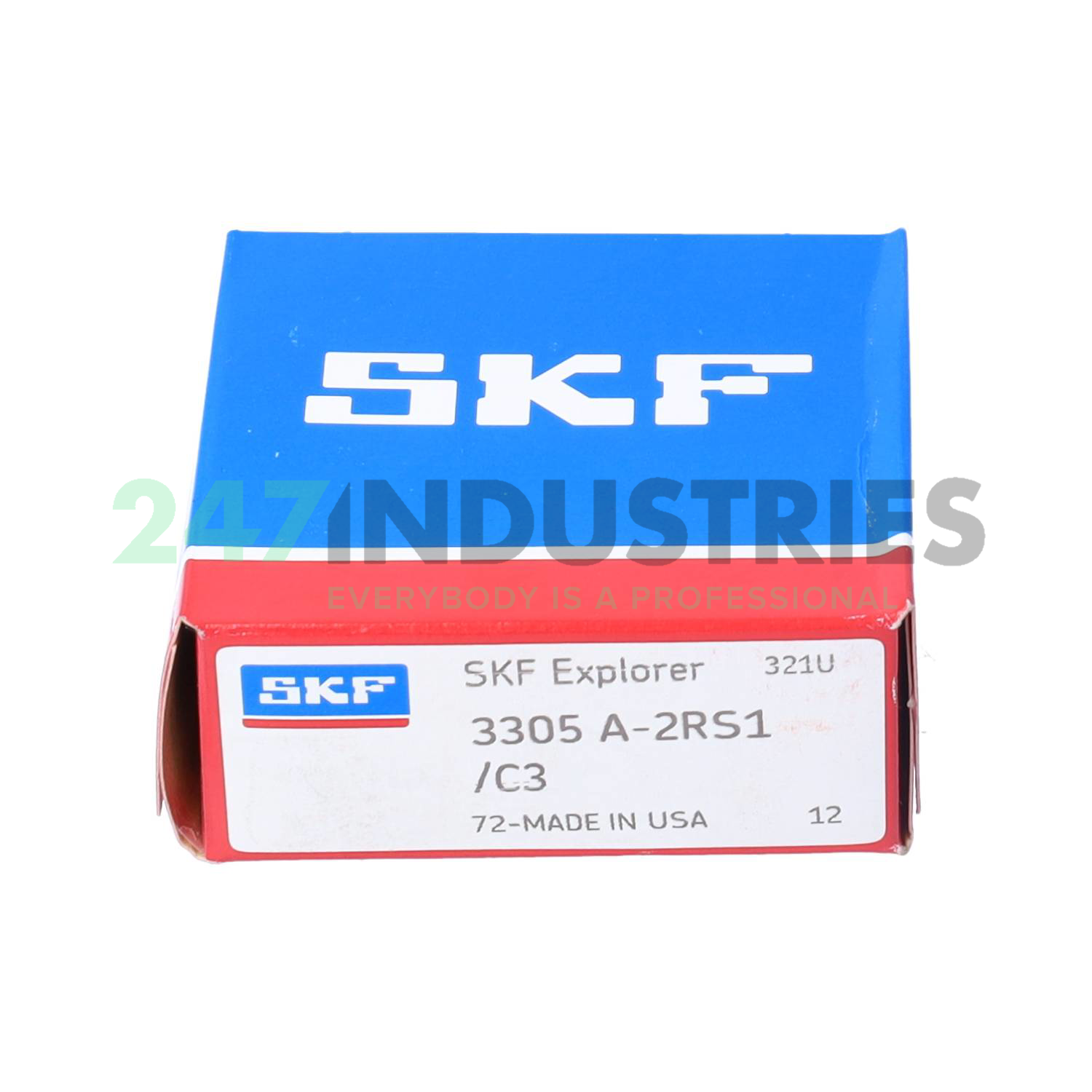

3305A-2RS1/C3 SKF

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 62
3. Width (B) MM 25,4
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.4409
6. Width (B) Inch 1

Suffix description

1. A Double Row Angular Contact Ball Bearing Without Filling Slots
2. 2RS1 Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 3 pcs
2. Brand SKF
3. Item number 3305A-2RS1/C3 SKF
4. EAN 7316572567944
5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.35

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
