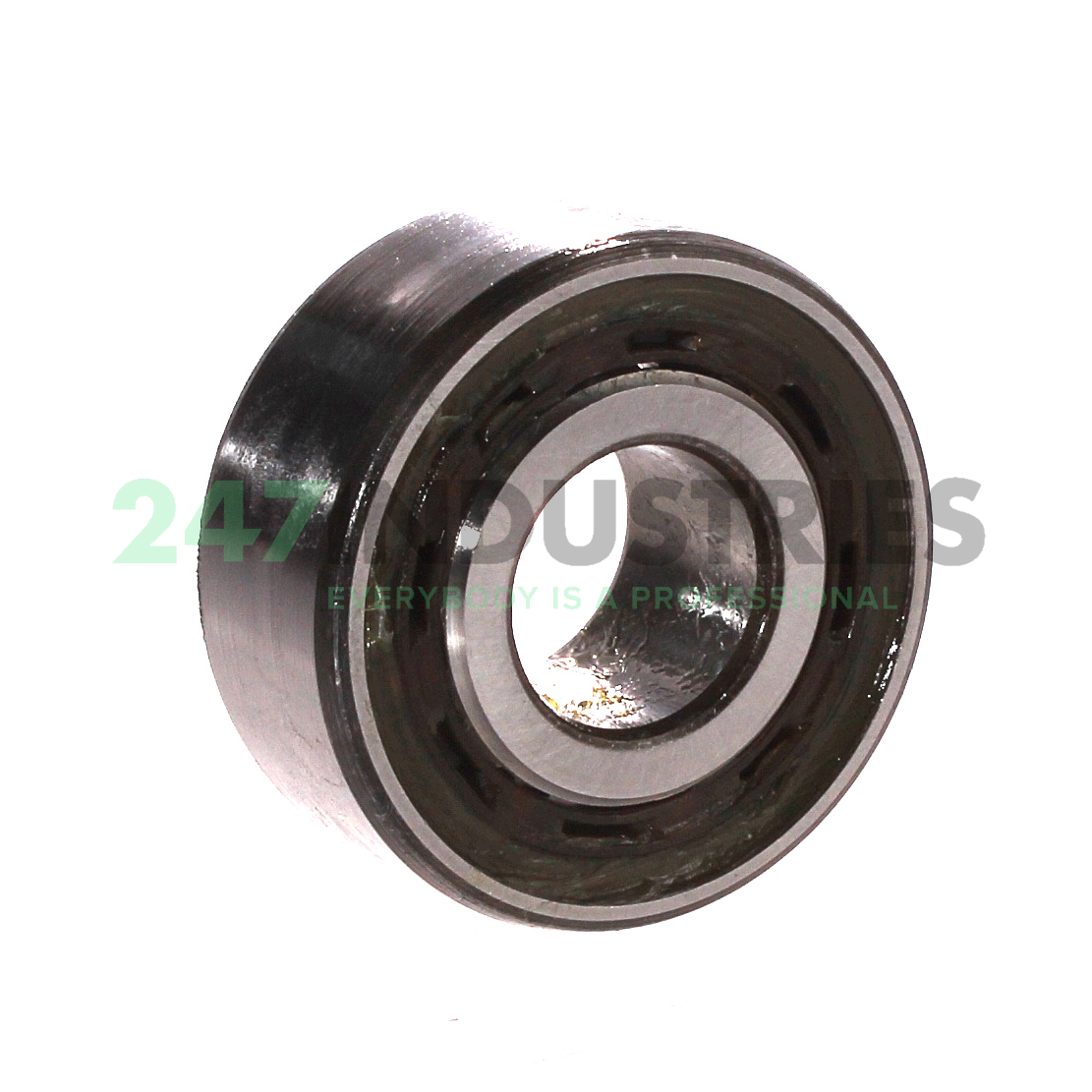

3305.AC3 SNR

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 62
3. Width (B) MM 25,4
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.4409
6. Width (B) Inch 1

Suffix description

1. A No Filling Slot With Polyamide Cage, Angle 25°
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 1 pc
2. Brand SNR
3. Item number 3305.AC3 SNR
4. Also known as 3305A J30
   3305ATN9/C3
   3305-BD-TVH-C3
   3305-BD-XL-TVH-C3

5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.339

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
