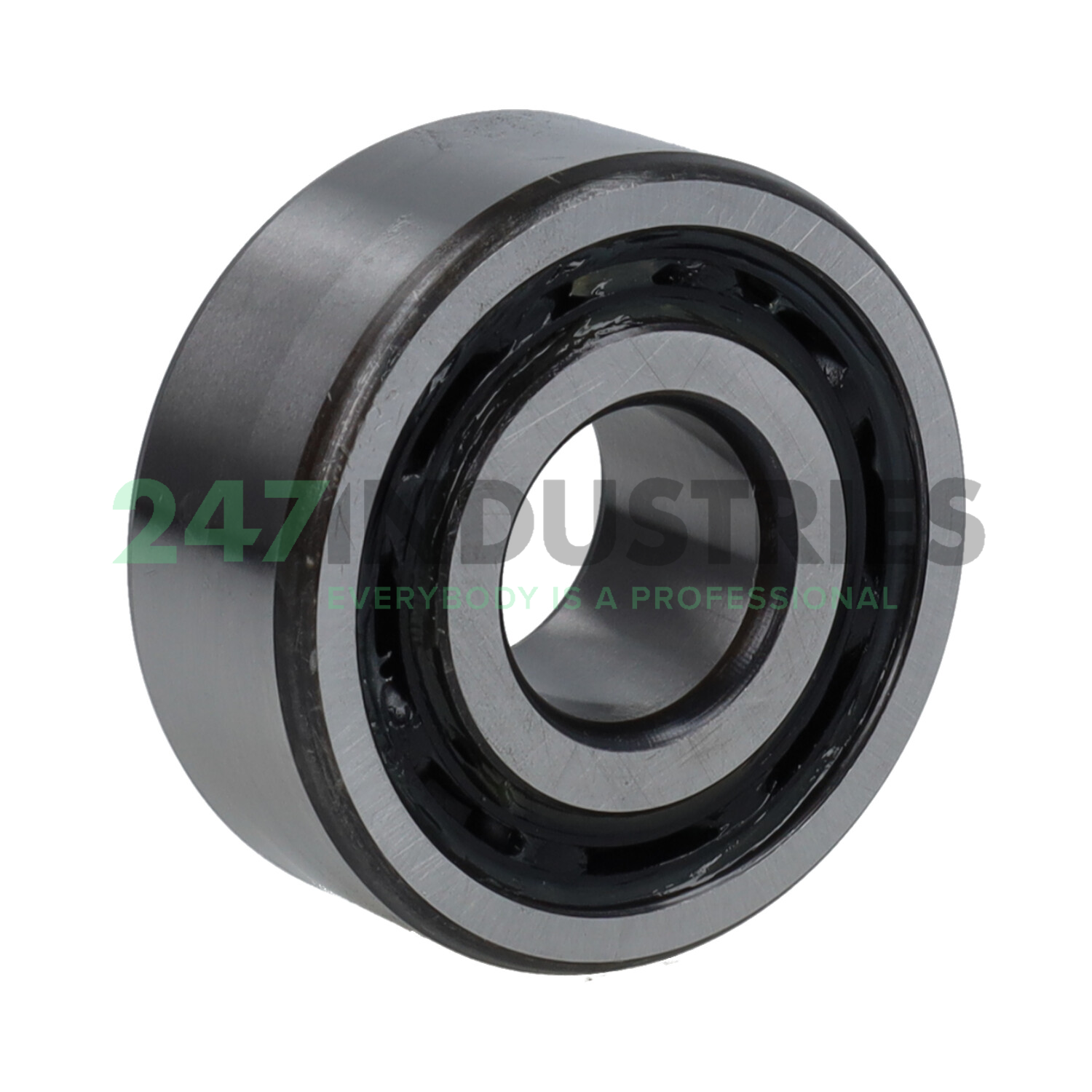

3304BTNH YRLN5 RHP

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 52
3. Width (B) MM 22,2
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.874

Suffix description

1. B No Filling Slots. Contact Angles Diverge - 25º
2. TNH Polyamide Snap-On Cage, Located On The Rolling Elements
3. YRL Lubricant, Operating Temperature -30 ~ 120°C
4. N Normal Filling 35%
5. 5 Standard Single Pack. Bearings In Polythene Bags Or Hizex Film Are Placed In Individual Cardboard Boxes. The Individual Boxes Are Then Placed In A Cardboard Outer Carton And Polystrene Filled

Technical details

1. Availability 6 pcs
2. Brand RHP
3. Item number 3304BTNH YRLN5 RHP
4. Also known as 3304BTNH

5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.22

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
