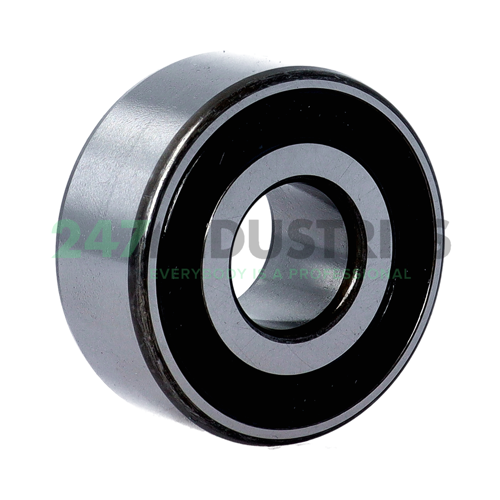

3304-BD-XL-2HRS-TVH-L405 FAG

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 52
3. Width (B) MM 22,2
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.874
7. Width (b) mm 22,2

Suffix description

1. BD Modified Internal Construction, Contact Angle α=30°, Without Filling Slot
2. XL X-Life
3. 2HRS Lip Seals On Both Sides Made From Nitrile Butadiene Rubber, These Designs Are Lubricated For Life Using A High Quality Grease And Are Suitable For Moderate Speeds. The Frictional Torque And Heat Generation Are Lower Than With The Previous RSR Seal
4. TVH Moulded Polyamide Cage Snap-Type, Rolling Element Riding
5. L405 Lubricant

Technical details

1. Availability 61 pcs
2. Brand FAG
3. Item number 3304-BD-XL-2HRS-TVH-L405 FAG
4. Also known as 0868565100000
   3304-BD-2HRS-TVH-L405

5. EAN 4054369018691
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.22

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RH - High Speed Low Friction Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 15900
2. Limiting speed (n G) 11000
