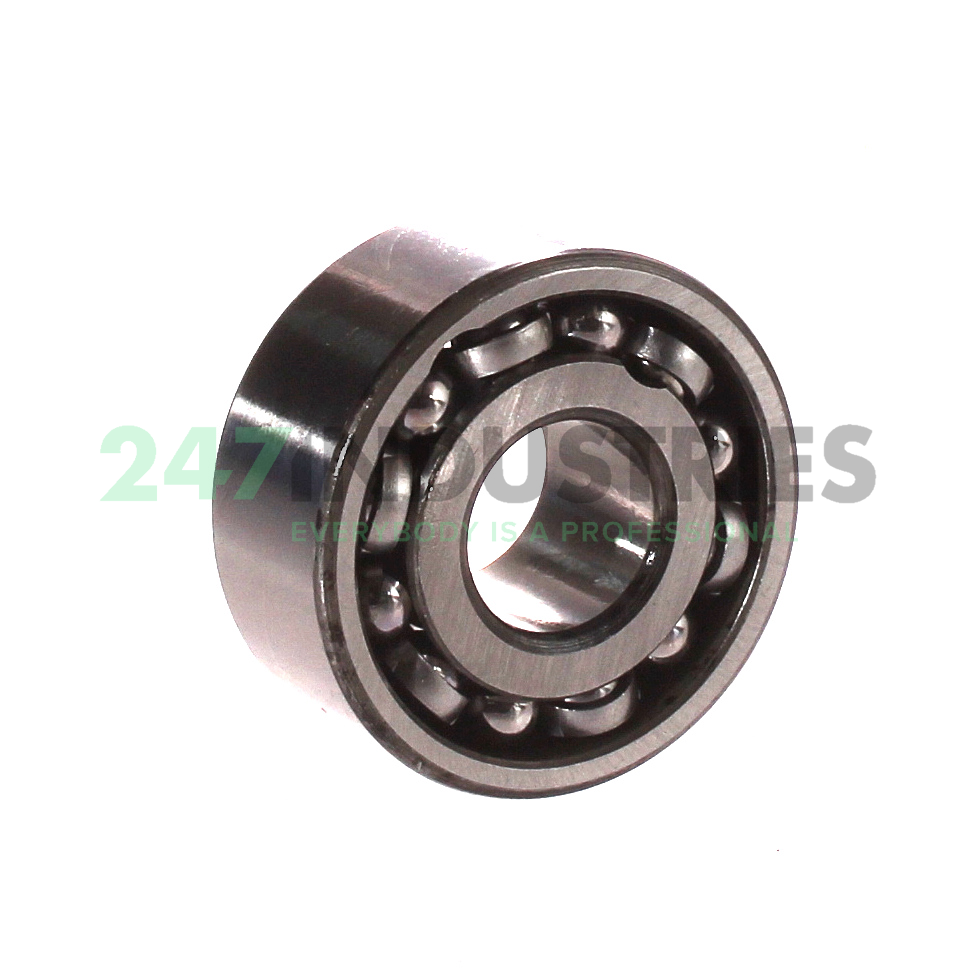

3304.BC3 SNR

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 52
3. Width (B) MM 22,2
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.874

Suffix description

1. B Ball Bearing Angular Contact, Double Row, With Filling Slots
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 2 pcs
2. Brand SNR
3. Item number 3304.BC3 SNR
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.221

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
