3303A-2ZTN9 SKF

Name: 3303A-2ZTN9 SKF
Brand: SKF

€ 53,17 ex VAT

€ 64,34 in VAT

€ 53,17 ex VAT

	58 similar products for 3303A-2ZTN9 SKF in stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

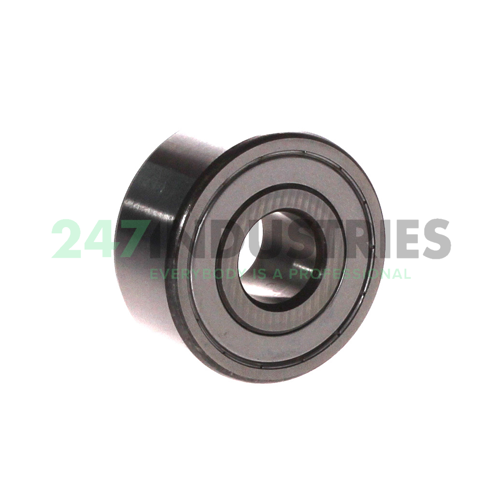

3303A-2ZTN9 SKF

Double row angular contact ball bearing

Stock	not in stock
Brand	SKF
Article number	3303A-2ZTN9 SKF
Inside diameter	17mm
Outside diameter	47mm
Width	22,2mm

Product description

The 3303A-2ZTN9 SKF is a double-row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single-row angular contact ball bearings in O-arrangement but is slightly narrower. Double-row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Start a chat
Call us at: +31 (0)85 00 22 247
Email us at: help@247industries.com Response within 24h

Similar to: 3303A-2ZTN9 SKF

Loading similair products

Product specifications

Inside diameter 17mm
Outside diameter 47mm
Width 22,2mm

All dimensions

Inner (d) MM 17
Outer (D) MM 47
Width (B) MM 22,2
Inner (d) Inch 0.6693
Outer (D) Inch 1.8504
Width (B) Inch 0.874

Suffix description

2Z Shield Of Pressed Sheet Steel On Both Sides Of The Bearing
TN9 Injection Moulded Snap-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centerd
