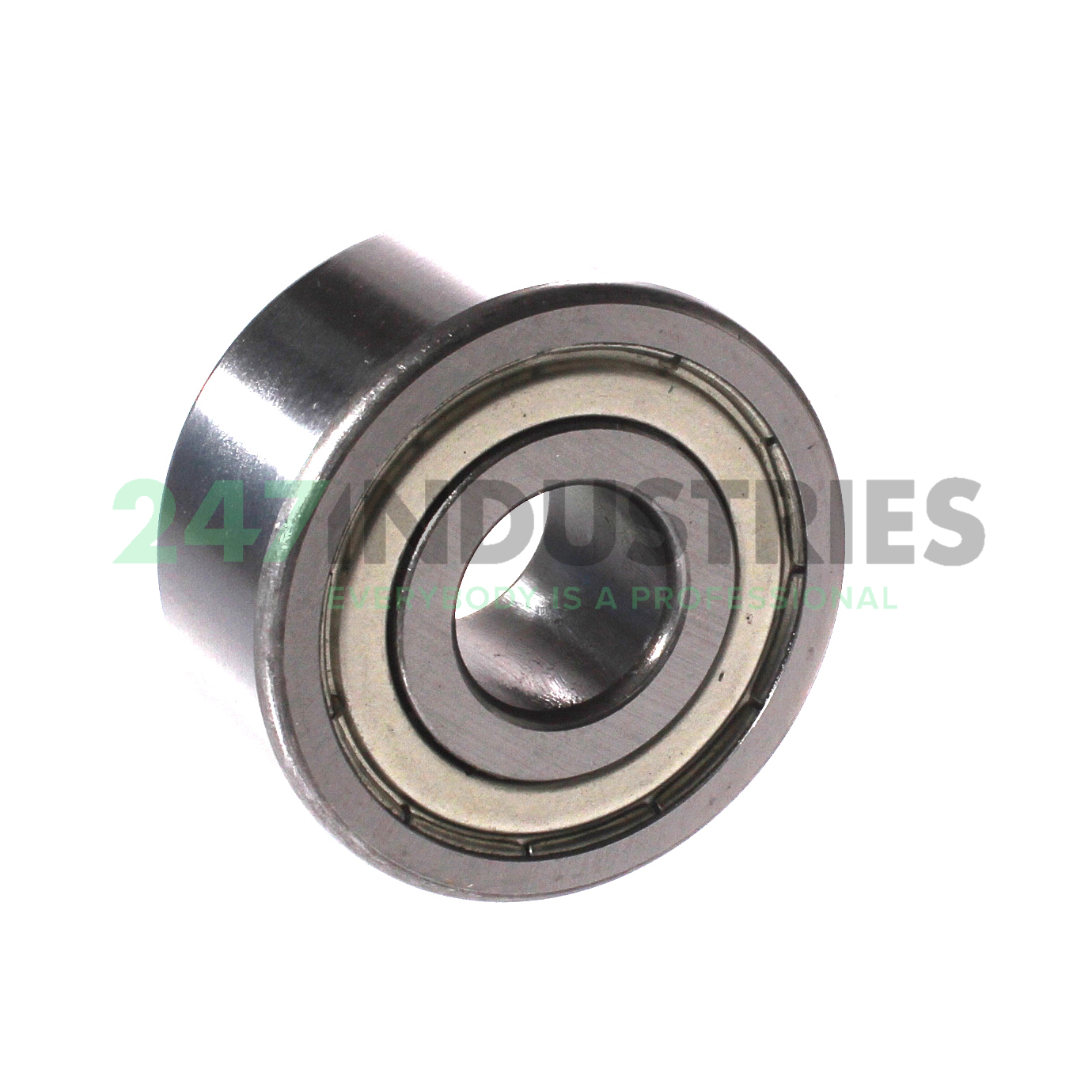

3303-B-2Z-TV NKE

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 47
3. Width (B) MM 22,2
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.874

Suffix description

1. B Design Without Filling Slots Have Contact Angles Of 32°
2. 2Z Two Metallic Shields
3. TV Polyamide Cage

Technical details

1. Availability 20 pcs
2. Brand NKE
3. Item number 3303-B-2Z-TV NKE
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.181

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
