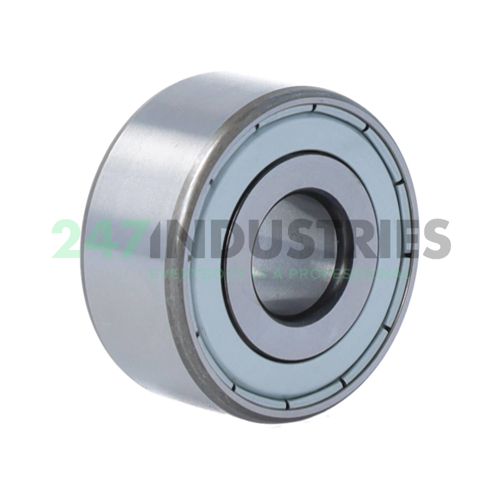

3302-BD-XL-2Z-TVH-C3 FAG

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 42
3. Width (B) MM 19
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.6535
6. Width (B) Inch 0.748
7. Width (b) mm 19

Suffix description

1. BD Modified Internal Construction, Contact Angle α=30°, Without Filling Slot
2. XL X-Life
3. 2Z Shields At Both Sides Of The Bearing
4. TVH Moulded Polyamide Cage Snap-Type, Rolling Element Riding
5. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 20 pcs
2. Brand FAG
3. Item number 3302-BD-XL-2Z-TVH-C3 FAG
4. Also known as 0639636710030

5. EAN 4012802482348
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.1277

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 10400
2. Limiting speed (n G) 13800
3. Reference speed (n ϑr) 12100
