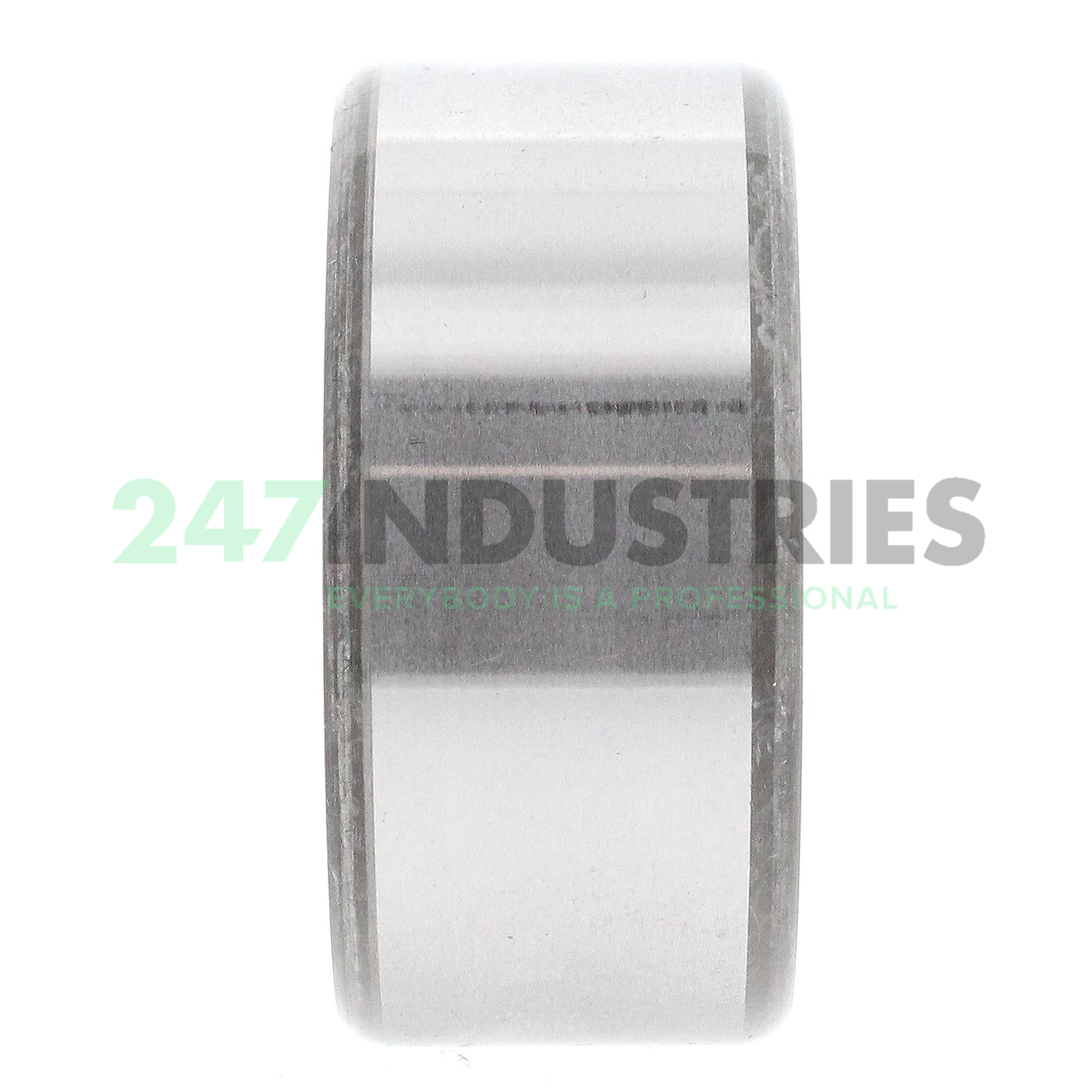

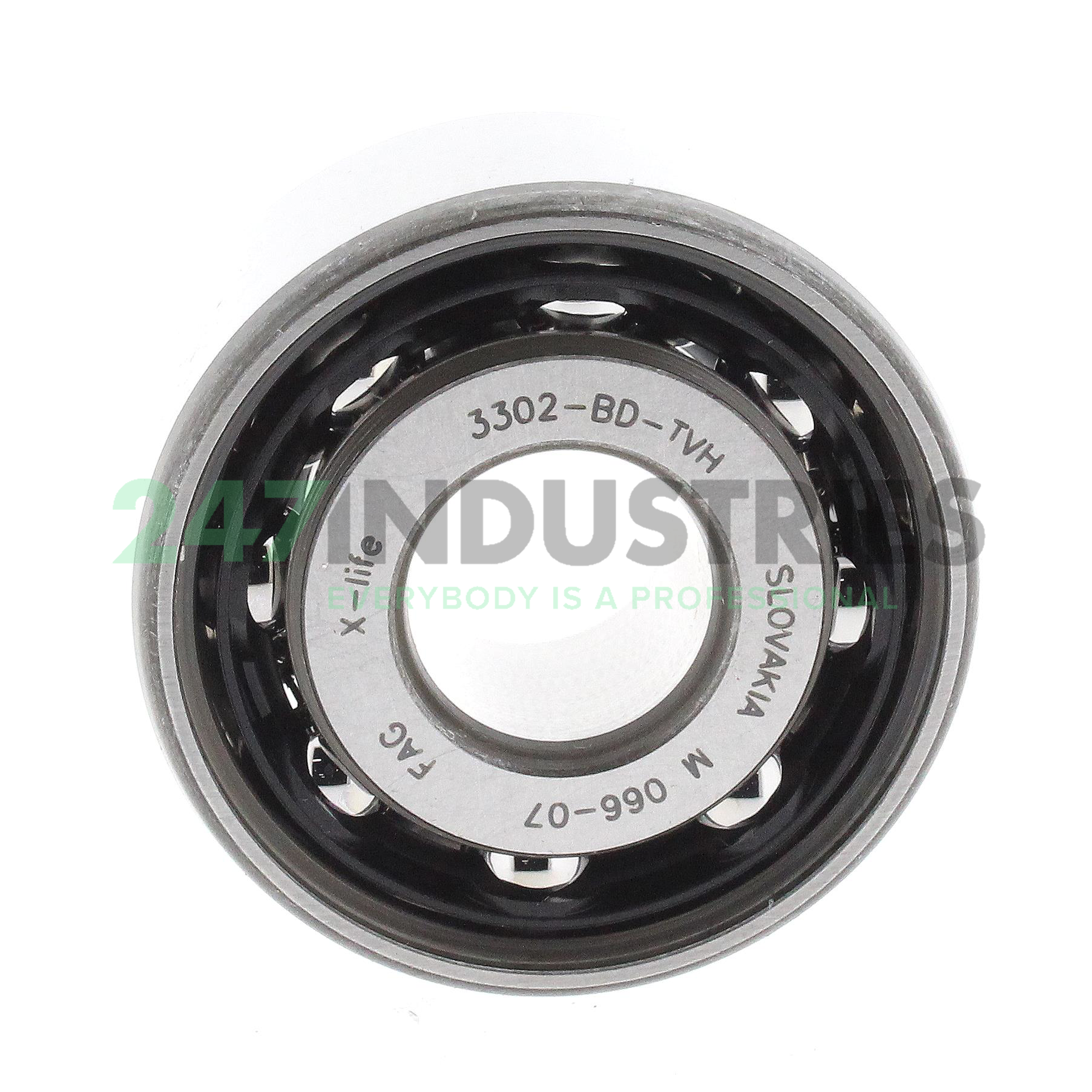

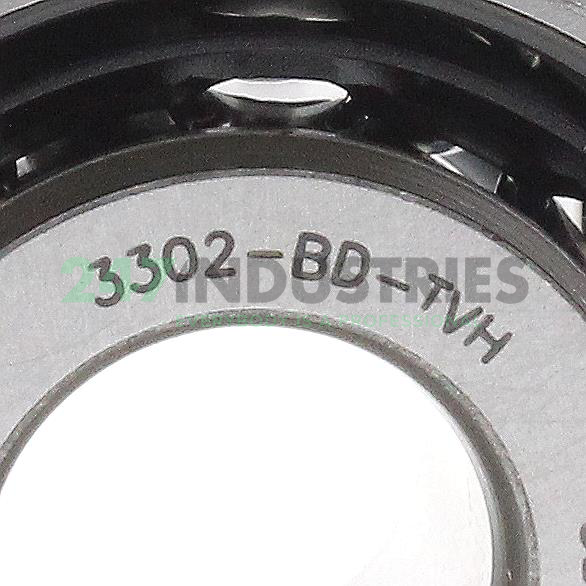

Double row angular contact ball bearing
| Stock |
|
| Brand | FAG |
| Article number | 3302-BD-TVH FAG |
| Inside diameter | 15mm |
| Outside diameter | 42mm |
| Width | 19mm |
The 3302-BD-TVH FAG is a double row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single row angular contact ball bearings in O-arrangement but is slightly narrower. Also, the contact angle and the design of the bearing rings are different. double row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.
