33007 Koyo (JTEKT)

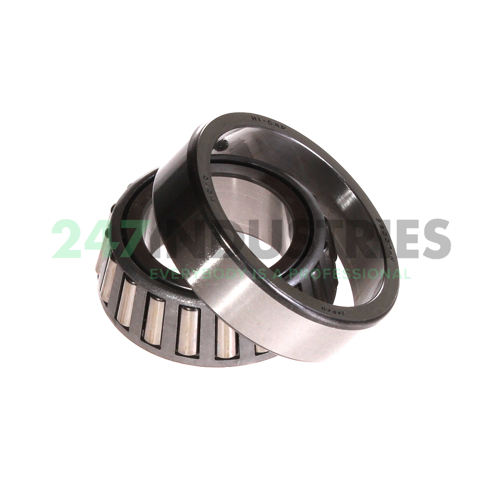

Single-row tapered roller bearing

Stock
not in stock
Brand Koyo (JTEKT)
Article number 33007 Koyo (JTEKT)
Inside diameter 35mm
Outside diameter 62mm
Width 21mm
Product description

The 33007 Koyo (JTEKT) is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.

The 33007 Koyo (JTEKT) is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.

Help with this product

Similar to: 33007 Koyo (JTEKT)

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 35
  2. Outer (D) MM 62
  3. Width (B) MM 21
  4. Inner (d) Inch 1.378
  5. Outer (D) Inch 2.4409
  6. Width (B) Inch 0.8268

Technical details

  1. Availability 0 pcs
  2. Brand Koyo (JTEKT)
  3. Item number 33007 Koyo (JTEKT)
  4. Category Tapered Roller Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 0.262

Product Properties

  1. Precision Standard Precision
