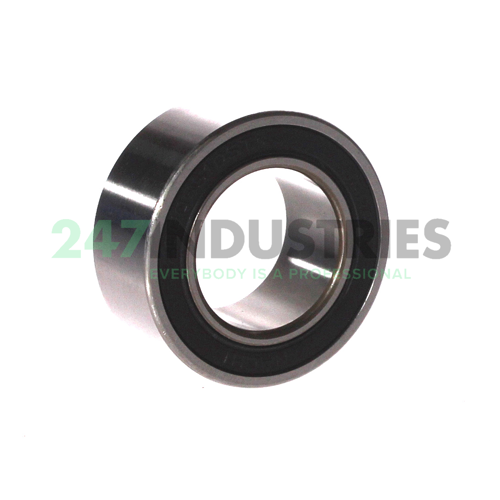

32BG05S1-2DS Nachi

All dimensions

1. Inner (d) MM 32
2. Outer (D) MM 55
3. Width (B) MM 23
4. Inner (d) Inch 1.2598
5. Outer (D) Inch 2.1654
6. Width (B) Inch 0.9055

Suffix description

1. 2DS Rubber Seals At Each Side Of The Bearing

Technical details

1. Availability 0 pcs
2. Brand Nachi
3. Item number 32BG05S1-2DS Nachi
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.18

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
