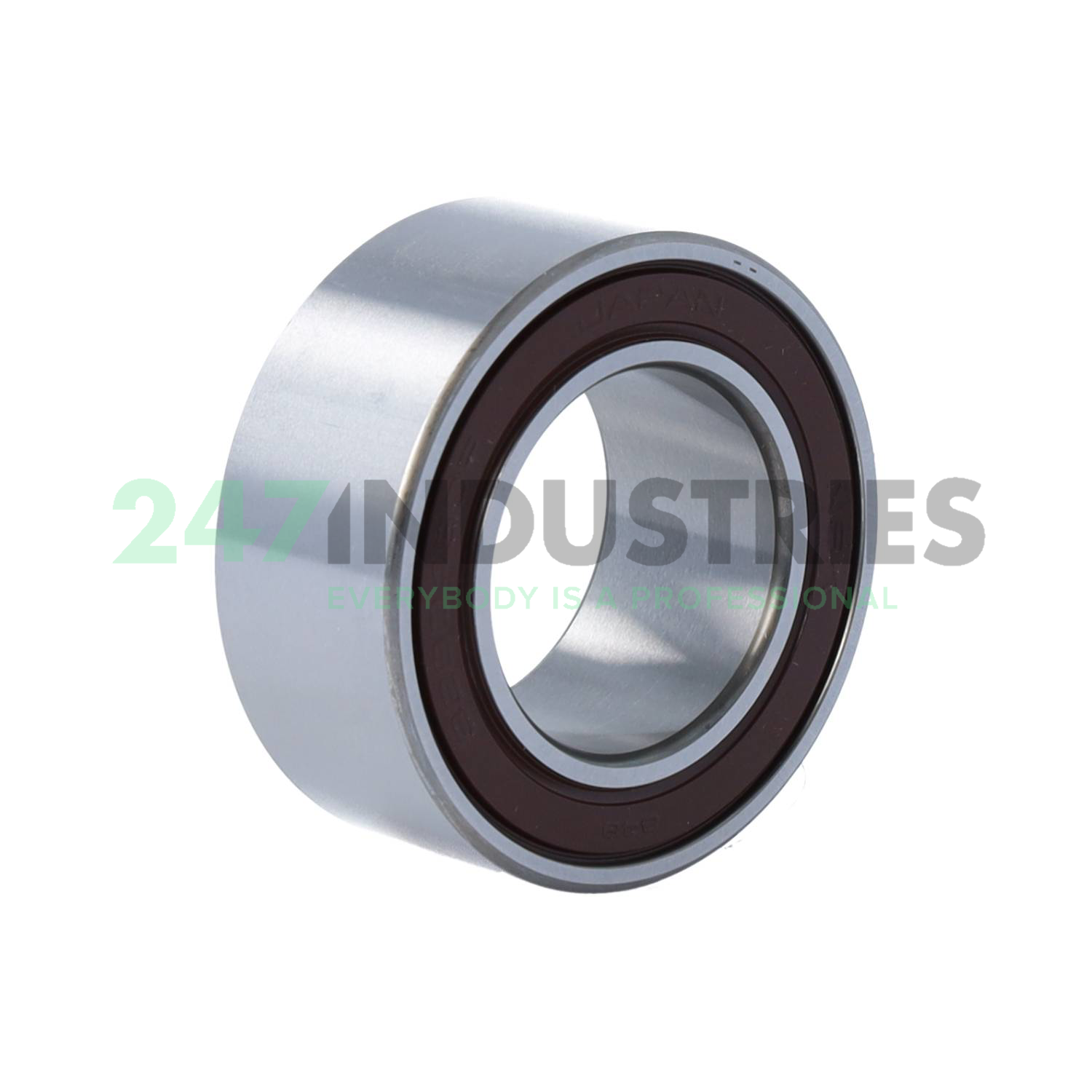

32BD45-A-1T12DDUCG21/ENSL NSK

All dimensions

1. Inner (d) MM 32
2. Outer (D) MM 55
3. Width (B) MM 23
4. Inner (d) Inch 1.2598
5. Outer (D) Inch 2.1654
6. Width (B) Inch 0.9055

Suffix description

1. A-1 Corner Form
2. T12 Glass Fibre Reinforced Cage
3. DDU Rubber Seals At Each Side Of The Bearing
4. CG21 Special Radial Clearance In Micron
5. ENS Lubricant, Temperature Range -40 ~ 160°C, Peak +180°C
6. L Amount Of Grease Is Approximately. 20% To 30%

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 32BD45-A-1T12DDUCG21/ENSL NSK
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.18

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type TB - Hard Fiber Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
