32220-XL-DF-A230-280 FAG

All dimensions

1. Inner (d) MM 100,00
2. Outer (D) MM 180,00
3. Width (B) MM 98,00
4. Inner (d) Inch 3.9370
5. Outer (D) Inch 7.0866
6. Width (B) Inch 3.8583
7. Inner ring total width (2B) mm 92,00
8. Outer ring total width (2T) mm 98,00

Suffix description

1. XL X-Life

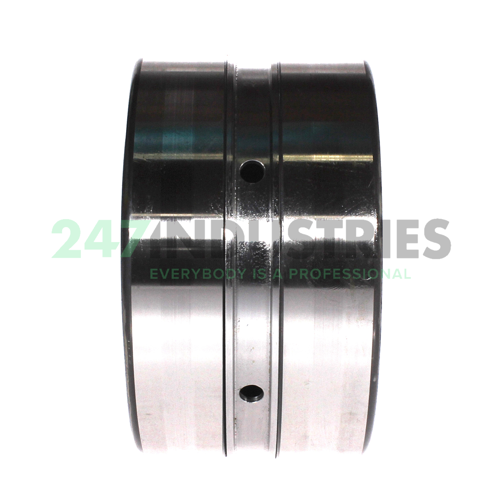

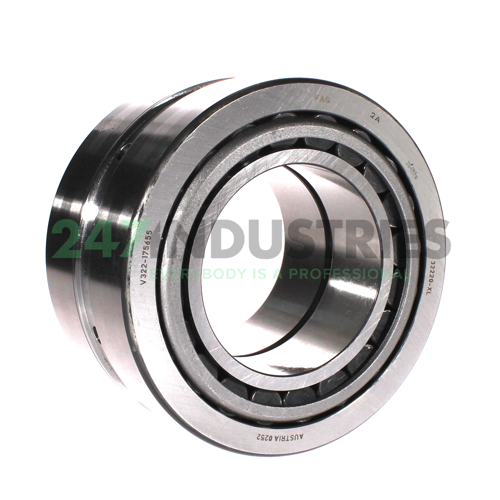

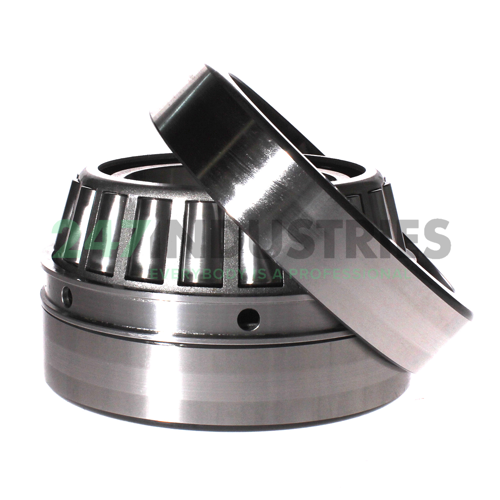

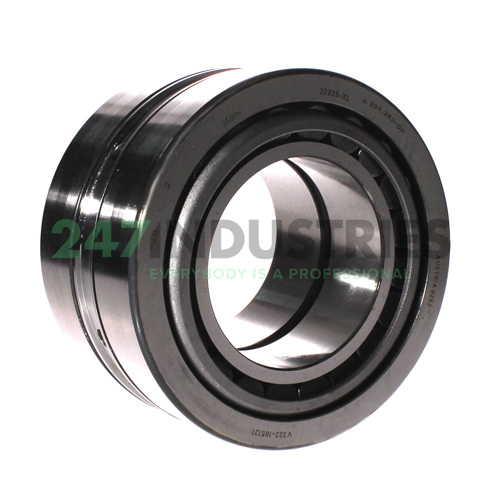

2. DF Two Tapered Roller Bearings Matched In An X Arrangement,With An Intermediate Ring Between The Outer Rings
3. A230.280 Axial Clearance In µm

Technical details

1. Availability 4 pcs
2. Brand FAG
3. Item number 32220-XL-DF-A230-280 FAG
4. Also known as 0884757354080
   32220-DF-A230-280

5. EAN 4054369349146
6. Category Tapered Roller Bearing Single Row (paired metric)

Weight and Dimensions

1. Weight (kg) 10

Product Properties

1. Tapered Roller Pair Internal Play 230-280µm

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 950000
2. Radial Dynamic Load Rating Cr (N) 680000
3. Basic static load rating, radial (C 0r) "950000.0000"
4. Limiting speed (n G) "4250.0000"
5. Thermal speed rating (n ϑr) "2260.0000"
6. ECLASS number 23-05-09-10
7. ECLASS2 number 23-05-09-10
8. Medias description Tapered roller bearing set 322..-XL-DF, X-arrangement
