3222-M-C3 FAG

Angular Contact Ball Bearing Double Row

Stock
4 pcs available
Brand FAG
Article number 3222-M-C3 FAG
Inside diameter 110mm
Outside diameter 200mm
Width 69,8mm
Product description

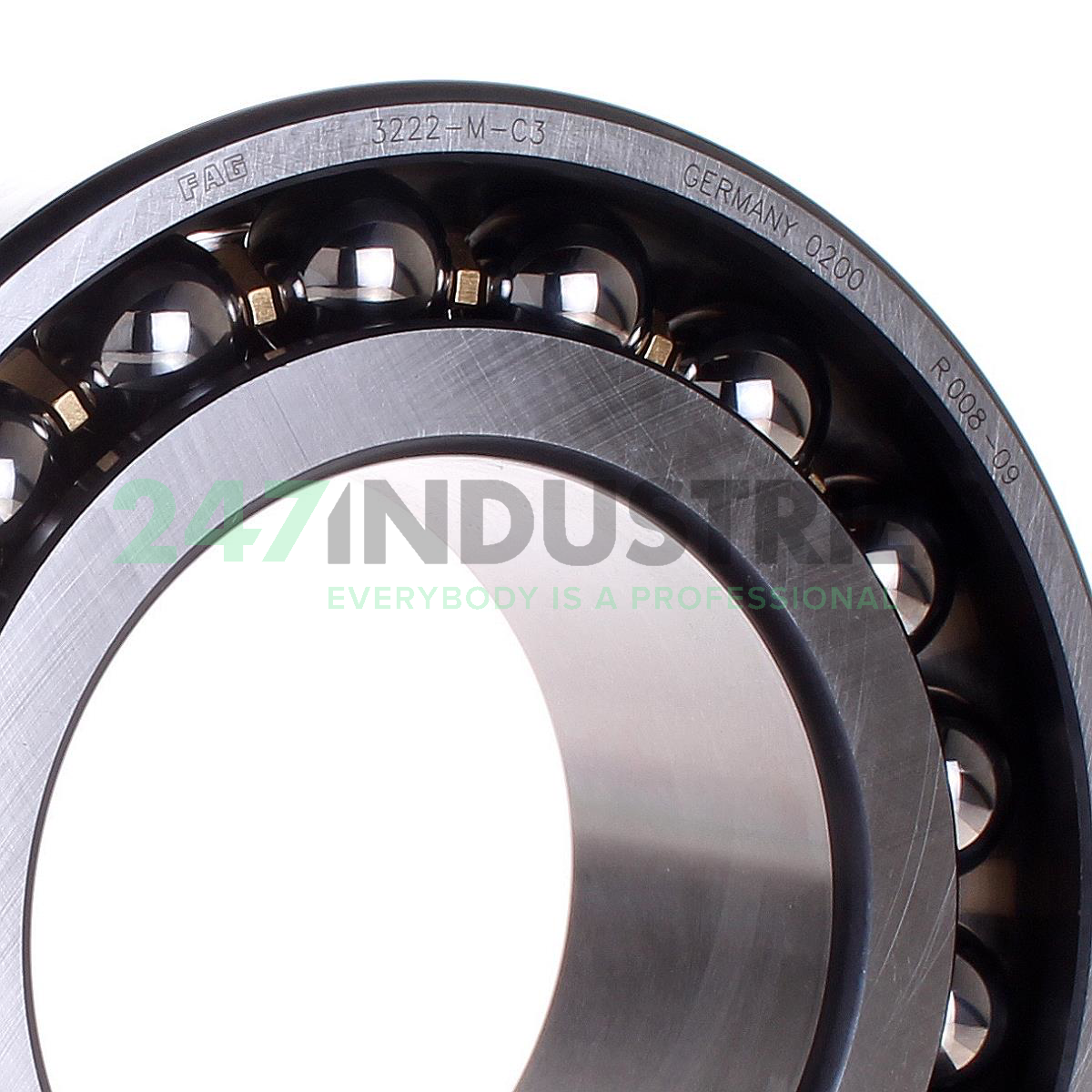

The 3222-M-C3 FAG is a double row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single row angular contact ball bearings in O-arrangement but is slightly narrower. Also, the contact angle and the design of the bearing rings are different. double row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Read more Show less
Help with this product

Downloads and links

Similar to: 3222-M-C3 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 110
  2. Outer (D) MM 200
  3. Width (B) MM 69,8
  4. Inner (d) Inch 4.3307
  5. Outer (D) Inch 7.874
  6. Width (B) Inch 2.748
  7. Width (b) mm 69,8

Suffix description

  1. M Solid Brass Cage, Ball-Guided
  2. C3 Internal Clearance Larger Than Normal

Technical details

  1. Availability 4 pcs
  2. Brand FAG
  3. Item number 3222-M-C3 FAG
  4. Also known as 0190560600030
  5. EAN 4012801196475
  6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 9.03

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal No Seal
  3. Cage Type M - Brass Cage
  4. External Modification No External Modification
  5. Radial Internal Play C3 Internal Play (Higher than Cn)
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 290000
  2. Radial Dynamic Load Rating Cr (N) 236000
  3. Limiting speed (n G) 4400
  4. Reference speed (n ϑr) 3750
  5. ECLASS number 23-05-08-03
  6. ECLASS2 number 23-05-08-03
  7. Medias description Angular contact ball bearing 32..-M, double row, 1 inner ring

Downloads and links

  1. Link to manufacturer Link to manufacturer
