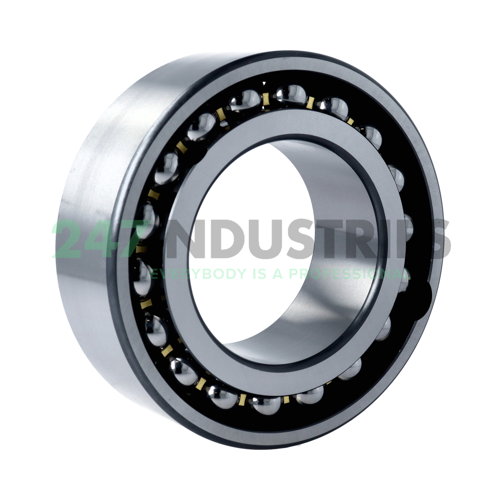

3218-M FAG

All dimensions

1. Inner (d) MM 90
2. Outer (D) MM 160
3. Width (B) MM 52,4
4. Inner (d) Inch 3.5433
5. Outer (D) Inch 6.2992
6. Width (B) Inch 2.063
7. Width (b) mm 52,4

Suffix description

1. M Solid Brass Cage, Ball-Guided

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 3218-M FAG
4. Also known as 0167124710000

5. EAN 4012801271141
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 4.19

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 172000
2. Radial Dynamic Load Rating Cr (N) 143000
3. Limiting speed (n G) 5600
4. Reference speed (n ϑr) 4550
5. ECLASS number 23-05-08-03
6. ECLASS2 number 23-05-08-03
7. Medias description Angular contact ball bearing 32..-M, double row, 1 inner ring
